IGBT Discrete | Status : Active

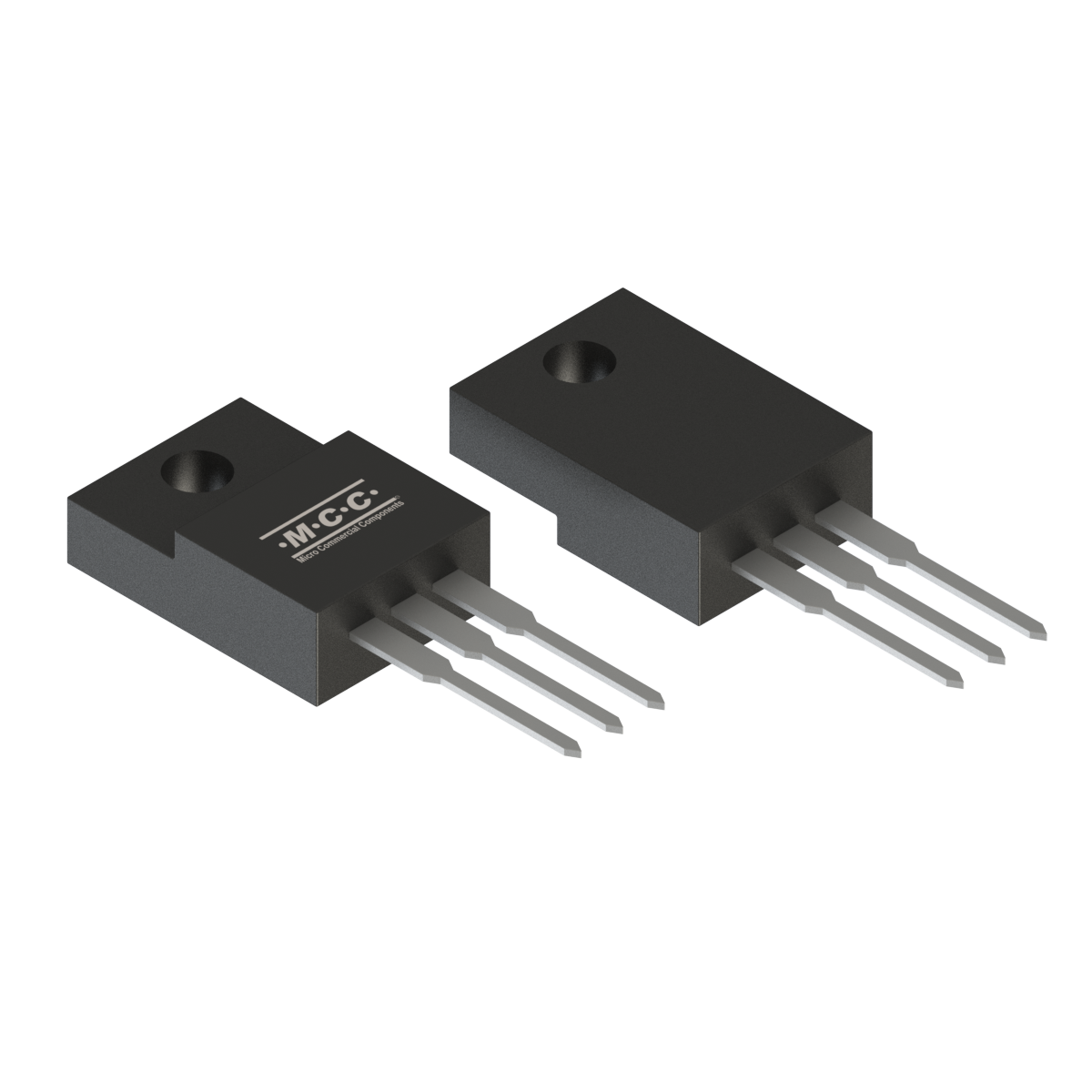

MIF10N65AT0Y

  • Package Type:ITO-220AB
  • Packing Info: Bulk:50pcs/Tube,1Kpcs/Box,5Kpcs/Carton;
  • Category:IGBT Discrete
Check Stock Add To Cart
Datasheet ECAD Model

Product Detail

Part Number Number of Functions Collector‐Emitter
Voltage
VCE (V)		 DC Collector Currentt
@ Tc=100°C
IC (A)		 Collector‐Emitter
Saturation Voltage
VCE(sat) (V)		 Turn-On
Energy@TJ=25°C
Eon (mJ)		 Turn‐Off
Energyy@TJ=25°C
Eoff (mJ)		 Junction
Temperature
Tj [max] (°C)		 Power
Rating
PD(W)
MIF10N65AT0Y Single 650 8 1.7 0.36 0.17 175 31
Part Number MIF10N65AT0Y Number of Functions Single Collector‐Emitter
Voltage
VCE (V)  650 		DC Collector Currentt
@ Tc=100°C
IC (A)  8 		Collector‐Emitter
Saturation Voltage
VCE(sat) (V)  1.7 		Turn-On
Energy@TJ=25°C
Eon (mJ)  0.36 		Turn‐Off
Energyy@TJ=25°C
Eoff (mJ)  0.17 		Junction
Temperature
Tj [max] (°C)  175 		Power
Rating
PD(W)  31

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code
MIF10N65AT0Y ITO-220AB ITO-220AB 1.6200 MIF10N65AT0Y

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
