IGBT Discrete | Status :
Active

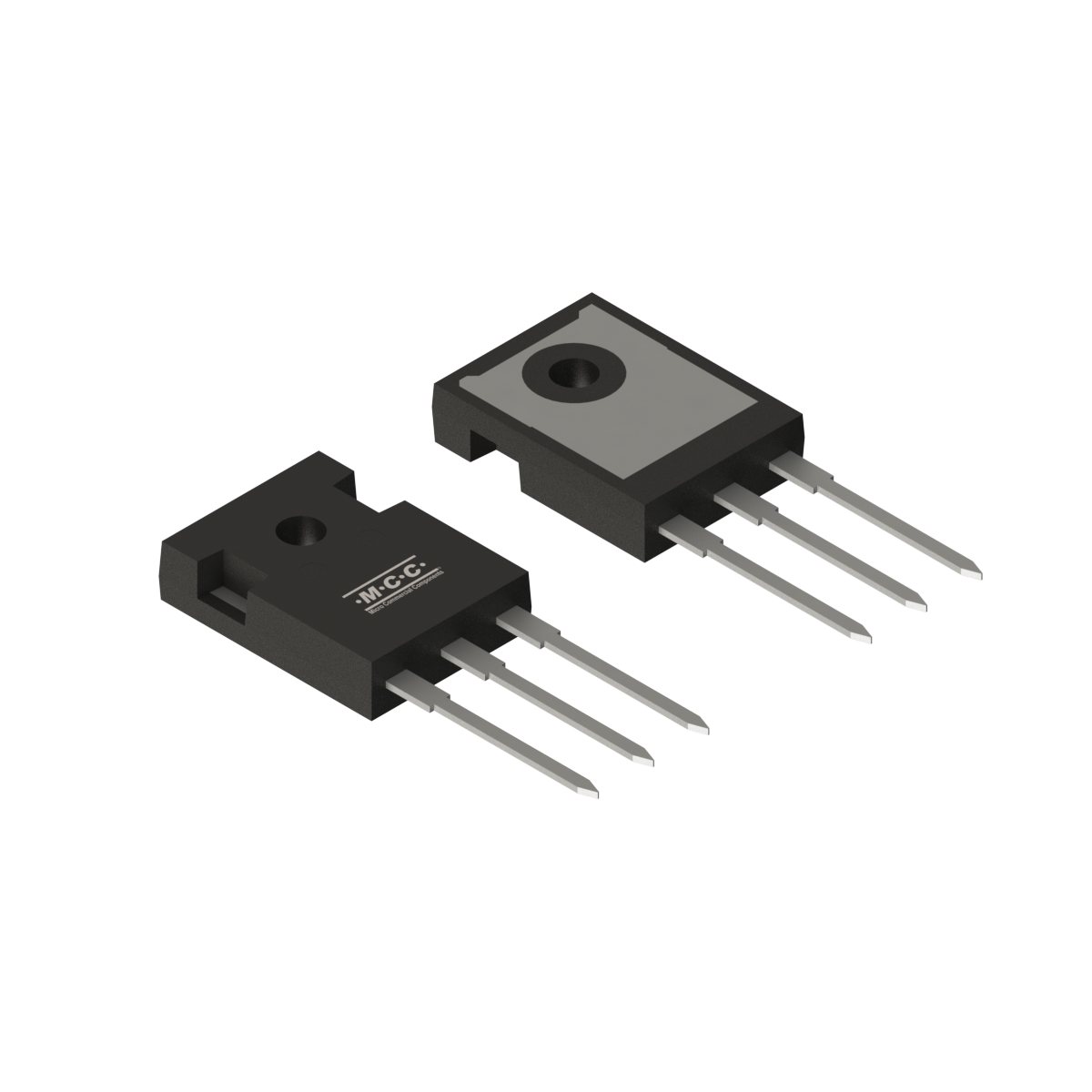

MIW25N120FA
- Package Type:TO-247AB
- Packing Info:
- Category:IGBT Discrete
Product Detail
| Part Number | Number of Functions | Collector‐Emitter Voltage VCE (V) |
DC Collector Currentt @ Tc=100°C IC (A) |
Collector‐Emitter Saturation Voltage VCE(sat) (V) |
Turn-On Energy@TJ=25°C Eon (mJ) |
Turn‐Off Energyy@TJ=25°C Eoff (mJ) |
Junction Temperature Tj [max] (°C) |
Power Rating PD(W) |
|---|---|---|---|---|---|---|---|---|
| MIW25N120FA | Single | 1200 | 25 | 2.3 | 2.8 | 2.4 | 175 | 326 |
| Part Number MIW25N120FA | Number of Functions Single |
Collector‐Emitter Voltage VCE (V) 1200 |
DC Collector Currentt @ Tc=100°C IC (A) 25 |
Collector‐Emitter Saturation Voltage VCE(sat) (V) 2.3 |
Turn-On Energy@TJ=25°C Eon (mJ) 2.8 |
Turn‐Off Energyy@TJ=25°C Eoff (mJ) 2.4 |
Junction Temperature Tj [max] (°C) 175 |
Power Rating PD(W) 326 |
Packing Information
| Part Number | Package Type | Packing Specification | Component Weight (g) | Marking Code |
|---|---|---|---|---|
| MIW25N120FA |
TO-247AB
|
TO-247AB | 5.6000 | MIW25N120FA |
