Power MOSFETS | Status : Active
Automotive

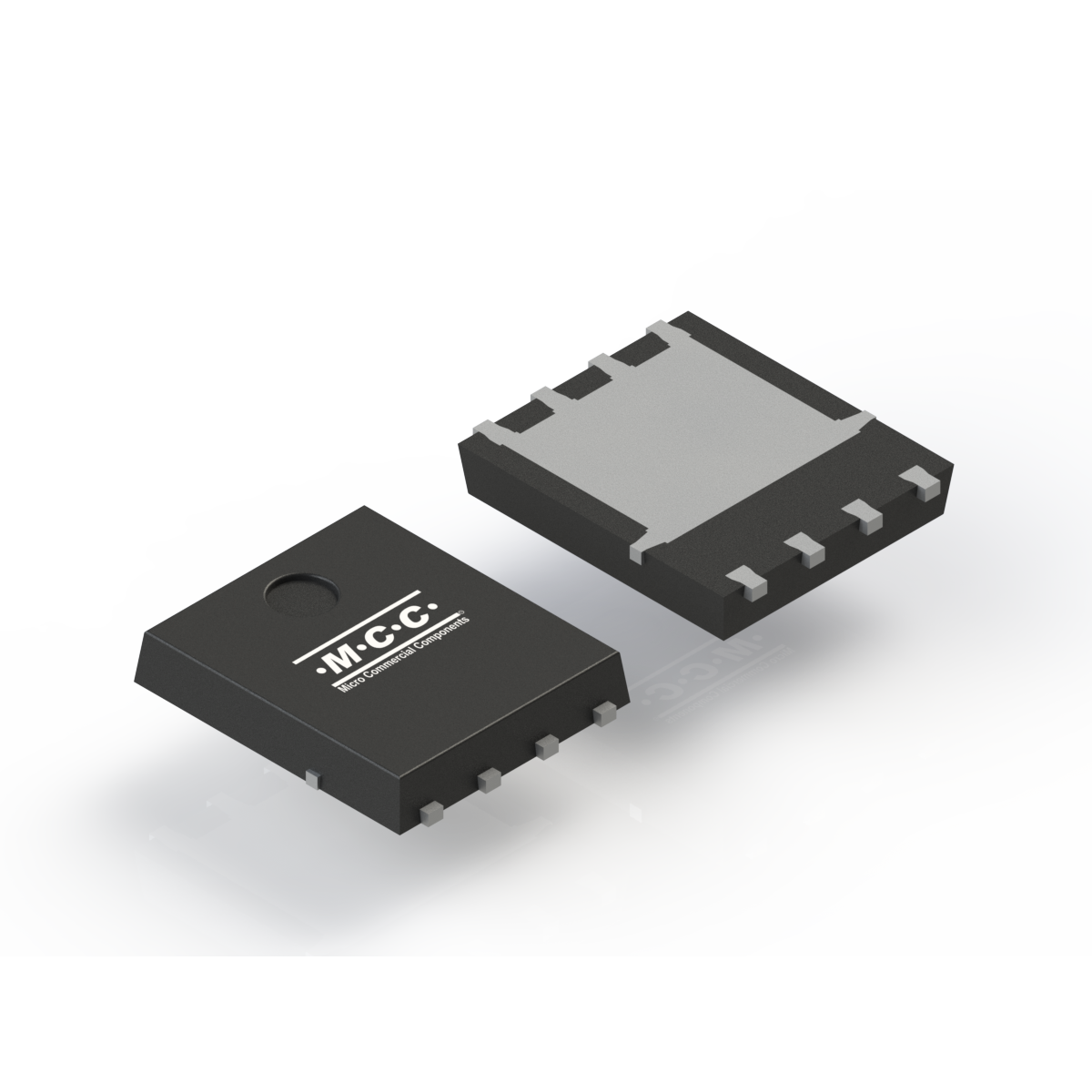

MCACL220N04YHE3

  • Package Type:DFN5060-C
  • Packing Info:Tape&Reel:5Kpcs/Reel;
  • Category:Power MOSFETS
Check Stock Add To Cart

Product Detail

Part Number Number of Functions Channel Drain-Source
Voltage
VDS (V)
Gate-Source
Voltage
VGS (V)
Drain
Current
ID (A)
Drain-Source
On-Resistance
RDS(ON)
Max
@VGS=10V (Ω)
Drain-Source
On-Resistance
RDS(ON)
Max
@VGS=4.5V (Ω)
Drain-Source
On-Resistance
RDS(ON)
Max
@VGS=2.5V (Ω)
Gate
Threshold
Voltage
VGS(th)
Min
(V)
Gate
Threshold
Voltage
VGS(th) Max
(V)
ESD
Diodes
Junction
Temperature
Tj [max]
(°C)
Single Pulsed
Avalanche
Energy
EAS(mJ)
Pulsed Drain
Current
IDM(A)
Input
Capacitance
Ciss(pF)
Output
Capacitance
Coss(pF)
Power
Rating
PD(W)
Total Gate
Charge
Qg(nC)
Gate-Drain
Charge
Qgd(nC)
MCACL220N04YHE3 Single N 40 ±20 220 0.0013 0.002 1 2.5 No 175 625 880 7216 1318 125 131 24
Part Number MCACL220N04YHE3 Number of Functions Single Channel N Drain-Source
Voltage
VDS (V)
 40
Gate-Source
Voltage
VGS (V)
 ±20
Drain
Current
ID (A)
 220
Drain-Source
On-Resistance
RDS(ON)
Max
@VGS=10V (Ω)
 0.0013
Drain-Source
On-Resistance
RDS(ON)
Max
@VGS=4.5V (Ω)
 0.002
Drain-Source
On-Resistance
RDS(ON)
Max
@VGS=2.5V (Ω)

Gate
Threshold
Voltage
VGS(th)
Min
(V)
 1
Gate
Threshold
Voltage
VGS(th) Max
(V)
 2.5
ESD
Diodes
 No
Junction
Temperature
Tj [max]
(°C)
 175
Single Pulsed
Avalanche
Energy
EAS(mJ)
 625
Pulsed Drain
Current
IDM(A)
 880

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code Packing Info
MCACL220N04YHE3 DFN5060-C DFN5060-C 0.0916 L220N04Y Tape&Reel:5Kpcs/Reel;
