Power MOSFETS | Status :
Active

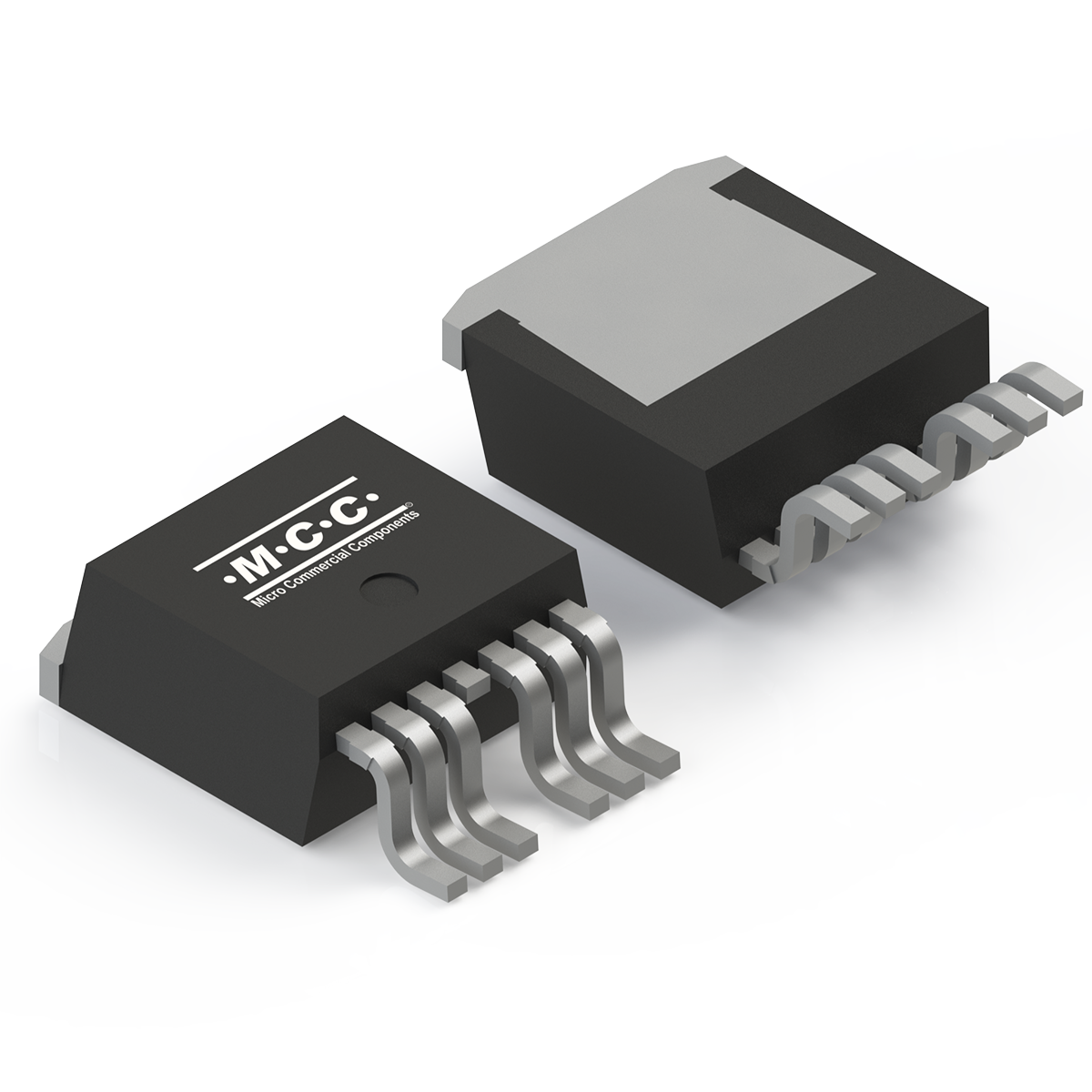

MCBS220N04Y
- Package Type:TO-263-7
- Packing Info:Tape&Reel: 800pcs/Reel;
- Category:Power MOSFETS
Product Detail
| Part Number | Number of Functions | Channel | Drain-Source Voltage VDS (V) |
Gate-Source Voltage VGS (V) |
Drain Current ID (A) |
Drain-Source On-Resistance RDS(ON) Max @VGS=10V (Ω) |
Drain-Source On-Resistance RDS(ON) Max @VGS=4.5V (Ω) |
Drain-Source On-Resistance RDS(ON) Max @VGS=2.5V (Ω) |
Gate Threshold Voltage VGS(th) Min (V) |
Gate Threshold Voltage VGS(th) Max (V) |
ESD Diodes |
Junction Temperature Tj [max] (°C) |
Single Pulsed Avalanche Energy EAS(mJ) |
Pulsed Drain Current IDM(A) |
Input Capacitance Ciss(pF) |
Output Capacitance Coss(pF) |
Power Rating PD(W) |
Total Gate Charge Qg(nC) |
Gate-Drain Charge Qgd(nC) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MCBS220N04Y | Single | N | 40 | ±20 | 220 | 0.0011 | 2 | 4 | No | 175 | 760 | 880 | 7967 | 2402 | 188 | 132 | 43 |
| Part Number MCBS220N04Y | Number of Functions Single | Channel N |
Drain-Source Voltage VDS (V) 40 |
Gate-Source Voltage VGS (V) ±20 |
Drain Current ID (A) 220 |
Drain-Source On-Resistance RDS(ON) Max @VGS=10V (Ω) 0.0011 |
Drain-Source On-Resistance RDS(ON) Max @VGS=4.5V (Ω) |
Drain-Source On-Resistance RDS(ON) Max @VGS=2.5V (Ω) |
Gate Threshold Voltage VGS(th) Min (V) 2 |
Gate Threshold Voltage VGS(th) Max (V) 4 |
ESD Diodes No |
Junction Temperature Tj [max] (°C) 175 |
Single Pulsed Avalanche Energy EAS(mJ) 760 |
Pulsed Drain Current IDM(A) 880 |
Packing Information
Download
