Power MOSFETS | Status :
Active
Automotive

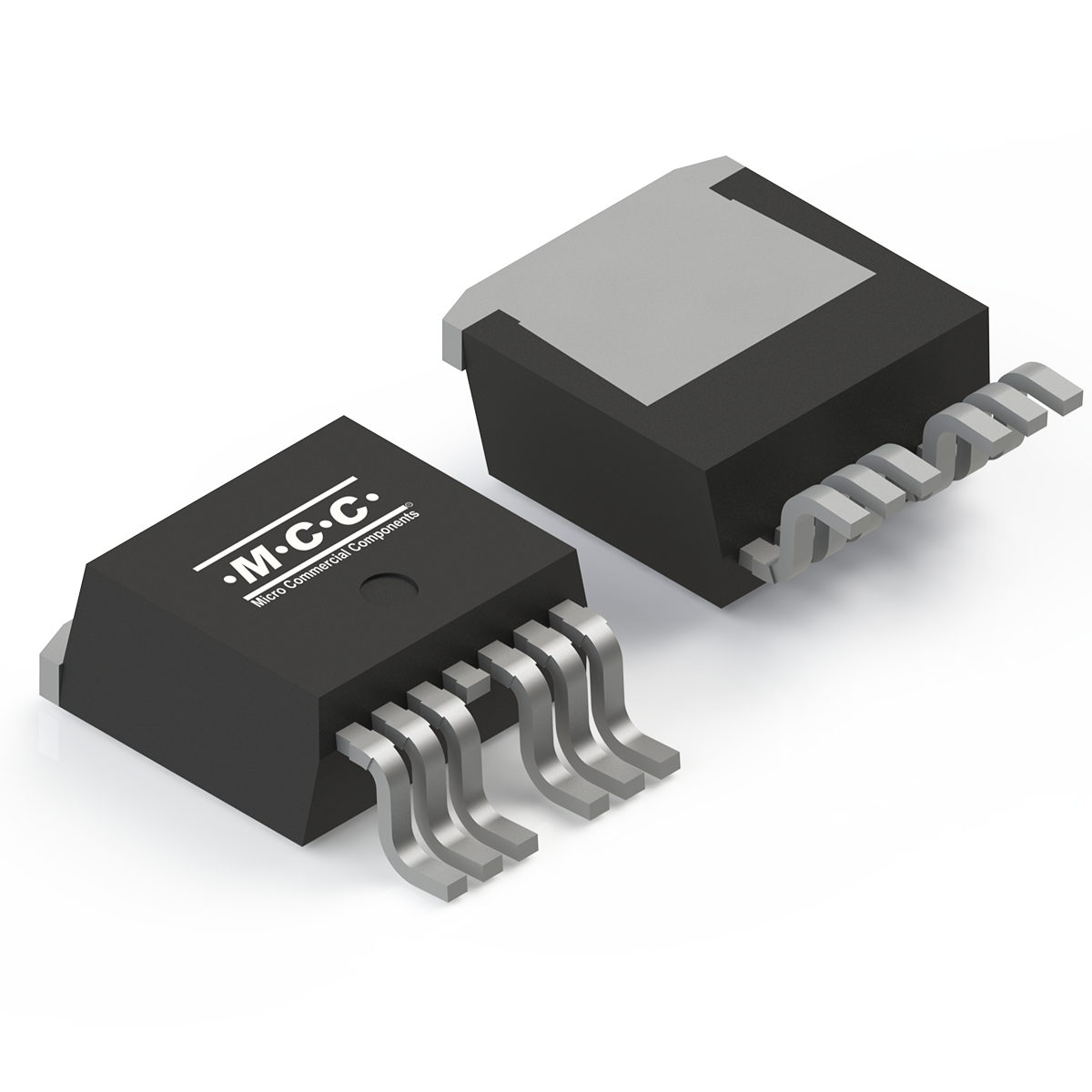

MCBS260N10YHE3
- Package Type:TO-263-7
- Packing Info:Tape&Reel: 800pcs/Reel;
- Category:Power MOSFETS
- MPN:MCBS260N10YHE3-TP
Product Detail
| Part Number | Number of Functions | Channel | Drain-Source Voltage VDS (V) |
Gate-Source Voltage VGS (V) |
Drain Current ID (A) |
Drain-Source On-Resistance RDS(ON) Max @VGS=10V (Ω) |
Drain-Source On-Resistance RDS(ON) Max @VGS=4.5V (Ω) |
Drain-Source On-Resistance RDS(ON) Max @VGS=2.5V (Ω) |
Gate Threshold Voltage VGS(th) Min (V) |
Gate Threshold Voltage VGS(th) Max (V) |
ESD Diodes |
Junction Temperature Tj [max] (°C) |
Single Pulsed Avalanche Energy EAS(mJ) |
Pulsed Drain Current IDM(A) |
Input Capacitance Ciss(pF) |
Output Capacitance Coss(pF) |
Power Rating PD(W) |
Total Gate Charge Qg(nC) |
Gate-Drain Charge Qgd(nC) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MCBS260N10YHE3 | Single | N | 100 | ±20 | 260 | 0.0018 | 2 | 4 | No | 175 | 1122 | 1040 | 10589 | 5099 | 375 | 161 | 50 |
| Part Number MCBS260N10YHE3 | Number of Functions Single | Channel N |
Drain-Source Voltage VDS (V) 100 |
Gate-Source Voltage VGS (V) ±20 |
Drain Current ID (A) 260 |
Drain-Source On-Resistance RDS(ON) Max @VGS=10V (Ω) 0.0018 |
Drain-Source On-Resistance RDS(ON) Max @VGS=4.5V (Ω) |
Drain-Source On-Resistance RDS(ON) Max @VGS=2.5V (Ω) |
Gate Threshold Voltage VGS(th) Min (V) 2 |
Gate Threshold Voltage VGS(th) Max (V) 4 |
ESD Diodes No |
Junction Temperature Tj [max] (°C) 175 |
Single Pulsed Avalanche Energy EAS(mJ) 1122 |
Pulsed Drain Current IDM(A) 1040 |
Packing Information
| Part Number | Package Type | Packing Specification | Component Weight (g) | Marking Code | Packing Info |
|---|---|---|---|---|---|
| MCBS260N10YHE3 | TO-263-7 | TO-263-7 | 1.5670 | MCBS260N10Y | Tape&Reel: 800pcs/Reel; |
