Power MOSFETS | Status : Active
Automotive

MCTL150N06YHE3

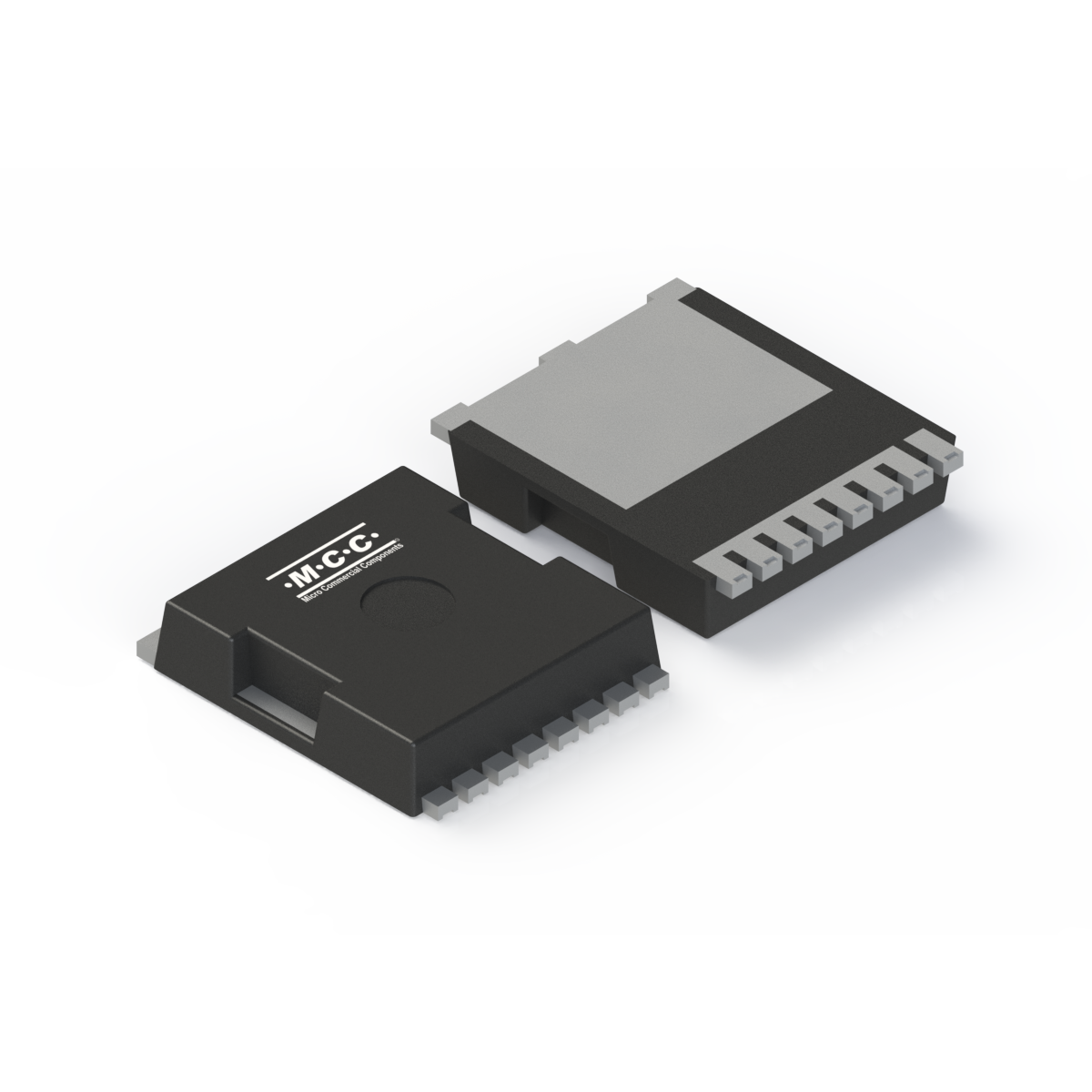

  • Package Type:TOLL-8L
  • Packing Info:Tape&Reel: 2Kpcs/Reel;
  • Category:Power MOSFETS
Check Stock Add To Cart
Datasheet ECAD Model

Product Detail

Part Number Number of Functions Channel Drain-Source
Voltage
VDS (V)		 Gate-Source
Voltage
VGS (V)		 Drain
Current
ID (A)		 Drain-Source
On-Resistance
RDS(ON)
Max
@VGS=10V (Ω)		 Drain-Source
On-Resistance
RDS(ON)
Max
@VGS=4.5V (Ω)		 Drain-Source
On-Resistance
RDS(ON)
Max
@VGS=2.5V (Ω)		 Gate
Threshold
Voltage
VGS(th)
Min
(V)		 Gate
Threshold
Voltage
VGS(th) Max
(V)		 ESD
Diodes		 Junction
Temperature
Tj [max]
(°C)		 Single Pulsed
Avalanche
Energy
EAS(mJ)		 Pulsed Drain
Current
IDM(A)		 Input
Capacitance
Ciss(pF)		 Output
Capacitance
Coss(pF)		 Power
Rating
PD(W)		 Total Gate
Charge
Qg(nC)		 Gate-Drain
Charge
Qgd(nC)
MCTL150N06YHE3 Single N 60 ±20 150 0.0024 0.004 1 2.5 No 175 242 600 3375 1210 158 55.8 15.6
Part Number MCTL150N06YHE3 Number of Functions Single Channel N Drain-Source
Voltage
VDS (V)  60 		Gate-Source
Voltage
VGS (V)  ±20 		Drain
Current
ID (A)  150 		Drain-Source
On-Resistance
RDS(ON)
Max
@VGS=10V (Ω)  0.0024 		Drain-Source
On-Resistance
RDS(ON)
Max
@VGS=4.5V (Ω)  0.004 		Drain-Source
On-Resistance
RDS(ON)
Max
@VGS=2.5V (Ω)   		Gate
Threshold
Voltage
VGS(th)
Min
(V)  1 		Gate
Threshold
Voltage
VGS(th) Max
(V)  2.5 		ESD
Diodes  No 		Junction
Temperature
Tj [max]
(°C)  175 		Single Pulsed
Avalanche
Energy
EAS(mJ)  242 		Pulsed Drain
Current
IDM(A)  600

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code Packing Info
MCTL150N06YHE3 TOLL-8L TOLL-8L 0.7920 MCTL150N06Y Tape&Reel: 2Kpcs/Reel;
