Power MOSFETS | Status : Active
Automotive

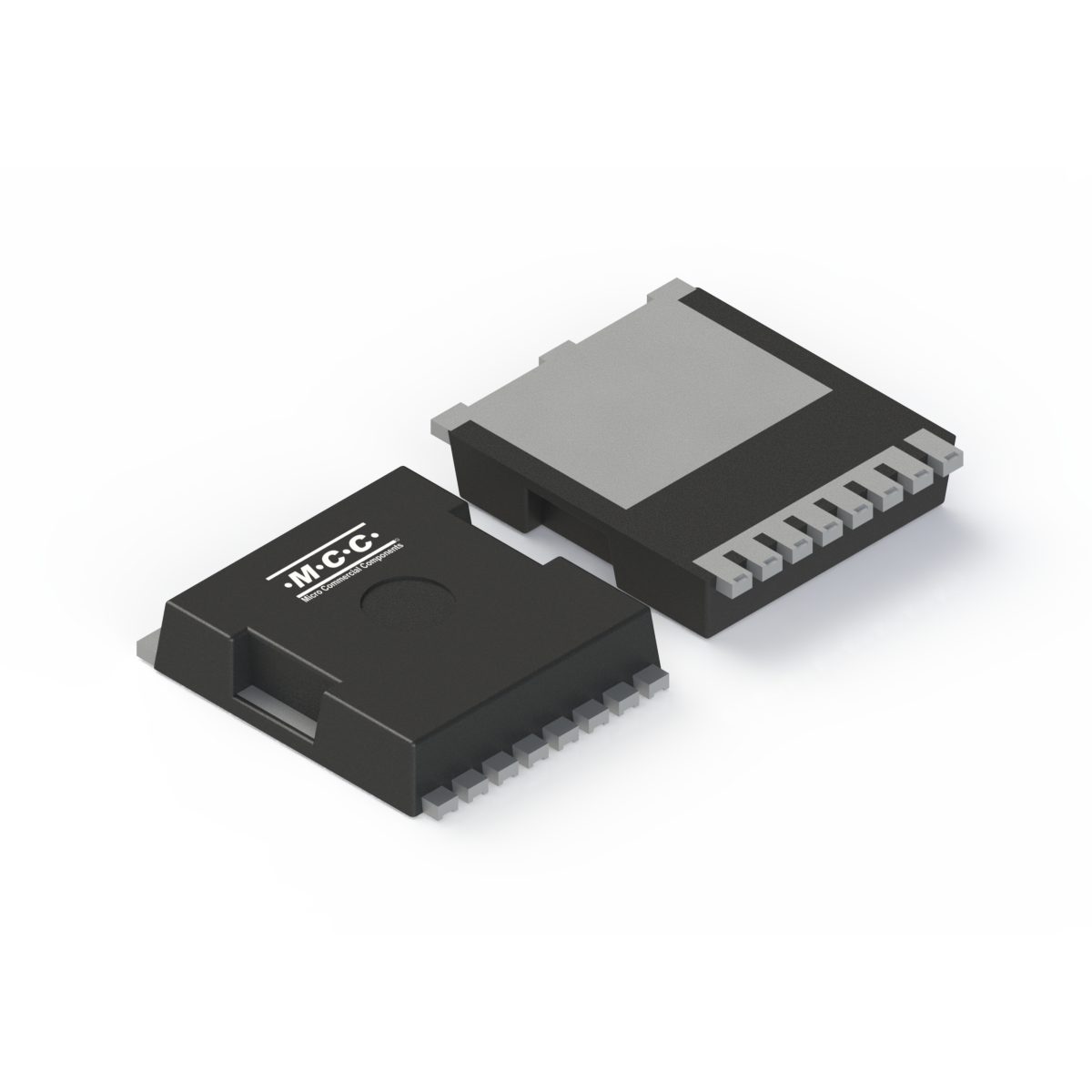

MCTL270N04YHE3

  • Package Type:TOLL-8L
  • Packing Info:Tape&Reel:2Kpcs/Reel;
  • Category:Power MOSFETS
Check Stock Add To Cart
Datasheet ECAD Model

Product Detail

Part Number Number of Functions Channel Drain-Source
Voltage
VDS (V)		 Gate-Source
Voltage
VGS (V)		 Drain
Current
ID (A)		 Drain-Source
On-Resistance
RDS(ON)
Max
@VGS=10V (Ω)		 Drain-Source
On-Resistance
RDS(ON)
Max
@VGS=4.5V (Ω)		 Drain-Source
On-Resistance
RDS(ON)
Max
@VGS=2.5V (Ω)		 Gate
Threshold
Voltage
VGS(th)
Min
(V)		 Gate
Threshold
Voltage
VGS(th) Max
(V)		 ESD
Diodes		 Junction
Temperature
Tj [max]
(°C)		 Single Pulsed
Avalanche
Energy
EAS(mJ)		 Pulsed Drain
Current
IDM(A)		 Input
Capacitance
Ciss(pF)		 Output
Capacitance
Coss(pF)		 Power
Rating
PD(W)		 Total Gate
Charge
Qg(nC)		 Gate-Drain
Charge
Qgd(nC)
MCTL270N04YHE3 Single N 40 ±20 270 0.0013 0.0028 2 4 No 175 1521 1080 8010 2479 468 135.6 43.5
Part Number MCTL270N04YHE3 Number of Functions Single Channel N Drain-Source
Voltage
VDS (V)  40 		Gate-Source
Voltage
VGS (V)  ±20 		Drain
Current
ID (A)  270 		Drain-Source
On-Resistance
RDS(ON)
Max
@VGS=10V (Ω)  0.0013 		Drain-Source
On-Resistance
RDS(ON)
Max
@VGS=4.5V (Ω)  0.0028 		Drain-Source
On-Resistance
RDS(ON)
Max
@VGS=2.5V (Ω)   		Gate
Threshold
Voltage
VGS(th)
Min
(V)  2 		Gate
Threshold
Voltage
VGS(th) Max
(V)  4 		ESD
Diodes  No 		Junction
Temperature
Tj [max]
(°C)  175 		Single Pulsed
Avalanche
Energy
EAS(mJ)  1521 		Pulsed Drain
Current
IDM(A)  1080

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code Packing Info
MCTL270N04YHE3 TOLL-8L TOLL-8L 0.7920 MCTL270N04Y Tape&Reel:2Kpcs/Reel;

Environmental Information link icon

Reliability Report Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Environmental Compliance Download
Tin Whisker Test Report MSL Halogen Free
Tin Whisker Test Report 1 Halogen Free
