Power MOSFETS | Status : Preferred

MCU055P10

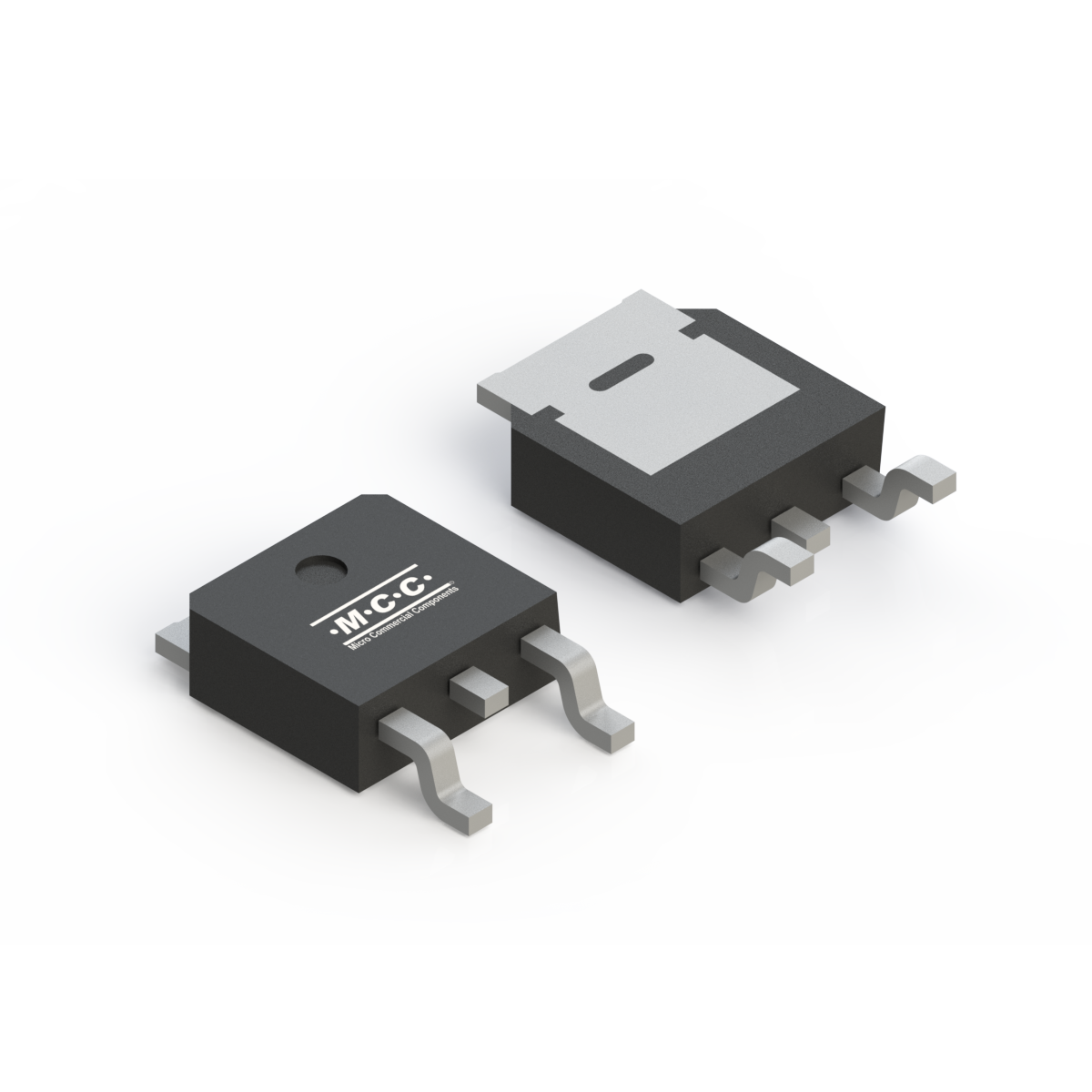

  • Package Type:DPAK
  • Packing Info:Tape&Reel: 2.5Kpcs/Reel;
  • Category:Power MOSFETS
  • MPN:MCU055P10-TP
Check Stock Add To Cart
Datasheet ECAD Model Reliability Data

Product Detail

Part Number Number of Functions Channel Drain-Source
Voltage
VDS (V)		 Gate-Source
Voltage
VGS (V)		 Drain
Current
ID (A)		 Drain-Source
On-Resistance
RDS(ON)
Max
@VGS=10V (Ω)		 Drain-Source
On-Resistance
RDS(ON)
Max
@VGS=4.5V (Ω)		 Drain-Source
On-Resistance
RDS(ON)
Max
@VGS=2.5V (Ω)		 Gate
Threshold
Voltage
VGS(th)
Min
(V)		 Gate
Threshold
Voltage
VGS(th) Max
(V)		 ESD
Diodes		 Junction
Temperature
Tj [max]
(°C)		 Single Pulsed
Avalanche
Energy
EAS(mJ)		 Pulsed Drain
Current
IDM(A)		 Input
Capacitance
Ciss(pF)		 Output
Capacitance
Coss(pF)		 Power
Rating
PD(W)		 Total Gate
Charge
Qg(nC)		 Gate-Drain
Charge
Qgd(nC)
MCU055P10 Single P -100 ±20 -28 0.055 0.064 -1.5 -2.5 No 150 118 -112 3480 145 89 71 17
Part Number MCU055P10 Number of Functions Single Channel P Drain-Source
Voltage
VDS (V)  -100 		Gate-Source
Voltage
VGS (V)  ±20 		Drain
Current
ID (A)  -28 		Drain-Source
On-Resistance
RDS(ON)
Max
@VGS=10V (Ω)  0.055 		Drain-Source
On-Resistance
RDS(ON)
Max
@VGS=4.5V (Ω)  0.064 		Drain-Source
On-Resistance
RDS(ON)
Max
@VGS=2.5V (Ω)   		Gate
Threshold
Voltage
VGS(th)
Min
(V)  -1.5 		Gate
Threshold
Voltage
VGS(th) Max
(V)  -2.5 		ESD
Diodes  No 		Junction
Temperature
Tj [max]
(°C)  150 		Single Pulsed
Avalanche
Energy
EAS(mJ)  118 		Pulsed Drain
Current
IDM(A)  -112

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code Packing Info
MCU055P10 DPAK DPAK 0.3252 MCU055P10 Tape&Reel: 2.5Kpcs/Reel;

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
MSL Halogen Free MTBF FIT
1 Halogen Free 0.00 0.0
