Power MOSFETS | Status :
Preferred

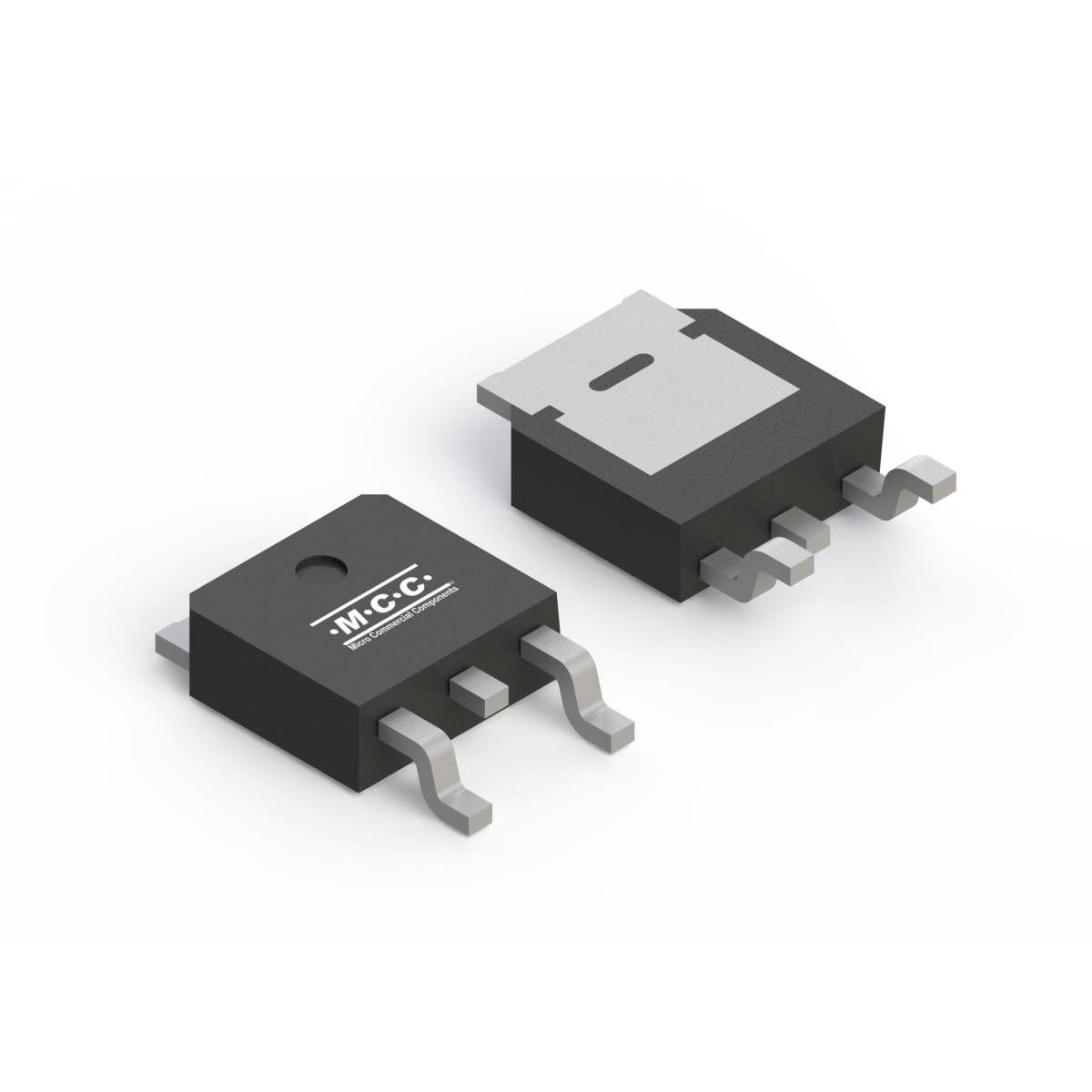

MCU085P10
- Package Type:DPAK
- Packing Info:Tape&Reel:2.5Kpcs/Reel;
- Category:Power MOSFETS
- MPN:MCU085P10-TP
Product Detail
| Part Number | Number of Functions | Channel | Drain-Source Voltage VDS (V) |
Gate-Source Voltage VGS (V) |
Drain Current ID (A) |
Drain-Source On-Resistance RDS(ON) Max @VGS=10V (Ω) |
Drain-Source On-Resistance RDS(ON) Max @VGS=4.5V (Ω) |
Drain-Source On-Resistance RDS(ON) Max @VGS=2.5V (Ω) |
Gate Threshold Voltage VGS(th) Min (V) |
Gate Threshold Voltage VGS(th) Max (V) |
ESD Diodes |
Junction Temperature Tj [max] (°C) |
Single Pulsed Avalanche Energy EAS(mJ) |
Pulsed Drain Current IDM(A) |
Input Capacitance Ciss(pF) |
Output Capacitance Coss(pF) |
Power Rating PD(W) |
Total Gate Charge Qg(nC) |
Gate-Drain Charge Qgd(nC) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MCU085P10 | Single | P | -100 | ±20 | -20 | 0.085 | 0.102 | -1.5 | -2.5 | No | 150 | 81 | -80 | 2070 | 90 | 104 | 44.4 | 5.5 |
| Part Number MCU085P10 | Number of Functions Single | Channel P |
Drain-Source Voltage VDS (V) -100 |
Gate-Source Voltage VGS (V) ±20 |
Drain Current ID (A) -20 |
Drain-Source On-Resistance RDS(ON) Max @VGS=10V (Ω) 0.085 |
Drain-Source On-Resistance RDS(ON) Max @VGS=4.5V (Ω) 0.102 |
Drain-Source On-Resistance RDS(ON) Max @VGS=2.5V (Ω) |
Gate Threshold Voltage VGS(th) Min (V) -1.5 |
Gate Threshold Voltage VGS(th) Max (V) -2.5 |
ESD Diodes No |
Junction Temperature Tj [max] (°C) 150 |
Single Pulsed Avalanche Energy EAS(mJ) 81 |
Pulsed Drain Current IDM(A) -80 |
Packing Information
Environmental Information
Download
| MSL | Halogen Free |
|---|---|
| 1 |
|
