Power MOSFETS | Status : Active

MCU7D5N10YL

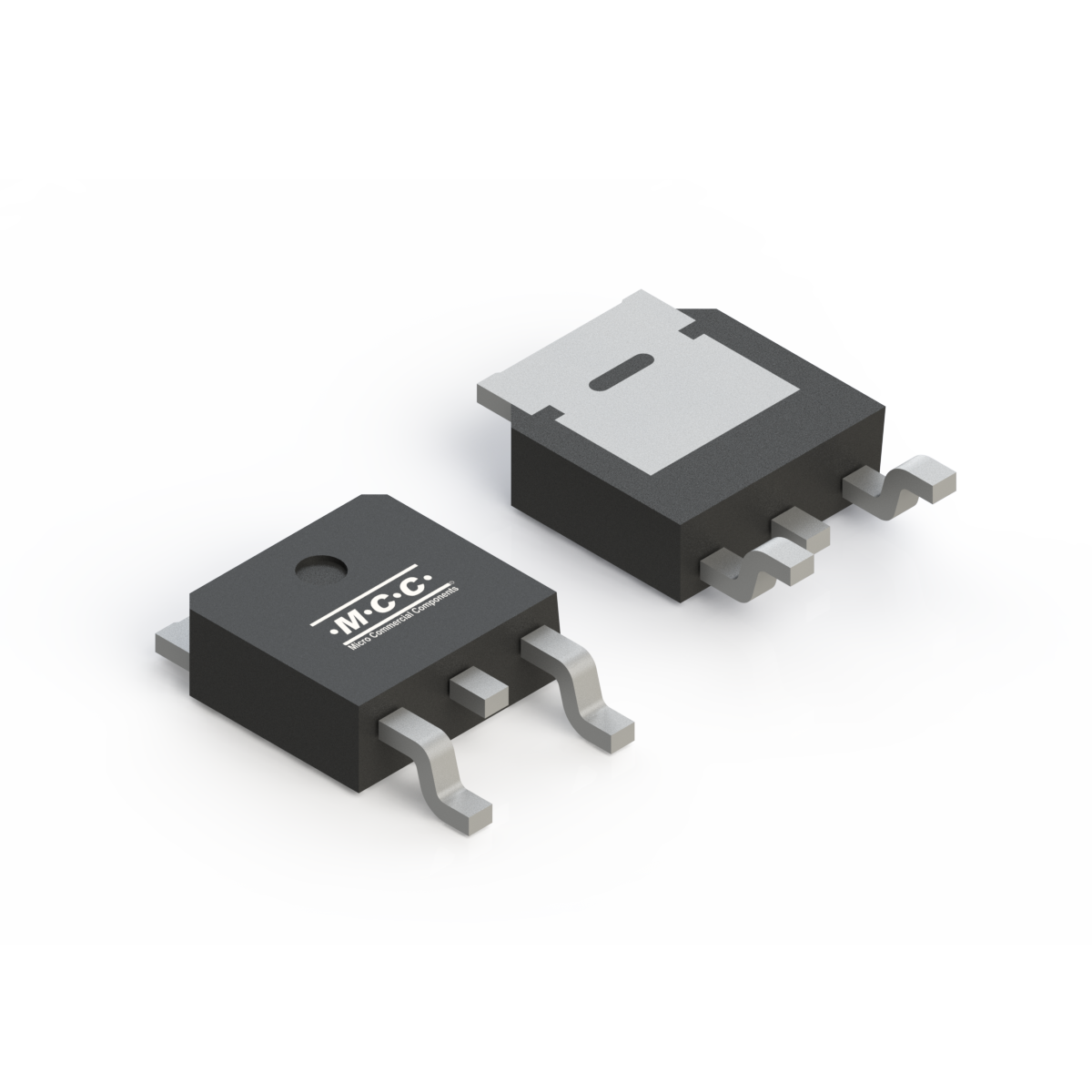

  • Package Type:DPAK
  • Packing Info:Tape&Reel:2.5Kpcs/Reel;
  • Category:Power MOSFETS
Check Stock Add To Cart

Product Detail

Part Number Number of Functions Channel Drain-Source
Voltage
VDS (V)
Gate-Source
Voltage
VGS (V)
Drain
Current
ID (A)
Drain-Source
On-Resistance
RDS(ON)
Max
@VGS=10V (Ω)
Drain-Source
On-Resistance
RDS(ON)
Max
@VGS=4.5V (Ω)
Drain-Source
On-Resistance
RDS(ON)
Max
@VGS=2.5V (Ω)
Gate
Threshold
Voltage
VGS(th)
Min
(V)
Gate
Threshold
Voltage
VGS(th) Max
(V)
ESD
Diodes
Junction
Temperature
Tj [max]
(°C)
Single Pulsed
Avalanche
Energy
EAS(mJ)
Pulsed Drain
Current
IDM(A)
Input
Capacitance
Ciss(pF)
Output
Capacitance
Coss(pF)
Power
Rating
PD(W)
Total Gate
Charge
Qg(nC)
Gate-Drain
Charge
Qgd(nC)
MCU7D5N10YL Single N 100 ±20 80 0.0075 0.0092 1.1 2.5 No 150 2850 1135 104 45 9.5
Part Number MCU7D5N10YL Number of Functions Single Channel N Drain-Source
Voltage
VDS (V)
 100
Gate-Source
Voltage
VGS (V)
 ±20
Drain
Current
ID (A)
 80
Drain-Source
On-Resistance
RDS(ON)
Max
@VGS=10V (Ω)
 0.0075
Drain-Source
On-Resistance
RDS(ON)
Max
@VGS=4.5V (Ω)
 0.0092
Drain-Source
On-Resistance
RDS(ON)
Max
@VGS=2.5V (Ω)

Gate
Threshold
Voltage
VGS(th)
Min
(V)
 1.1
Gate
Threshold
Voltage
VGS(th) Max
(V)
 2.5
ESD
Diodes
 No
Junction
Temperature
Tj [max]
(°C)
 150
Single Pulsed
Avalanche
Energy
EAS(mJ)

Pulsed Drain
Current
IDM(A)


Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code Packing Info
MCU7D5N10YL DPAK DPAK 0.3252 MCU7D5N10YL Tape&Reel:2.5Kpcs/Reel;

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
Halogen Free
Halogen Free
