Power MOSFETS | Status : Active

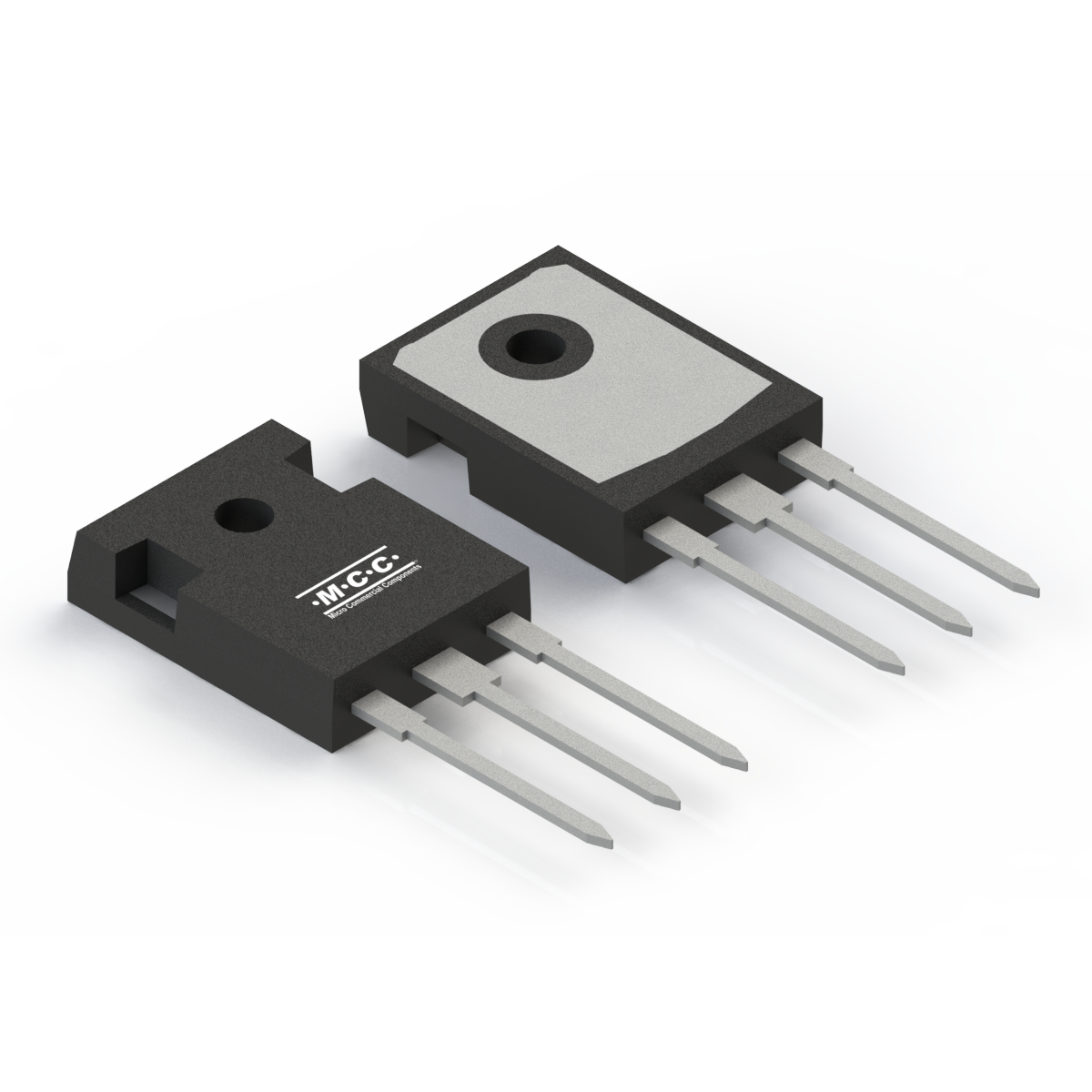

MCW075N60FH

  • Package Type:TO-247
  • Packing Info:Bulk: 360pcs/Box;
  • Category:Power MOSFETS
  • MPN:MCW075N60FH-BP
Check Stock Add To Cart
Datasheet ECAD Model

Product Detail

Part Number Number of Functions Channel Drain-Source
Voltage
VDS (V)		 Gate-Source
Voltage
VGS (V)		 Drain
Current
ID (A)		 Drain-Source
On-Resistance
RDS(ON)
Max
@VGS=10V (Ω)		 Drain-Source
On-Resistance
RDS(ON)
Max
@VGS=4.5V (Ω)		 Drain-Source
On-Resistance
RDS(ON)
Max
@VGS=2.5V (Ω)		 Gate
Threshold
Voltage
VGS(th)
Min
(V)		 Gate
Threshold
Voltage
VGS(th) Max
(V)		 ESD
Diodes		 Junction
Temperature
Tj [max]
(°C)		 Single Pulsed
Avalanche
Energy
EAS(mJ)		 Pulsed Drain
Current
IDM(A)		 Input
Capacitance
Ciss(pF)		 Output
Capacitance
Coss(pF)		 Power
Rating
PD(W)		 Total Gate
Charge
Qg(nC)		 Gate-Drain
Charge
Qgd(nC)
MCW075N60FH Single N 600 ±30 41 0.075 3 5 No 150 132 164 3202 135 312.5 81 41
Part Number MCW075N60FH Number of Functions Single Channel N Drain-Source
Voltage
VDS (V)  600 		Gate-Source
Voltage
VGS (V)  ±30 		Drain
Current
ID (A)  41 		Drain-Source
On-Resistance
RDS(ON)
Max
@VGS=10V (Ω)  0.075 		Drain-Source
On-Resistance
RDS(ON)
Max
@VGS=4.5V (Ω)   		Drain-Source
On-Resistance
RDS(ON)
Max
@VGS=2.5V (Ω)   		Gate
Threshold
Voltage
VGS(th)
Min
(V)  3 		Gate
Threshold
Voltage
VGS(th) Max
(V)  5 		ESD
Diodes  No 		Junction
Temperature
Tj [max]
(°C)  150 		Single Pulsed
Avalanche
Energy
EAS(mJ)  132 		Pulsed Drain
Current
IDM(A)  164

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code
MCW075N60FH TO-247 TO-247 5.6000 MCW075N60FH

Environmental Information link icon

Reliability Report Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Environmental Compliance Download
Tin Whisker Test Report MSL
Tin Whisker Test Report N/A
