Power MOSFETS | Status : Active

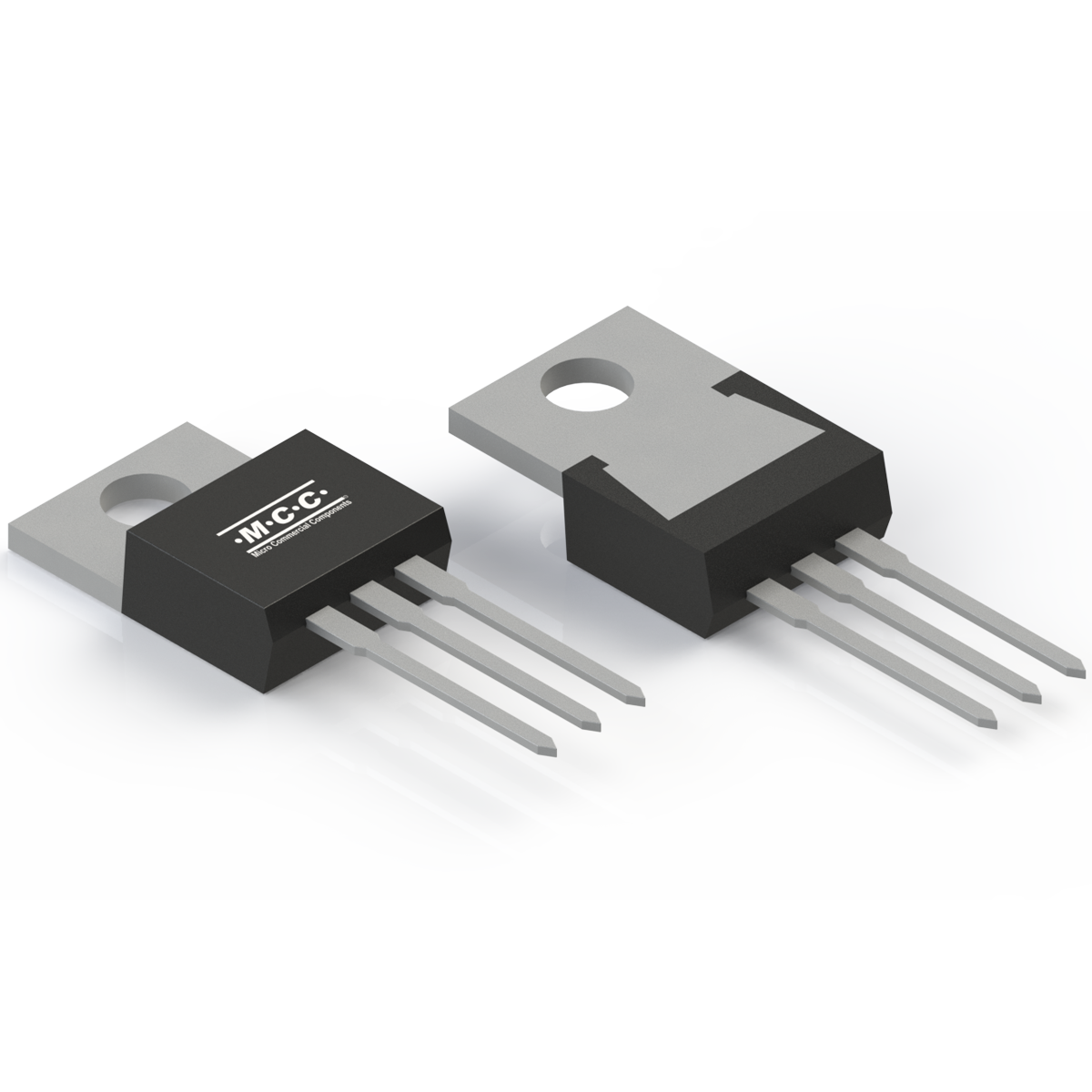

MSJP11N65A

Check Stock Add To Cart

Product Detail

Part Number Number of Functions Channel Drain-Source
Voltage
VDS (V)
Gate-Source
Voltage
VGS (V)
Drain
Current
ID (A)
Drain-Source
On-Resistance
RDS(ON)
Max
@VGS=10V (Ω)
Drain-Source
On-Resistance
RDS(ON)
Max
@VGS=4.5V (Ω)
Drain-Source
On-Resistance
RDS(ON)
Max
@VGS=2.5V (Ω)
Gate
Threshold
Voltage
VGS(th)
Min
(V)
Gate
Threshold
Voltage
VGS(th) Max
(V)
ESD
Diodes
Junction
Temperature
Tj [max]
(°C)
Single Pulsed
Avalanche
Energy
EAS(mJ)
Pulsed Drain
Current
IDM(A)
Input
Capacitance
Ciss(pF)
Output
Capacitance
Coss(pF)
Power
Rating
PD(W)
Total Gate
Charge
Qg(nC)
Gate-Drain
Charge
Qgd(nC)
MSJP11N65A Single N 650 ±30 11 0.38 2 4 No 150 142 44 774 890 83 20 10
Part Number MSJP11N65A Number of Functions Single Channel N Drain-Source
Voltage
VDS (V)
 650
Gate-Source
Voltage
VGS (V)
 ±30
Drain
Current
ID (A)
 11
Drain-Source
On-Resistance
RDS(ON)
Max
@VGS=10V (Ω)
 0.38
Drain-Source
On-Resistance
RDS(ON)
Max
@VGS=4.5V (Ω)

Drain-Source
On-Resistance
RDS(ON)
Max
@VGS=2.5V (Ω)

Gate
Threshold
Voltage
VGS(th)
Min
(V)
 2
Gate
Threshold
Voltage
VGS(th) Max
(V)
 4
ESD
Diodes
 No
Junction
Temperature
Tj [max]
(°C)
 150
Single Pulsed
Avalanche
Energy
EAS(mJ)
 142
Pulsed Drain
Current
IDM(A)
 44

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code
MSJP11N65A TO-220 TO-220 2.2400 MSJP11N65A

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
Tin Whisker Test Report
Tin Whisker Test Report
