Power MOSFETS | Status : Active

MCTL2D1N10YH

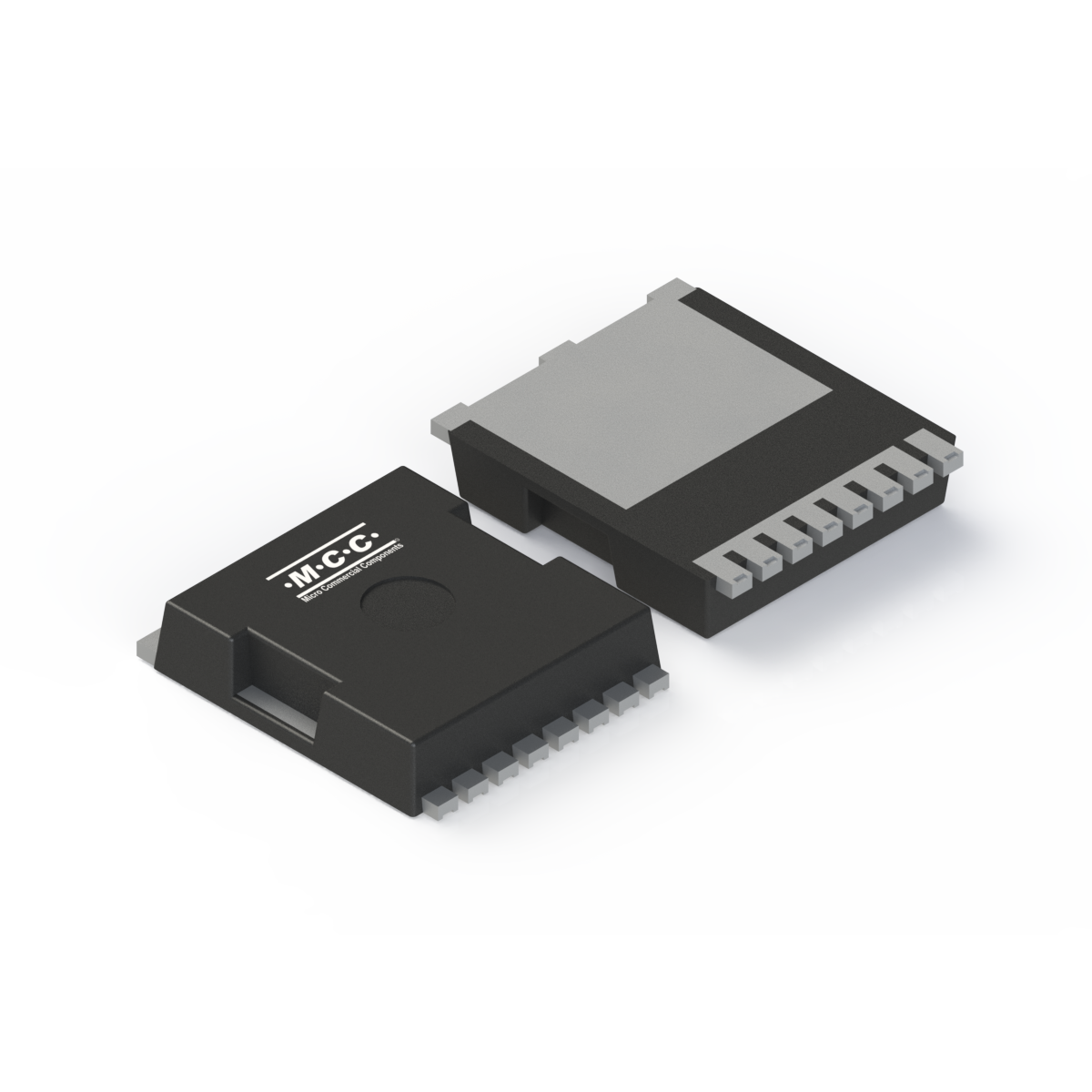

  • Package Type:TOLL-8L
  • Packing Info:Tape&Reel:2Kpcs/Reel;
  • Category:Power MOSFETS
Check Stock Add To Cart
Datasheet ECAD Model

Product Detail

Part Number Number of Functions Channel Drain-Source
Voltage
VDS (V)		 Gate-Source
Voltage
VGS (V)		 Drain
Current
ID (A)		 Drain-Source
On-Resistance
RDS(ON)
Max
@VGS=10V (Ω)		 Drain-Source
On-Resistance
RDS(ON)
Max
@VGS=4.5V (Ω)		 Drain-Source
On-Resistance
RDS(ON)
Max
@VGS=2.5V (Ω)		 Gate
Threshold
Voltage
VGS(th)
Min
(V)		 Gate
Threshold
Voltage
VGS(th) Max
(V)		 ESD
Diodes		 Junction
Temperature
Tj [max]
(°C)		 Single Pulsed
Avalanche
Energy
EAS(mJ)		 Pulsed Drain
Current
IDM(A)		 Input
Capacitance
Ciss(pF)		 Output
Capacitance
Coss(pF)		 Power
Rating
PD(W)		 Total Gate
Charge
Qg(nC)		 Gate-Drain
Charge
Qgd(nC)
MCTL2D1N10YH Single N 100 ±20 265 0.0021 2.2 3.8 No 175 1482 1060 9600 3245 375 133 17
Part Number MCTL2D1N10YH Number of Functions Single Channel N Drain-Source
Voltage
VDS (V)  100 		Gate-Source
Voltage
VGS (V)  ±20 		Drain
Current
ID (A)  265 		Drain-Source
On-Resistance
RDS(ON)
Max
@VGS=10V (Ω)  0.0021 		Drain-Source
On-Resistance
RDS(ON)
Max
@VGS=4.5V (Ω)   		Drain-Source
On-Resistance
RDS(ON)
Max
@VGS=2.5V (Ω)   		Gate
Threshold
Voltage
VGS(th)
Min
(V)  2.2 		Gate
Threshold
Voltage
VGS(th) Max
(V)  3.8 		ESD
Diodes  No 		Junction
Temperature
Tj [max]
(°C)  175 		Single Pulsed
Avalanche
Energy
EAS(mJ)  1482 		Pulsed Drain
Current
IDM(A)  1060

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code Packing Info
MCTL2D1N10YH TOLL-8L TOLL-8L 0.7920 2D1N10YH Tape&Reel:2Kpcs/Reel;

Environmental Information link icon

Reliability Report Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Environmental Compliance Download
Tin Whisker Test Report MSL Halogen Free
Tin Whisker Test Report 1 Halogen Free
