Power MOSFETS | Status : Active

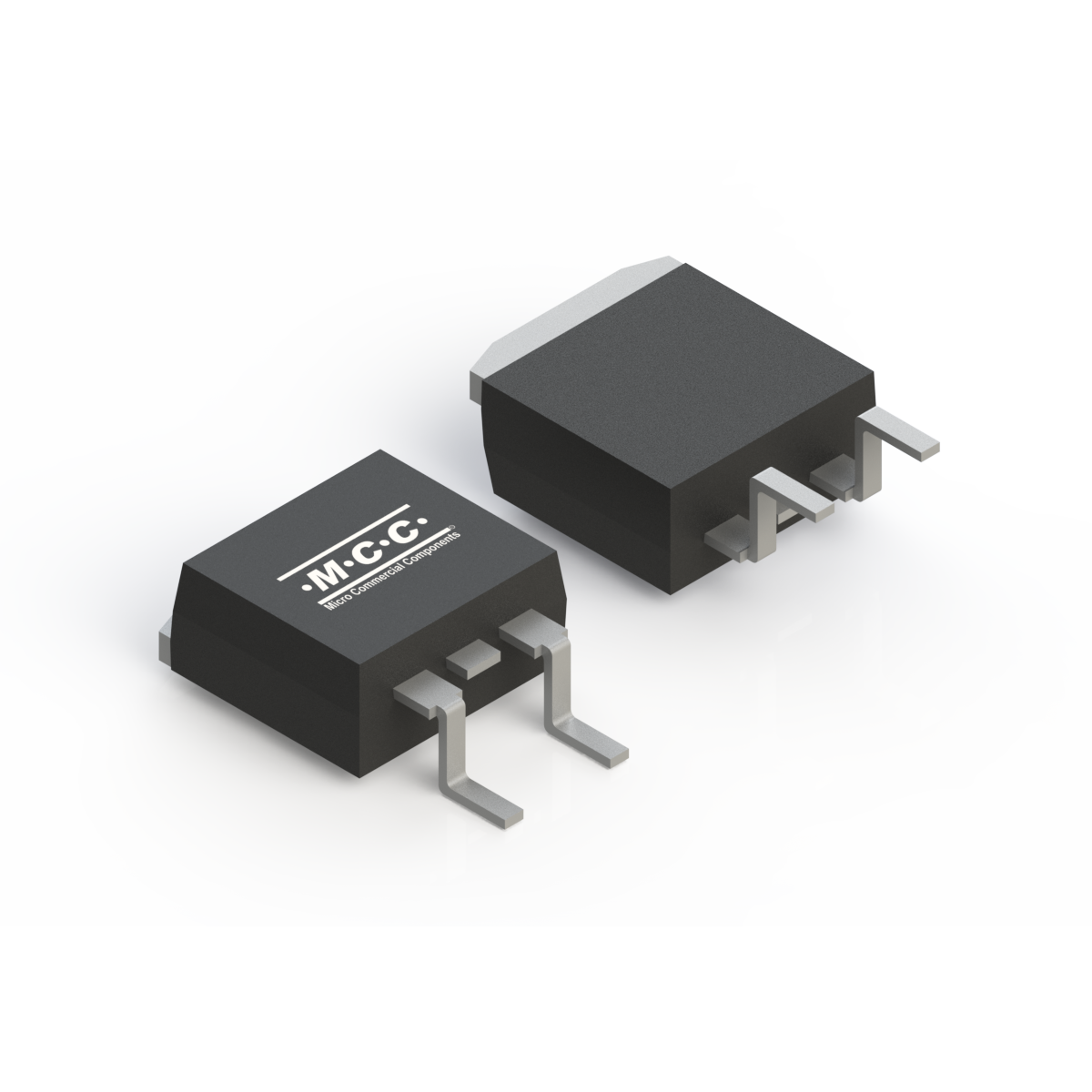

MCB220N15Y

Part Number	Number of Functions	Channel	Drain-Source Voltage V_DS (V)	Gate-Source Voltage V_GS (V)	Drain Current I_D (A)	Drain-Source On-Resistance RDS(ON) Max @VGS=10V (Ω)	Drain-Source On-Resistance RDS(ON) Max @VGS=4.5V (Ω)	Drain-Source On-Resistance RDS(ON) Max @VGS=2.5V (Ω)	Gate Threshold Voltage VGS(th) Min (V)	Gate Threshold Voltage VGS(th) Max (V)	ESD Diodes	Junction Temperature Tj [max] (°C)	Single Pulsed Avalanche Energy E_AS(mJ)	Pulsed Drain Current I_DM(A)	Input Capacitance Ciss(pF)	Output Capacitance Coss(pF)	Power Rating P_D(W)	Total Gate Charge Qg(nC)	Gate-Drain Charge Qgd(nC)
MCB220N15Y	Single	N	150	±20	220	0.0065			2	4	No	150	500	880	9177	598	312.5	155	51

Part Number MCB220N15Y

Number of Functions Single

Channel N

Drain-Source
Voltage
V_DS (V) 150

Gate-Source
Voltage
V_GS (V) ±20

Drain
Current
I_D (A) 220

Drain-Source
On-Resistance
RDS(ON)
Max
@VGS=10V (Ω) 0.0065

Drain-Source
On-Resistance
RDS(ON)
Max
@VGS=4.5V (Ω)

Drain-Source
On-Resistance
RDS(ON)
Max
@VGS=2.5V (Ω)

Gate
Threshold
Voltage
VGS(th)
Min
(V) 2

Gate
Threshold
Voltage
VGS(th) Max
(V) 4

ESD
Diodes No

Junction
Temperature
Tj [max]
(°C) 150

Single Pulsed
Avalanche
Energy
E_AS(mJ) 500

Pulsed Drain
Current
I_DM(A) 880

Part Number	Package Type	Packing Specification	Component Weight (g)	Marking Code	Packing Info
MCB220N15Y	D2-PAK	D2-PAK	1.4040	MCB220N15Y	Tape&Reel:800pcs/Reel;

Reliability Report	Material Composition Data Sheet	Soldering Profile	Environmental Compliance
Download	Download	Download	Download

MSL	Halogen Free
1
