Power MOSFETS | Status :
Active

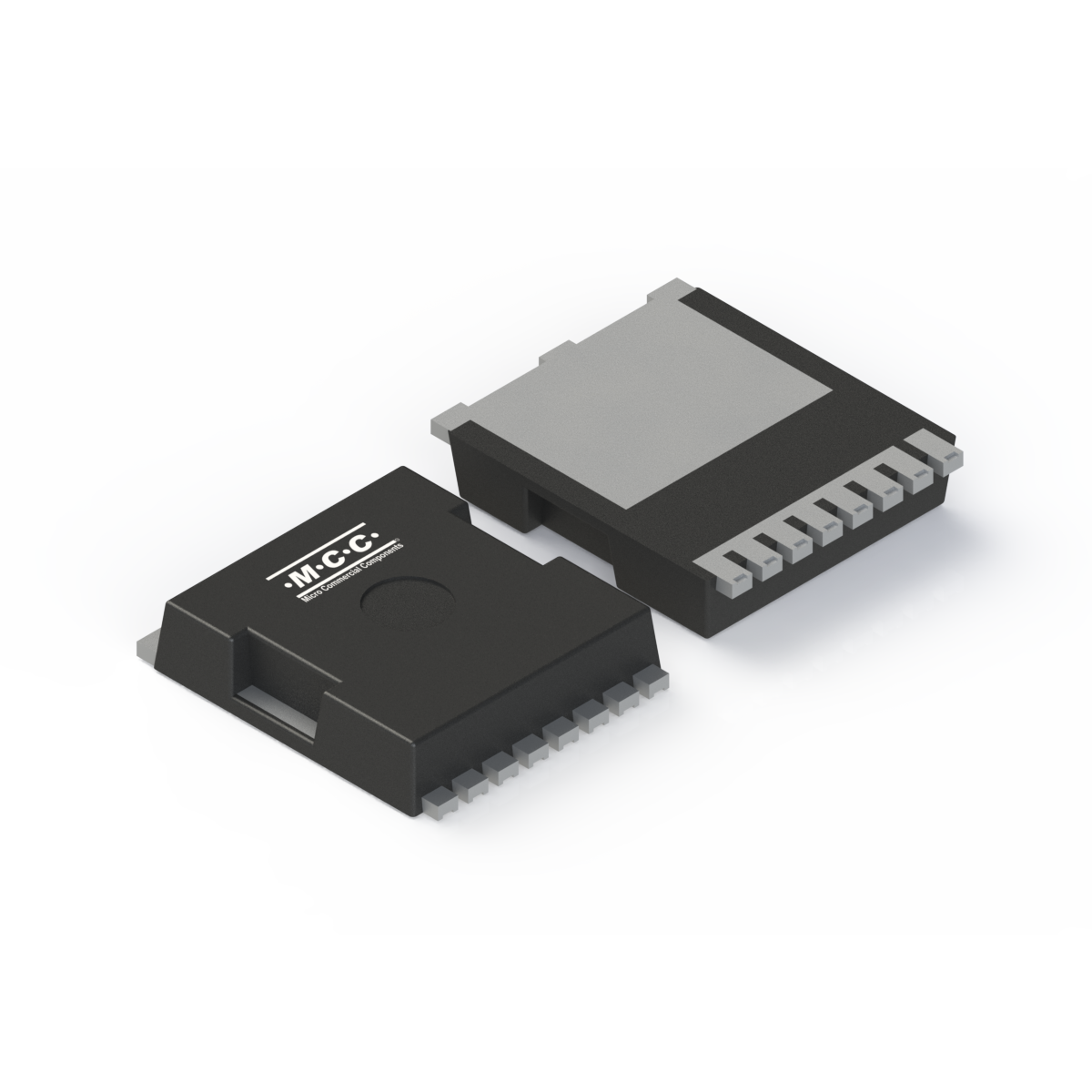

MCTL80N20Y
- Package Type:TOLL-8L
- Packing Info:Tape&Reel:2Kpcs/Reel;
- Category:Power MOSFETS
Product Detail
| Part Number | Number of Functions | Channel | Drain-Source Voltage VDS (V) |
Gate-Source Voltage VGS (V) |
Drain Current ID (A) |
Drain-Source On-Resistance RDS(ON) Max @VGS=10V (Ω) |
Drain-Source On-Resistance RDS(ON) Max @VGS=4.5V (Ω) |
Drain-Source On-Resistance RDS(ON) Max @VGS=2.5V (Ω) |
Gate Threshold Voltage VGS(th) Min (V) |
Gate Threshold Voltage VGS(th) Max (V) |
ESD Diodes |
Junction Temperature Tj [max] (°C) |
Single Pulsed Avalanche Energy EAS(mJ) |
Pulsed Drain Current IDM(A) |
Input Capacitance Ciss(pF) |
Output Capacitance Coss(pF) |
Power Rating PD(W) |
Total Gate Charge Qg(nC) |
Gate-Drain Charge Qgd(nC) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MCTL80N20Y | Single | N | 200 | ±20 | 80 | 0.013 | 2 | 4 | No | 150 | 1024 | 320 | 10387 | 2239 | 250 | 144 | 40 |
| Part Number MCTL80N20Y | Number of Functions Single | Channel N |
Drain-Source Voltage VDS (V) 200 |
Gate-Source Voltage VGS (V) ±20 |
Drain Current ID (A) 80 |
Drain-Source On-Resistance RDS(ON) Max @VGS=10V (Ω) 0.013 |
Drain-Source On-Resistance RDS(ON) Max @VGS=4.5V (Ω) |
Drain-Source On-Resistance RDS(ON) Max @VGS=2.5V (Ω) |
Gate Threshold Voltage VGS(th) Min (V) 2 |
Gate Threshold Voltage VGS(th) Max (V) 4 |
ESD Diodes No |
Junction Temperature Tj [max] (°C) 150 |
Single Pulsed Avalanche Energy EAS(mJ) 1024 |
Pulsed Drain Current IDM(A) 320 |
Packing Information
Environmental Information
Download
| Tin Whisker Test Report | MSL | Halogen Free |
|---|---|---|
|
1 |
|
