Small Signal MOSFETS | Status : Active

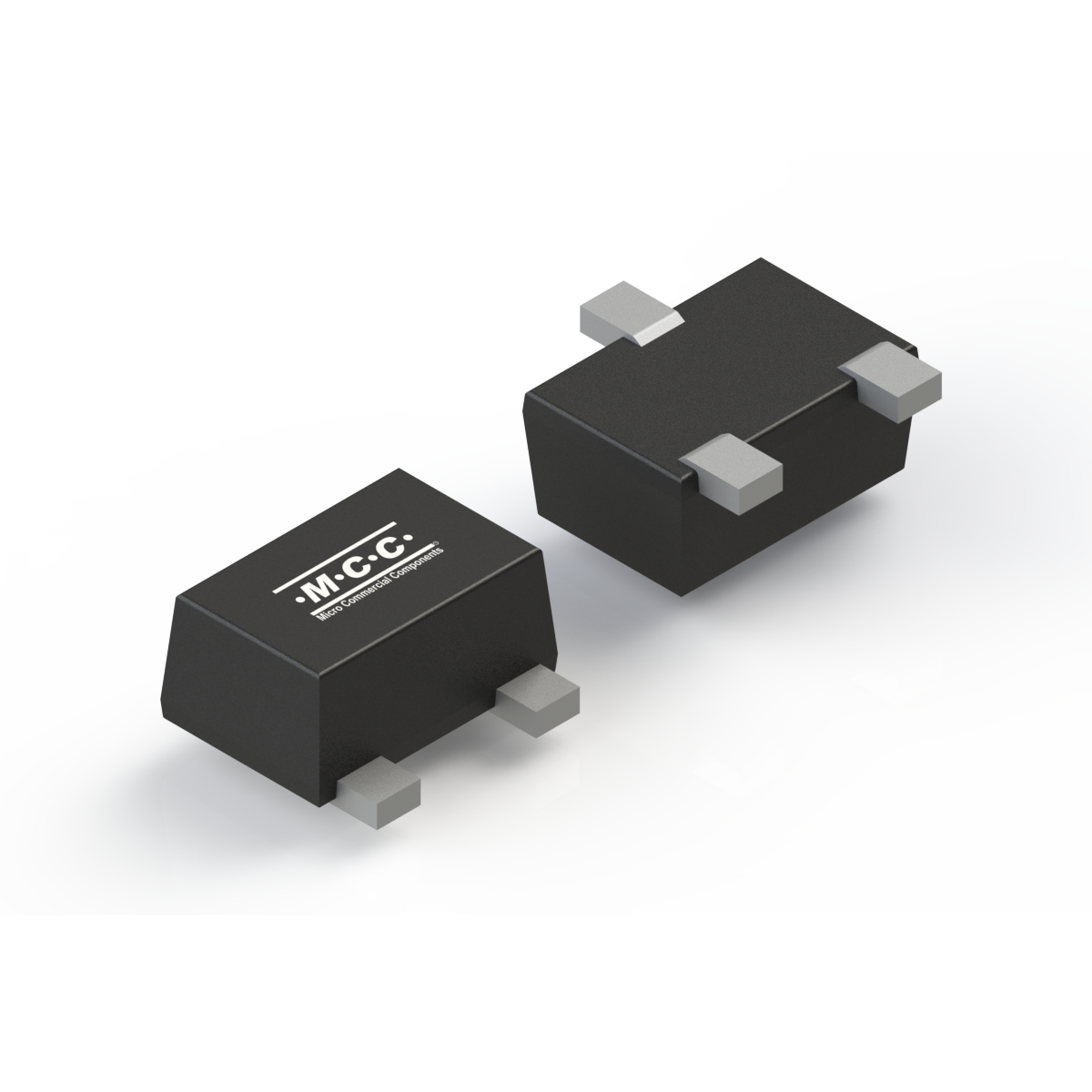

2N7002KM

Part Number	Number of Functions	Channel	Drain-Source Voltage V_DS (V)	Gate-Source Voltage V_GS (V)	Drain Current I_D (A)	RDS(ON) Max @VGS=10V (Ω)	RDS(ON) Max @VGS=4.5V (Ω)	RDS(ON) Max @VGS=2.5V (Ω)	Gate Threshold Voltage VGS(th) Min (V)	Gate Threshold Voltage VGS(th) Max (V)	ESD Diodes	Junction Temperature Tj [max] (°C)	Input Capacitance Ciss(pF)	Output Capacitance Coss(pF)	Power Rating P_D(W)	Total Gate Charge Qg(nC)	Gate-Drain Charge Qgd(nC)
2N7002KM	Single	N	60	±20	0.34	4	4.5		1	2.5	Yes	150	15.6	3	0.275	0.88	0.25

Part Number 2N7002KM

Number of Functions Single

Channel N

Drain-Source
Voltage
V_DS (V) 60

Gate-Source
Voltage
V_GS (V) ±20

Drain
Current
I_D (A) 0.34

RDS(ON)
Max
@VGS=10V
(Ω) 4

RDS(ON)
Max
@VGS=4.5V
(Ω) 4.5

RDS(ON)
Max
@VGS=2.5V
(Ω)

Gate
Threshold
Voltage
VGS(th) Min
(V) 1

Gate
Threshold
Voltage
VGS(th) Max
(V) 2.5

ESD
Diodes Yes

Junction
Temperature
Tj [max]
(°C) 150

Part Number	Package Type	Packing Specification	Component Weight (g)	Marking Code	Packing Info
2N7002KM	SOT-723	SOT-723	0.0010	72K	Tape&Reel: 8Kpcs/Reel,;

Reliability Report	Material Composition Data Sheet	Soldering Profile	Environmental Compliance
Download	Download	Download	Download

Tin Whisker Test Report	Halogen Free

ECN/PCN No#	Title	PDF	Issued Date
062121-1	Add a new foundry source for 2N7002K series products		06/21/2021
121420-1	MCC will add a new foundry source for 2N7002/2N7002K series products		12/14/2020
