Small Signal MOSFETS | Status :
Active
MCM1567

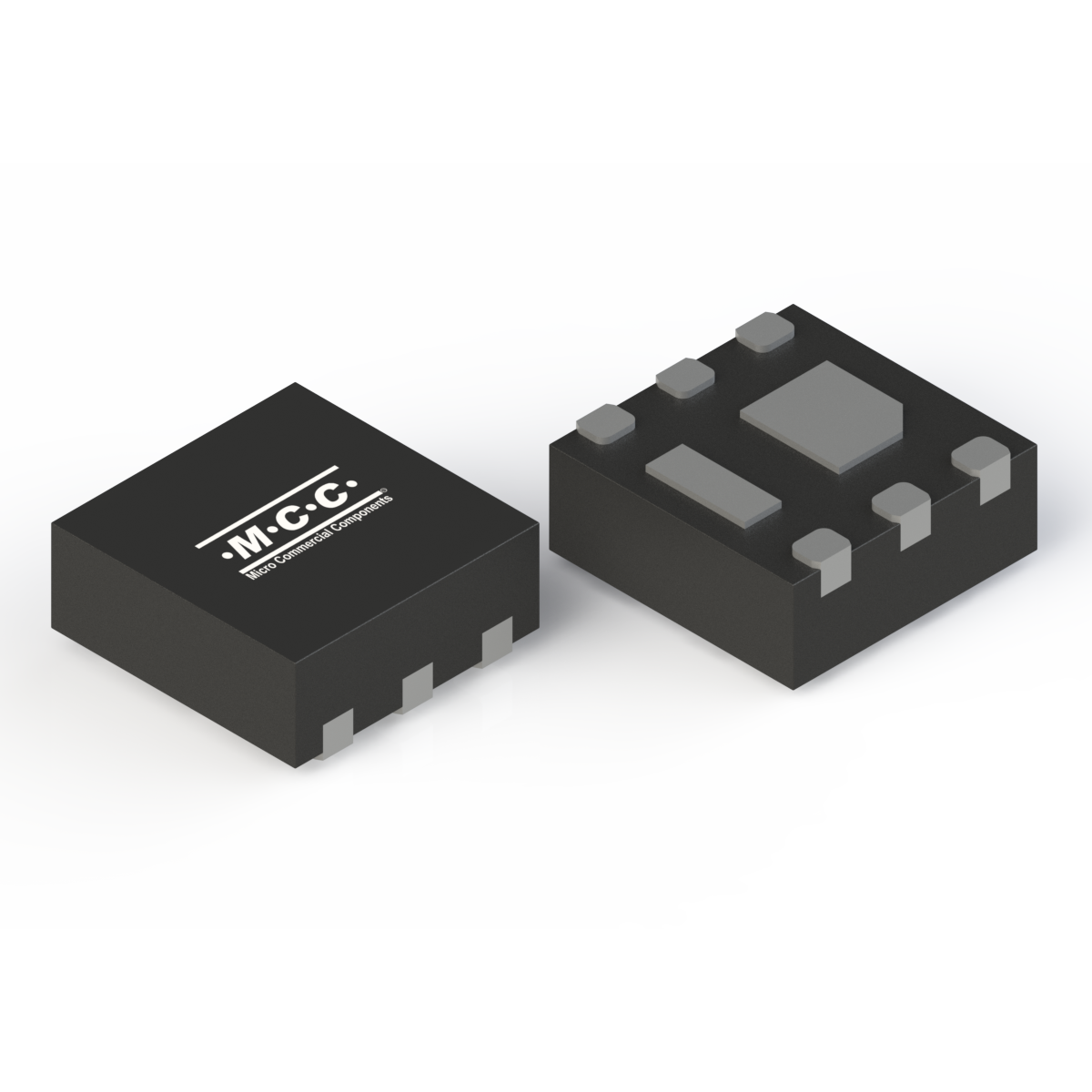

- Package Type:DFN2020-6J
- Packing Info:Tape&Reel:3Kpcs/Reel;
- Category:Small Signal MOSFETS
- MPN:MCM1567-TP
Product Detail
| Part Number | Number of Functions | Channel | Drain-Source Voltage VDS (V) |
Gate-Source Voltage VGS (V) |
Drain Current ID (A) |
RDS(ON) Max @VGS=10V (Ω) |
RDS(ON) Max @VGS=4.5V (Ω) |
RDS(ON) Max @VGS=2.5V (Ω) |
Gate Threshold Voltage VGS(th) Min (V) |
Gate Threshold Voltage VGS(th) Max (V) |
ESD Diodes |
Junction Temperature Tj [max] (°C) |
Input Capacitance Ciss(pF) |
Output Capacitance Coss(pF) |
Power Rating PD(W) |
Total Gate Charge Qg(nC) |
Gate-Drain Charge Qgd(nC) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MCM1567 | Single | P | -20 | ±12 | -9 | 0.018 | 0.024 | -0.4 | -1 | No | 150 | 2130 | 290 | 18 | 54 | 8 |
| Part Number MCM1567 | Number of Functions Single | Channel P |
Drain-Source Voltage VDS (V) -20 |
Gate-Source Voltage VGS (V) ±12 |
Drain Current ID (A) -9 |
RDS(ON) Max @VGS=10V (Ω) |
RDS(ON) Max @VGS=4.5V (Ω) 0.018 |
RDS(ON) Max @VGS=2.5V (Ω) 0.024 |
Gate Threshold Voltage VGS(th) Min (V) -0.4 |
Gate Threshold Voltage VGS(th) Max (V) -1 |
ESD Diodes No |
Junction Temperature Tj [max] (°C) 150 |
Packing Information
| Part Number | Package Type | Packing Specification | Component Weight (g) | Marking Code | Packing Info |
|---|---|---|---|---|---|
| MCM1567 | DFN2020-6J | DFN2020-6J | 0.0100 | 1567 | Tape&Reel:3Kpcs/Reel; |
Environmental Information
Download
| Halogen Free | MTBF | FIT |
|---|---|---|
|
14988.69 | 7.6 |
