Small Signal MOSFETS | Status : Active

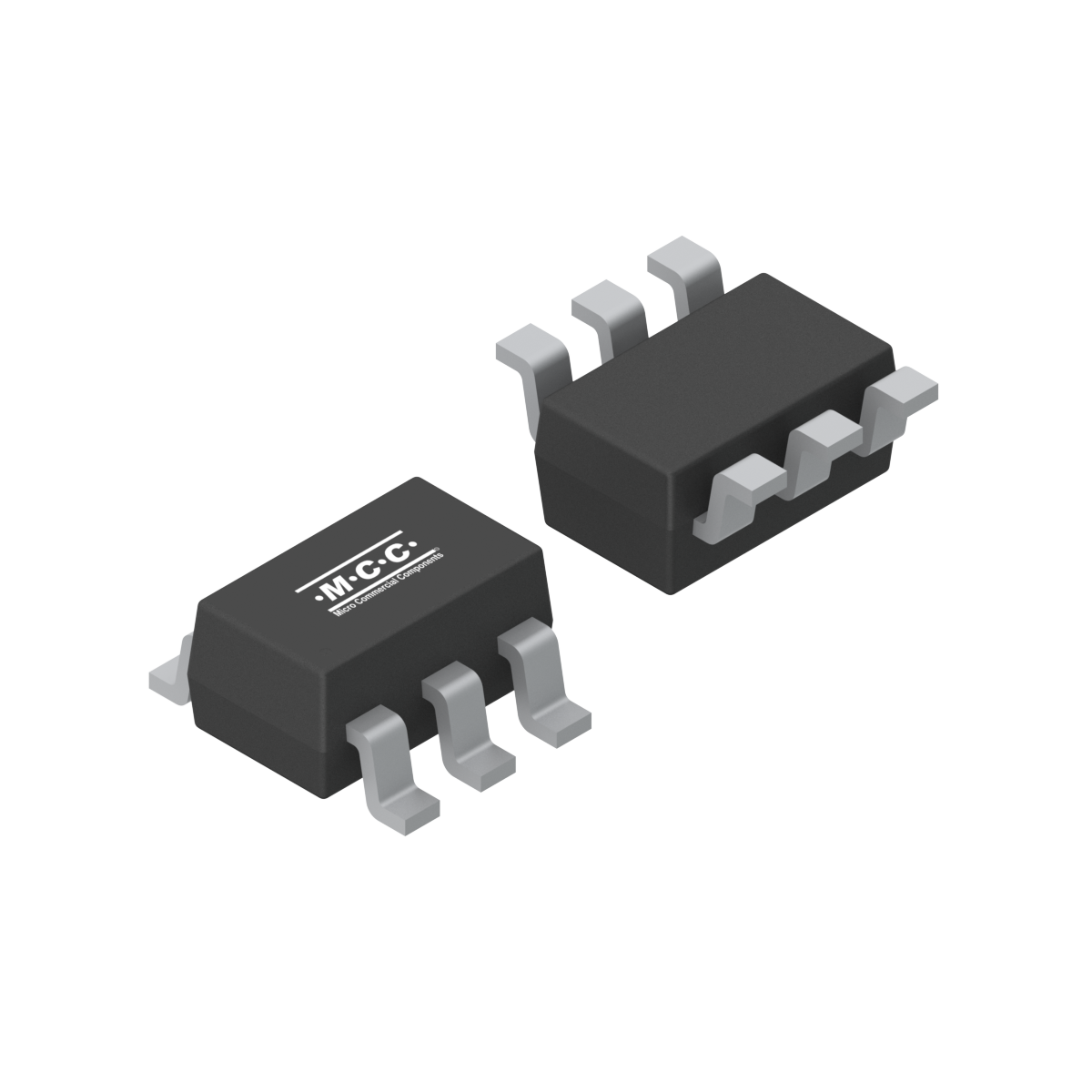

SI2429DW

  • Package Type:SOT-363
  • Packing Info:Tape: 3K/Reel, 120K/Ctn.;
  • Category:Small Signal MOSFETS
  • MPN:SI2429DW-TP
Check Stock Add To Cart
Datasheet ECAD Model Reliability Data

Product Detail

Part Number Number of Functions Channel Drain-Source
Voltage
VDS (V)		 Gate-Source
Voltage
VGS (V)		 Drain
Current
ID (A)		 RDS(ON)
Max
@VGS=10V
(Ω)		 RDS(ON)
Max
@VGS=4.5V
(Ω)		 RDS(ON)
Max
@VGS=2.5V
(Ω)		 Gate
Threshold
Voltage
VGS(th) Min
(V)		 Gate
Threshold
Voltage
VGS(th) Max
(V)		 ESD
Diodes		 Junction
Temperature
Tj [max]
(°C)		 Input
Capacitance
Ciss(pF)		 Output
Capacitance
Coss(pF)		 Power
Rating
PD(W)		 Total Gate
Charge
Qg(nC)		 Gate-Drain
Charge
Qgd(nC)
SI2429DW Dual N+P 20/-20 ±10 1.5/-1.0 0.09/0.150 0.105/0.180 0.55/-0.4 1.1/-1.0 No 150 188/220 35/35 0.43 2.7/3.2 0.5/0.6
Part Number SI2429DW Number of Functions Dual Channel N+P Drain-Source
Voltage
VDS (V)  20/-20 		Gate-Source
Voltage
VGS (V)  ±10 		Drain
Current
ID (A)  1.5/-1.0 		RDS(ON)
Max
@VGS=10V
(Ω)   		RDS(ON)
Max
@VGS=4.5V
(Ω)  0.09/0.150 		RDS(ON)
Max
@VGS=2.5V
(Ω)  0.105/0.180 		Gate
Threshold
Voltage
VGS(th) Min
(V)  0.55/-0.4 		Gate
Threshold
Voltage
VGS(th) Max
(V)  1.1/-1.0 		ESD
Diodes  No 		Junction
Temperature
Tj [max]
(°C)  150

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code Packing Info
SI2429DW SOT-363 SOT-363 0.0090 49 Tape: 3K/Reel, 120K/Ctn.;

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
Tin Whisker Test Report Halogen Free MTBF FIT
Tin Whisker Test Report Halogen Free 9992.46 11.4

ECN/PCN

ECN/PCN No# Title PDF Issued Date
031325-1 Additional new 2nd source PDF 03/13/2025
