Small Signal MOSFETS | Status :
Active

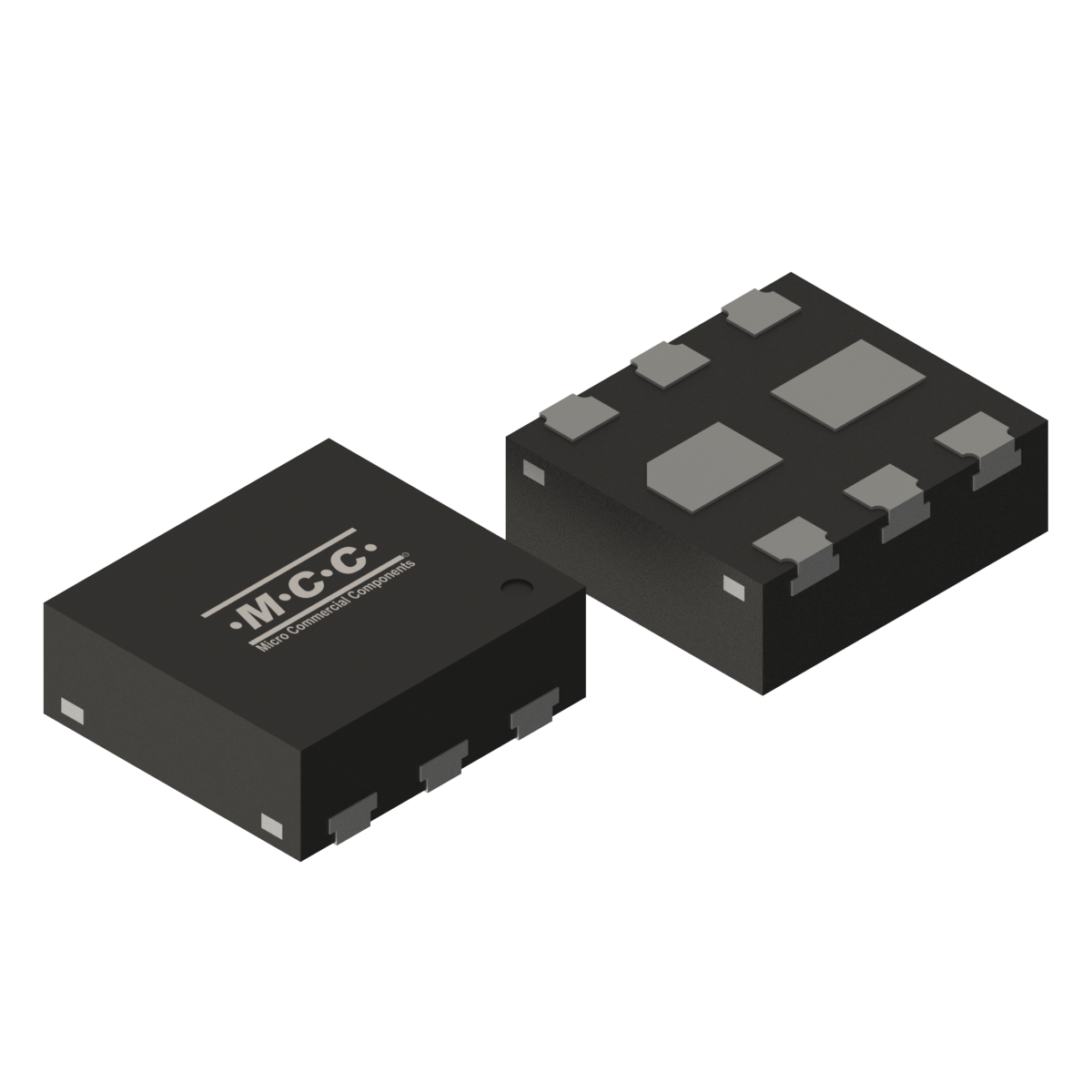

SI3134KU6
- Package Type:DFN1010B-6
- Packing Info:Tape: 5K/Reel;
- Category:Small Signal MOSFETS
- MPN:SI3134KU6-TP
Product Detail
| Part Number | Number of Functions | Channel | Drain-Source Voltage VDS (V) |
Gate-Source Voltage VGS (V) |
Drain Current ID (A) |
RDS(ON) Max @VGS=10V (Ω) |
RDS(ON) Max @VGS=4.5V (Ω) |
RDS(ON) Max @VGS=2.5V (Ω) |
Gate Threshold Voltage VGS(th) Min (V) |
Gate Threshold Voltage VGS(th) Max (V) |
ESD Diodes |
Junction Temperature Tj [max] (°C) |
Input Capacitance Ciss(pF) |
Output Capacitance Coss(pF) |
Power Rating PD(W) |
Total Gate Charge Qg(nC) |
Gate-Drain Charge Qgd(nC) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SI3134KU6 | Dual | N+N | 20 | ±10 | 0.75 | 0.25 | 0.34 | 0.35 | 1.2 | Yes | 150 | 33 | 10 | 0.42 | 1.2 | 0.2 |
| Part Number SI3134KU6 | Number of Functions Dual | Channel N+N |
Drain-Source Voltage VDS (V) 20 |
Gate-Source Voltage VGS (V) ±10 |
Drain Current ID (A) 0.75 |
RDS(ON) Max @VGS=10V (Ω) |
RDS(ON) Max @VGS=4.5V (Ω) 0.25 |
RDS(ON) Max @VGS=2.5V (Ω) 0.34 |
Gate Threshold Voltage VGS(th) Min (V) 0.35 |
Gate Threshold Voltage VGS(th) Max (V) 1.2 |
ESD Diodes Yes |
Junction Temperature Tj [max] (°C) 150 |
Packing Information
| Part Number | Package Type | Packing Specification | Component Weight (g) | Marking Code | Packing Info |
|---|---|---|---|---|---|
| SI3134KU6 | DFN1010B-6 | DFN1010B-6 | 0.0013 | 4K | Tape: 5K/Reel; |
Environmental Information
Download
| MSL |
|---|
| 1 |
