Small Signal MOSFETS | Status : Active

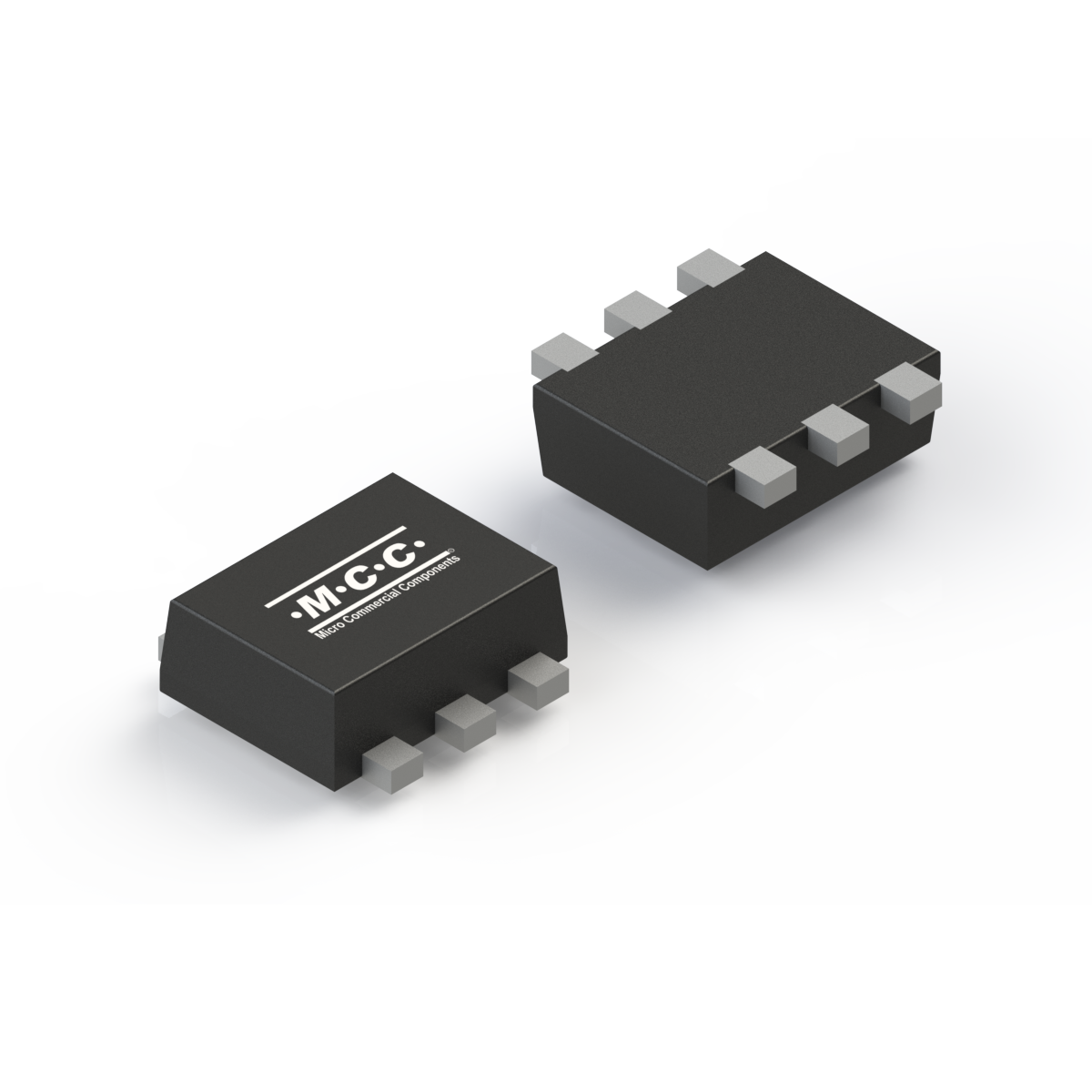

SIX3439KA

  • Package Type:SOT-563
  • Packing Info:Tape : 3K/Reel , 120K/Ctn;
  • Category:Small Signal MOSFETS
  • MPN:SIX3439KA-TP, SIX3439KA-TPQ2
Check Stock Add To Cart
Datasheet ECAD Model Spice Model Reliability Data

Product Detail

Part Number Number of Functions Channel Drain-Source
Voltage
VDS (V)		 Gate-Source
Voltage
VGS (V)		 Drain
Current
ID (A)		 RDS(ON)
Max
@VGS=10V
(Ω)		 RDS(ON)
Max
@VGS=4.5V
(Ω)		 RDS(ON)
Max
@VGS=2.5V
(Ω)		 Gate
Threshold
Voltage
VGS(th) Min
(V)		 Gate
Threshold
Voltage
VGS(th) Max
(V)		 ESD
Diodes		 Junction
Temperature
Tj [max]
(°C)		 Input
Capacitance
Ciss(pF)		 Output
Capacitance
Coss(pF)		 Power
Rating
PD(W)		 Total Gate
Charge
Qg(nC)		 Gate-Drain
Charge
Qgd(nC)
SIX3439KA Dual N+P 20/-20 ±12 0.75/-0.6 0.3/0.85 0.4/1.2 0.5/-0.5 1.1/-1.1 Yes 150 27/36 10.0/11.0 0.312 0.6/1.3 0.15/0.2
Part Number SIX3439KA Number of Functions Dual Channel N+P Drain-Source
Voltage
VDS (V)  20/-20 		Gate-Source
Voltage
VGS (V)  ±12 		Drain
Current
ID (A)  0.75/-0.6 		RDS(ON)
Max
@VGS=10V
(Ω)   		RDS(ON)
Max
@VGS=4.5V
(Ω)  0.3/0.85 		RDS(ON)
Max
@VGS=2.5V
(Ω)  0.4/1.2 		Gate
Threshold
Voltage
VGS(th) Min
(V)  0.5/-0.5 		Gate
Threshold
Voltage
VGS(th) Max
(V)  1.1/-1.1 		ESD
Diodes  Yes 		Junction
Temperature
Tj [max]
(°C)  150

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code Packing Info
SIX3439KA SOT-563 SOT-563 0.0030 49A Tape : 3K/Reel , 120K/Ctn;

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
Tin Whisker Test Report Halogen Free MTBF FIT
Tin Whisker Test Report Halogen Free 9992.46 11.4
