Fast Recovery Diode Modules | Status : Active

MF500U12F2

Check Stock Add To Cart
Datasheet ECAD Model

Product Detail

Part Number Number of Functions Working Peak
Reverse Voltage 		Average
Forward
Current 		 Forward
Peak Surge
Current 		Forward
Voltage Per
Element 		At Rated
Forward
Current 		Reverse
Recovery
Time
MF500U12F2 Single 1200 500 5000 2 500 200
VRRM(V) IO(A) IFSM(A) VF(V) IF(A) TRR(ns)
Part Number MF500U12F2 Number of Functions Single Working Peak Reverse Voltage  1200 Average Forward Current   500 Forward Peak Surge Current  5000 Forward Voltage Per Element  2 At Rated Forward Current  500 Reverse Recovery Time  200

Package

Part Number Package Type Packing Specification Component Weight (g) Marking Code

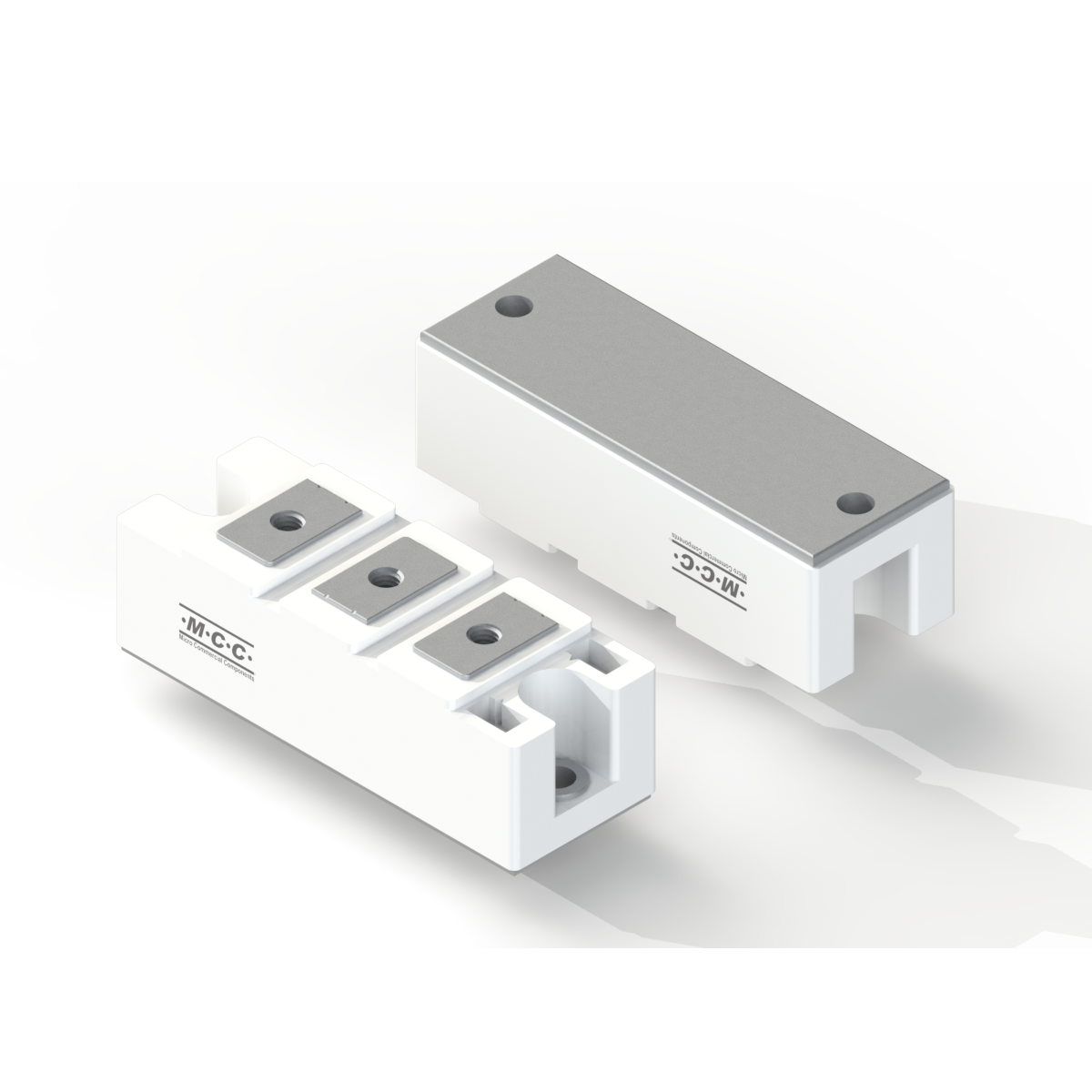

MF500U12F2 Package Type Image F2 F2 160.0000 MF500U12F2

Reliability & Chemical Content link icon

Reliability Report Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Environmental Compliance Download
