ESD Protection Devices | Status : Active

CSPSLC5V0AE

Check Stock Add To Cart
Datasheet ECAD Model

Product Detail

Part Number Number of Functions Configuration Reverse Standoff
Voltage
VRWM 		Maximum
Peak Pulse
Current IPP 		Maximum Clamping
Voltage VC
@MAX IPP 		Cj@VR=0V,
f=1MHZ
CSPSLC5V0AE 1 Bidirectional 5 3 20 0.25
V A V pF
Part Number CSPSLC5V0AE Number of Functions 1 Configuration Bidirectional Reverse Standoff Voltage VRWM  5 Maximum Peak Pulse Current IPP  3 Maximum Clamping Voltage VC @MAX IPP  20 Cj@VR=0V, f=1MHZ  0.25

Package

Part Number Configuration Package Type Packing Specification Component Weight (g) Marking Code Packing Info

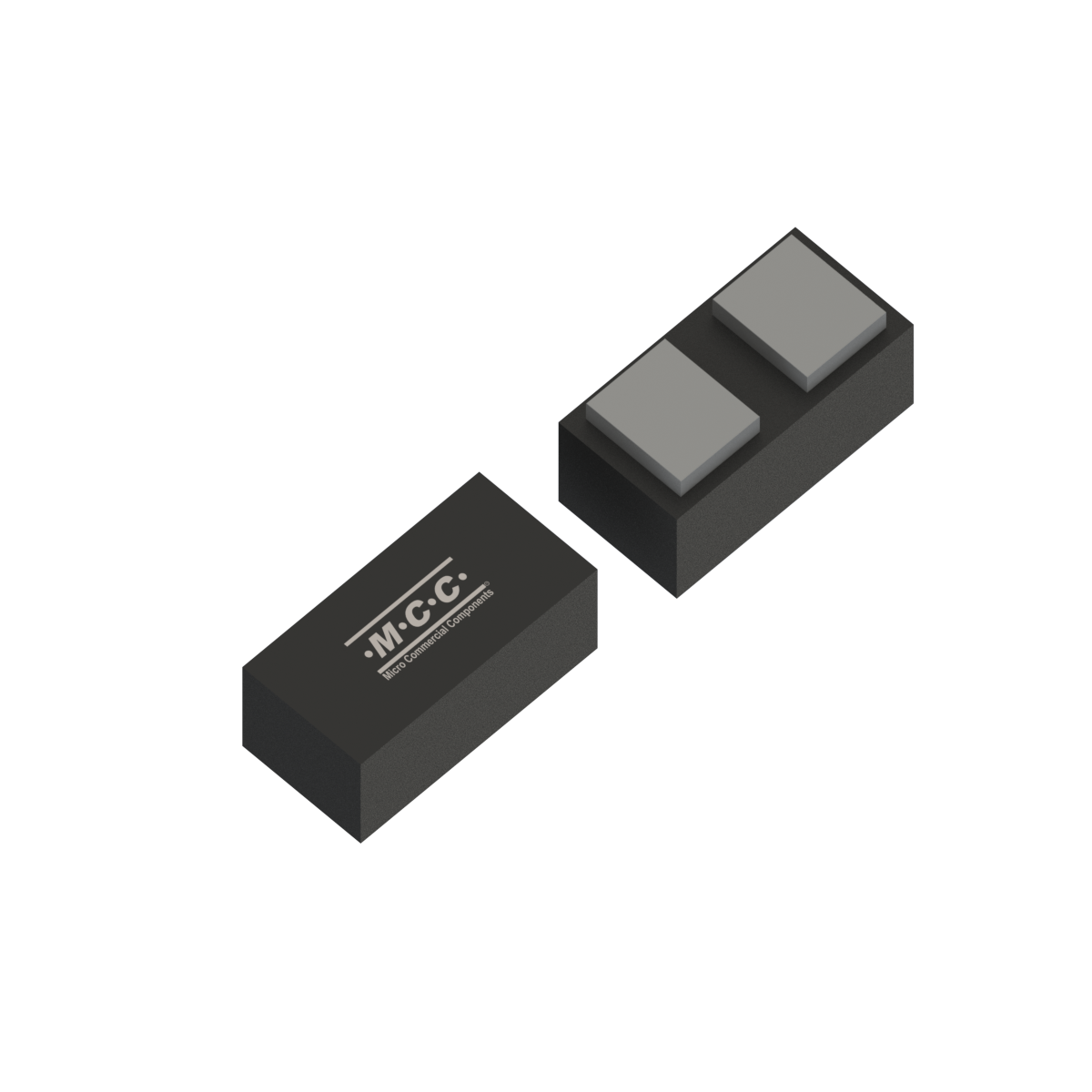

CSPSLC5V0AE Configuration Image Package Type Image CSP0201 CSP0201 0.0025 RV Tape&Reel: 10Kpcs/Reel;

Reliability & Chemical Content link icon

Reliability Report Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Environmental Compliance Download
