ESD Protection Devices | Status :
Active
ESD12VL

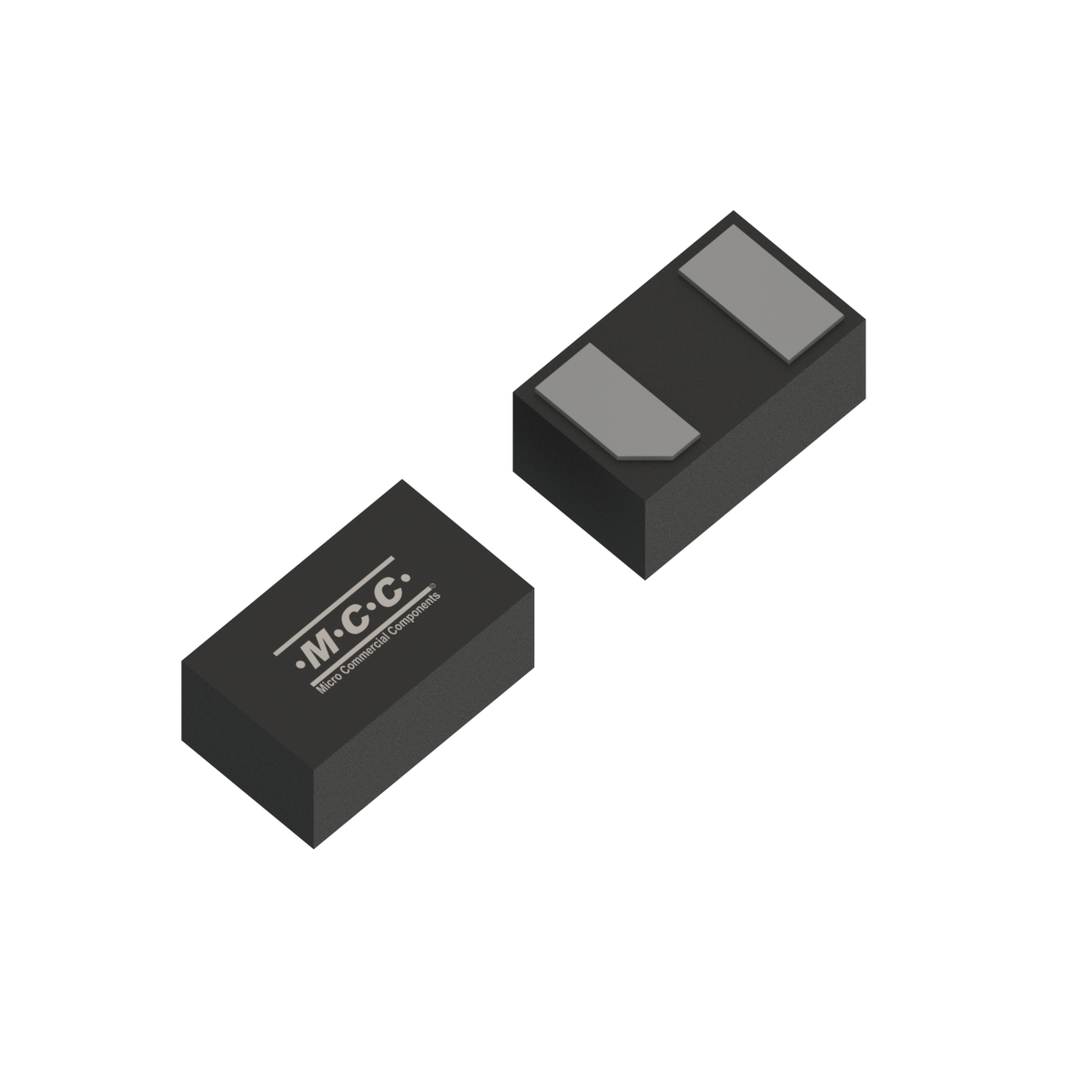

- Package Type:DFN1006-2
- Packing Info:Tape&Reel: 10Kpcs/Reel;
- Category:ESD Protection Devices
Product Detail
| Part Number | Number of Functions | Configuration | Reverse Standoff Voltage VRWM(V) |
Peak Pulse Current IPP(A) |
Max. Clamping Voltage VC (V) |
Junction Capacitance CJ(pF) |
Peak Pluse Power Dissipation PPPK (W) |
Maximum Reverse Leakage IR (uA) |
Breakdown Voltage Min VBR(V) |
Breakdown Voltage Max VBR(V) |
Junction Temperature Tj [max] (°C) |
VESDIEC61000-4-2 Air/Contact (kV) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ESD12VL | 1 | Unidirectional | 12 | 12 | 25 | 60 | 300 | 0.1 | 13.3 | 125 | ±30 |
| Part Number ESD12VL | Number of Functions 1 | Configuration Unidirectional |
Reverse Standoff Voltage VRWM(V) 12 |
Peak Pulse Current IPP(A) 12 |
Max. Clamping Voltage VC (V) 25 |
Junction Capacitance CJ(pF) 60 |
Peak Pluse Power Dissipation PPPK (W) 300 |
Maximum Reverse Leakage IR (uA) 0.1 |
Breakdown Voltage Min VBR(V) 13.3 |
Breakdown Voltage Max VBR(V) |
Junction Temperature Tj [max] (°C) 125 |
VESDIEC61000-4-2 Air/Contact (kV) ±30 |
Packing Information
Environmental Information
Download
| Halogen Free |
|---|
|
