ESD Protection Devices | Status :
Active

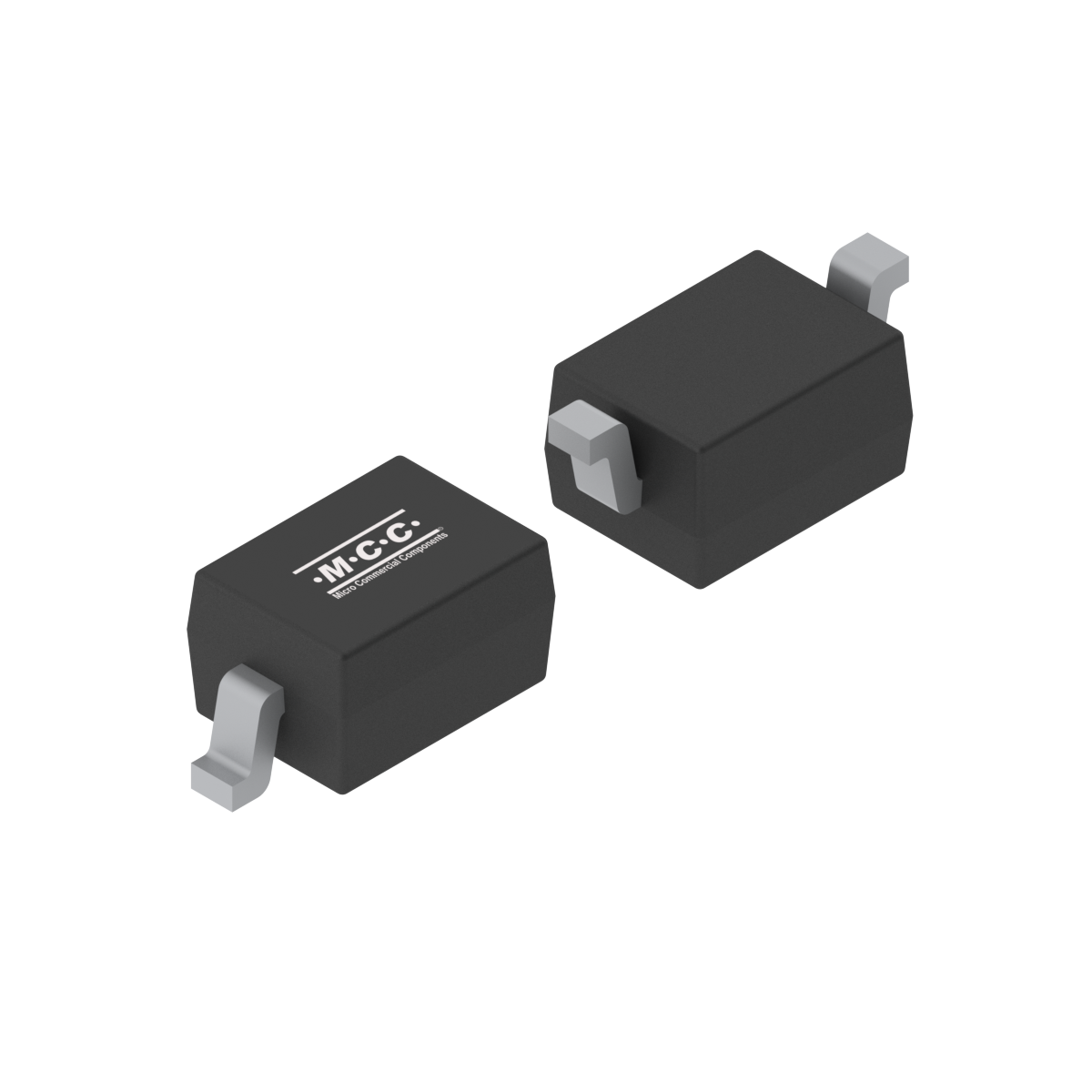

ESD1524D3B
- Package Type:SOD-323
- Packing Info:Tape&Reel: 3Kpcs/Reel;
- Category:ESD Protection Devices
- MPN:ESD1524D3B-TP
Product Detail
| Part Number | Number of Functions | Configuration | Reverse Standoff Voltage VRWM(V) |
Peak Pulse Current IPP(A) |
Max. Clamping Voltage VC (V) |
Junction Capacitance CJ(pF) |
Peak Pluse Power Dissipation PPPK (W) |
Maximum Reverse Leakage IR (uA) |
Breakdown Voltage Min VBR(V) |
Breakdown Voltage Max VBR(V) |
Junction Temperature Tj [max] (°C) |
VESDIEC61000-4-2 Air/Contact (kV) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ESD1524D3B | 1 | Asymmetric | 15 | 5 | 35 | 13 | 160 | 0.05 | 17.1 | 85 | ±30 |
| Part Number ESD1524D3B | Number of Functions 1 | Configuration Asymmetric |
Reverse Standoff Voltage VRWM(V) 15 |
Peak Pulse Current IPP(A) 5 |
Max. Clamping Voltage VC (V) 35 |
Junction Capacitance CJ(pF) 13 |
Peak Pluse Power Dissipation PPPK (W) 160 |
Maximum Reverse Leakage IR (uA) 0.05 |
Breakdown Voltage Min VBR(V) 17.1 |
Breakdown Voltage Max VBR(V) |
Junction Temperature Tj [max] (°C) 85 |
VESDIEC61000-4-2 Air/Contact (kV) ±30 |
Packing Information
| Part Number | Package Type | Packing Specification | Component Weight (g) | Marking Code | Packing Info |
|---|---|---|---|---|---|
| ESD1524D3B | SOD-323 | SOD-323 | 0.0040 | 1524 | Tape&Reel: 3Kpcs/Reel; |
Environmental Information
Download
| Tin Whisker Test Report | Halogen Free |
|---|---|
|
|
