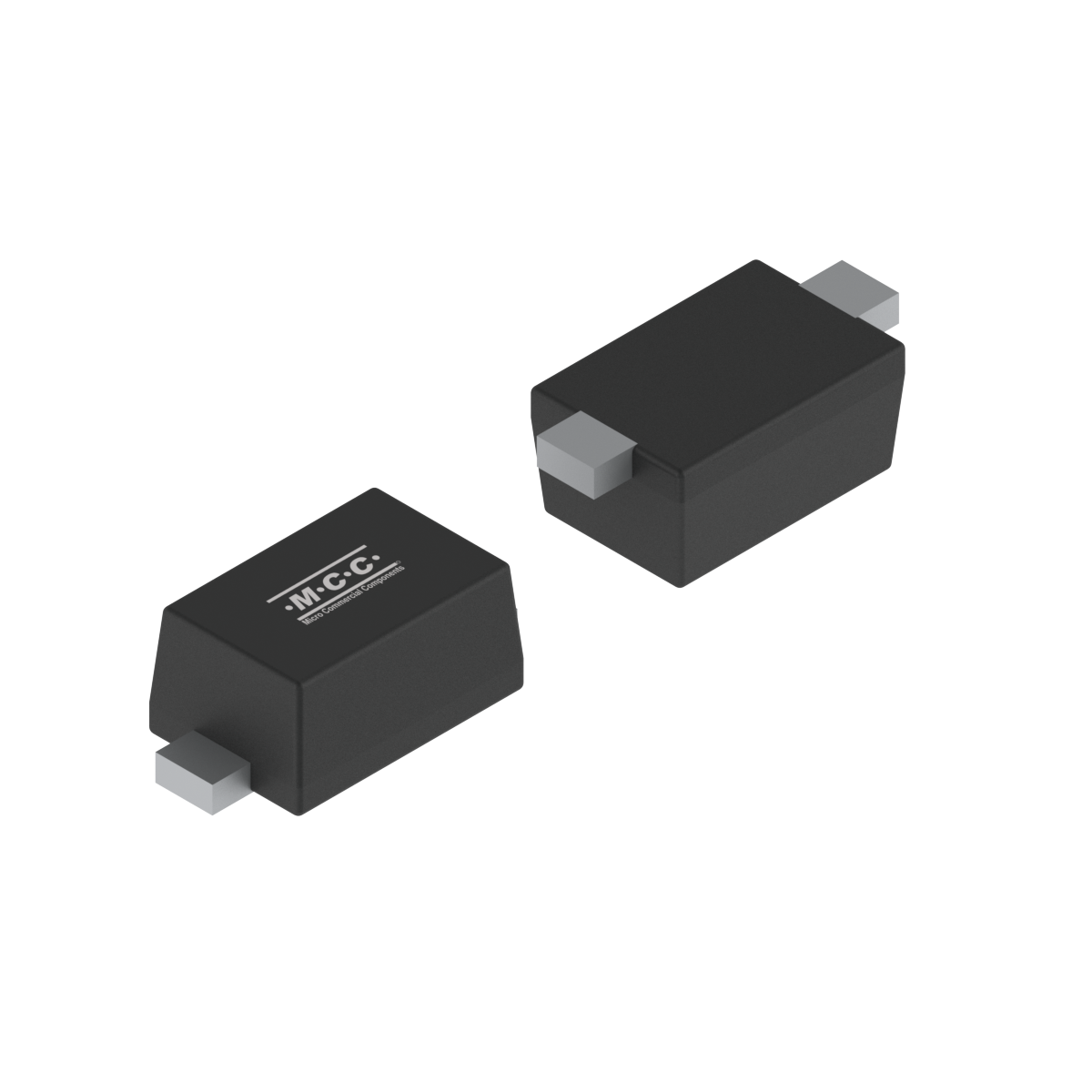

ESD3V3D5B
- Package Type:SOD-523
- Packing Info:Tape : 8K/Reel, 320K/Ctn;
- Category:ESD Protection Devices
- MPN:ESD3V3D5B-TP, ESD3V3D5B-T3P
Product Detail
| Part Number | Number of Functions | Configuration | Reverse Standoff Voltage VRWM(V) |
Peak Pulse Current IPP(A) |
Max. Clamping Voltage VC (V) |
Junction Capacitance CJ(pF) |
Peak Pluse Power Dissipation PPPK (W) |
Maximum Reverse Leakage IR (uA) |
Breakdown Voltage Min VBR(V) |
Breakdown Voltage Max VBR(V) |
Junction Temperature Tj [max] (°C) |
VESDIEC61000-4-2 Air/Contact (kV) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ESD3V3D5B | 1 | Bidirectional | 3.3 | 8 | 12 | 16 | 96 | 0.5 | 4.2 | 6.5 | 125 | ±30 |
| Part Number ESD3V3D5B | Number of Functions 1 | Configuration Bidirectional |
Reverse Standoff Voltage VRWM(V) 3.3 |
Peak Pulse Current IPP(A) 8 |
Max. Clamping Voltage VC (V) 12 |
Junction Capacitance CJ(pF) 16 |
Peak Pluse Power Dissipation PPPK (W) 96 |
Maximum Reverse Leakage IR (uA) 0.5 |
Breakdown Voltage Min VBR(V) 4.2 |
Breakdown Voltage Max VBR(V) 6.5 |
Junction Temperature Tj [max] (°C) 125 |
VESDIEC61000-4-2 Air/Contact (kV) ±30 |
Packing Information
| Part Number | Package Type | Packing Specification | Component Weight (g) | Marking Code | Packing Info |
|---|---|---|---|---|---|
| ESD3V3D5B | SOD-523 | SOD-523 | 0.0013 | 3Y | Tape : 8K/Reel, 320K/Ctn; |
Environmental Information
Download
| Halogen Free |
|---|
|
