ESD Protection Devices | Status : Active

ESD7V0LB

Check Stock Add To Cart

Product Detail

Part Number Number of Functions Configuration Reverse
Standoff
Voltage
VRWM(V)
Peak Pulse
Current
IPP(A)
Max.
Clamping
Voltage
VC (V)
Junction
Capacitance
CJ(pF)
Peak Pluse
Power
Dissipation
PPPK (W)
Maximum
Reverse
Leakage
IR (uA)
Breakdown
Voltage
Min VBR(V)
Breakdown
Voltage
Max VBR(V)
Junction
Temperature
Tj [max] (°C)
VESDIEC61000-4-2
Air/Contact
(kV)
ESD7V0LB 1 Bidirectional 7 5 16 15 80 0.2 7.5 125 ±30
Part Number ESD7V0LB Number of Functions 1 Configuration Bidirectional Reverse
Standoff
Voltage
VRWM(V)
 7
Peak Pulse
Current
IPP(A)
 5
Max.
Clamping
Voltage
VC (V)
 16
Junction
Capacitance
CJ(pF)
 15
Peak Pluse
Power
Dissipation
PPPK (W)
 80
Maximum
Reverse
Leakage
IR (uA)
 0.2
Breakdown
Voltage
Min VBR(V)
 7.5
Breakdown
Voltage
Max VBR(V)

Junction
Temperature
Tj [max] (°C)
 125
VESDIEC61000-4-2
Air/Contact
(kV)
 ±30

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code Packing Info

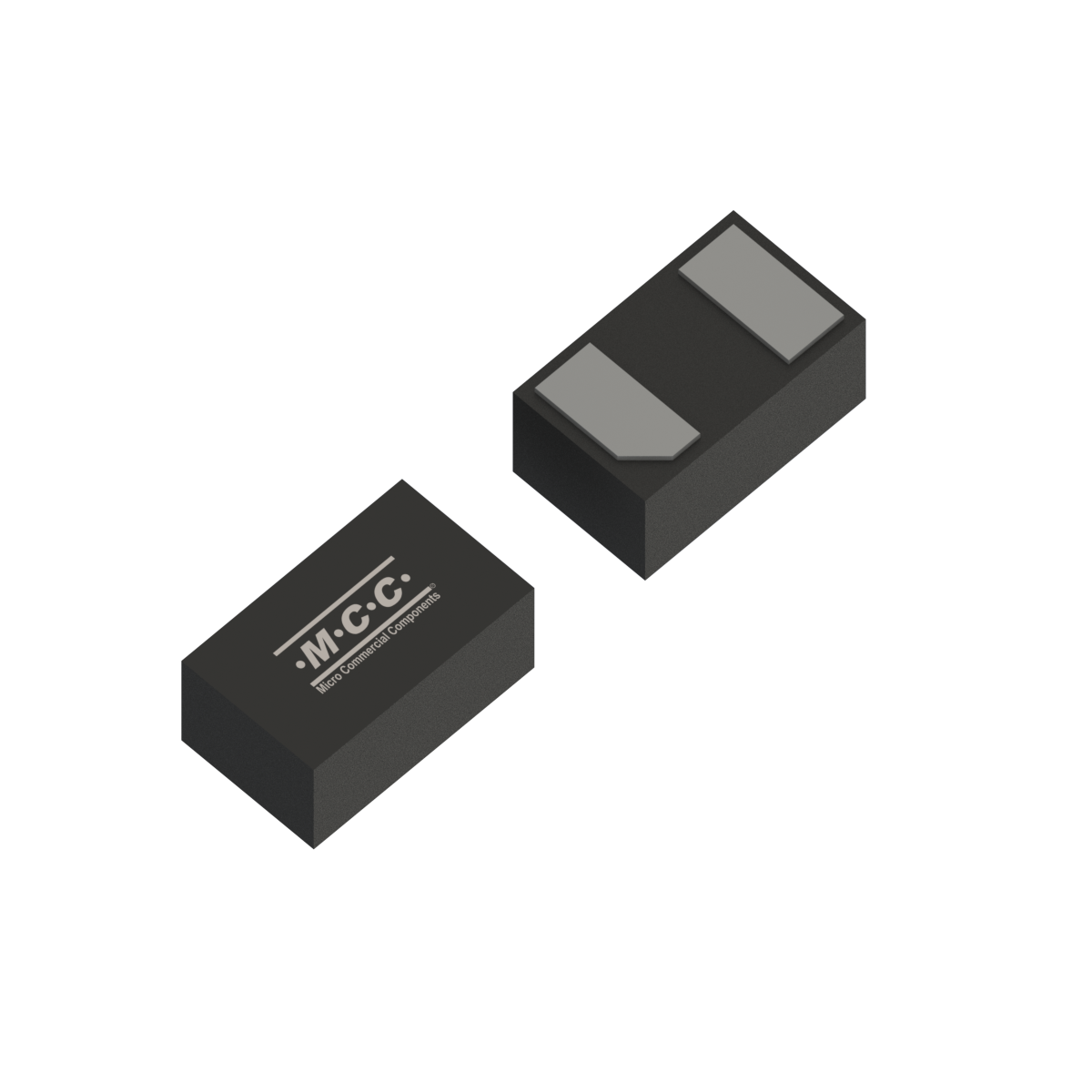

ESD7V0LB DFN1006-2 DFN1006-2 0.0011 .B2 Tape&Reel: 10Kpcs/Reel;

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
Halogen Free
Halogen Free
