ESD Protection Devices | Status :
Active

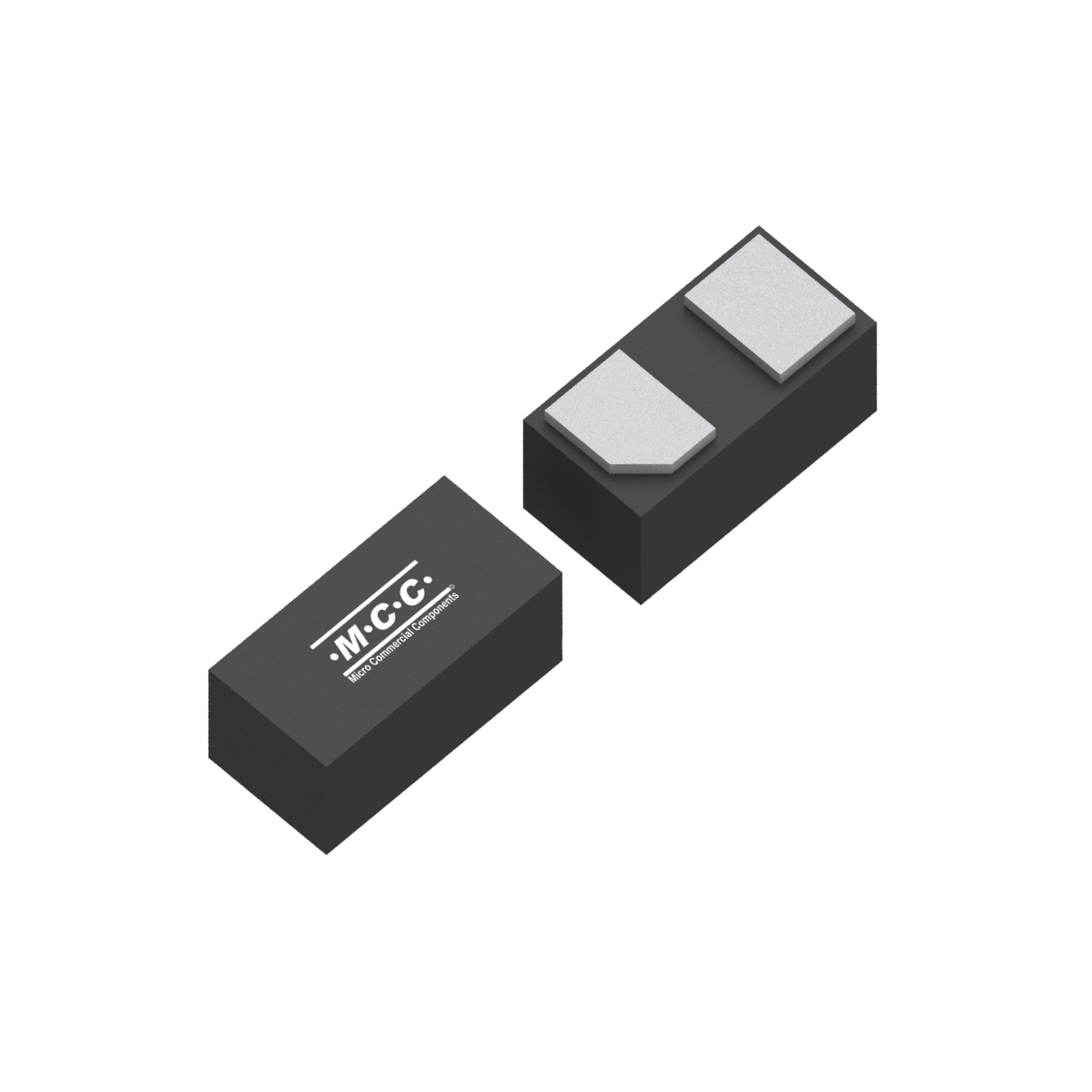

ESDLC3V3AE2
- Package Type:0201-A
- Packing Info:Tape&Reel;
- Category:ESD Protection Devices
- MPN:ESDLC3V3AE2-TP
Product Detail
| Part Number | Number of Functions | Configuration | Reverse Standoff Voltage VRWM(V) |
Peak Pulse Current IPP(A) |
Max. Clamping Voltage VC (V) |
Junction Capacitance CJ(pF) |
Peak Pluse Power Dissipation PPPK (W) |
Maximum Reverse Leakage IR (uA) |
Breakdown Voltage Min VBR(V) |
Breakdown Voltage Max VBR(V) |
Junction Temperature Tj [max] (°C) |
VESDIEC61000-4-2 Air/Contact (kV) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ESDLC3V3AE2 | 1 | Bidirectional | 3.3 | 3 | 10 | 3 | 30 | 0.2 | 4.3 | 125 | ±30/±28 |
| Part Number ESDLC3V3AE2 | Number of Functions 1 | Configuration Bidirectional |
Reverse Standoff Voltage VRWM(V) 3.3 |
Peak Pulse Current IPP(A) 3 |
Max. Clamping Voltage VC (V) 10 |
Junction Capacitance CJ(pF) 3 |
Peak Pluse Power Dissipation PPPK (W) 30 |
Maximum Reverse Leakage IR (uA) 0.2 |
Breakdown Voltage Min VBR(V) 4.3 |
Breakdown Voltage Max VBR(V) |
Junction Temperature Tj [max] (°C) 125 |
VESDIEC61000-4-2 Air/Contact (kV) ±30/±28 |
Packing Information
| Part Number | Package Type | Packing Specification | Component Weight (g) | Marking Code | Packing Info |
|---|---|---|---|---|---|
| ESDLC3V3AE2 | 0201-A | 0201-A | 0.0002 | Z3 | Tape&Reel; |
