ESD Protection Devices | Status :
Active
Automotive
ESDSBLC24VPUBWFHE3

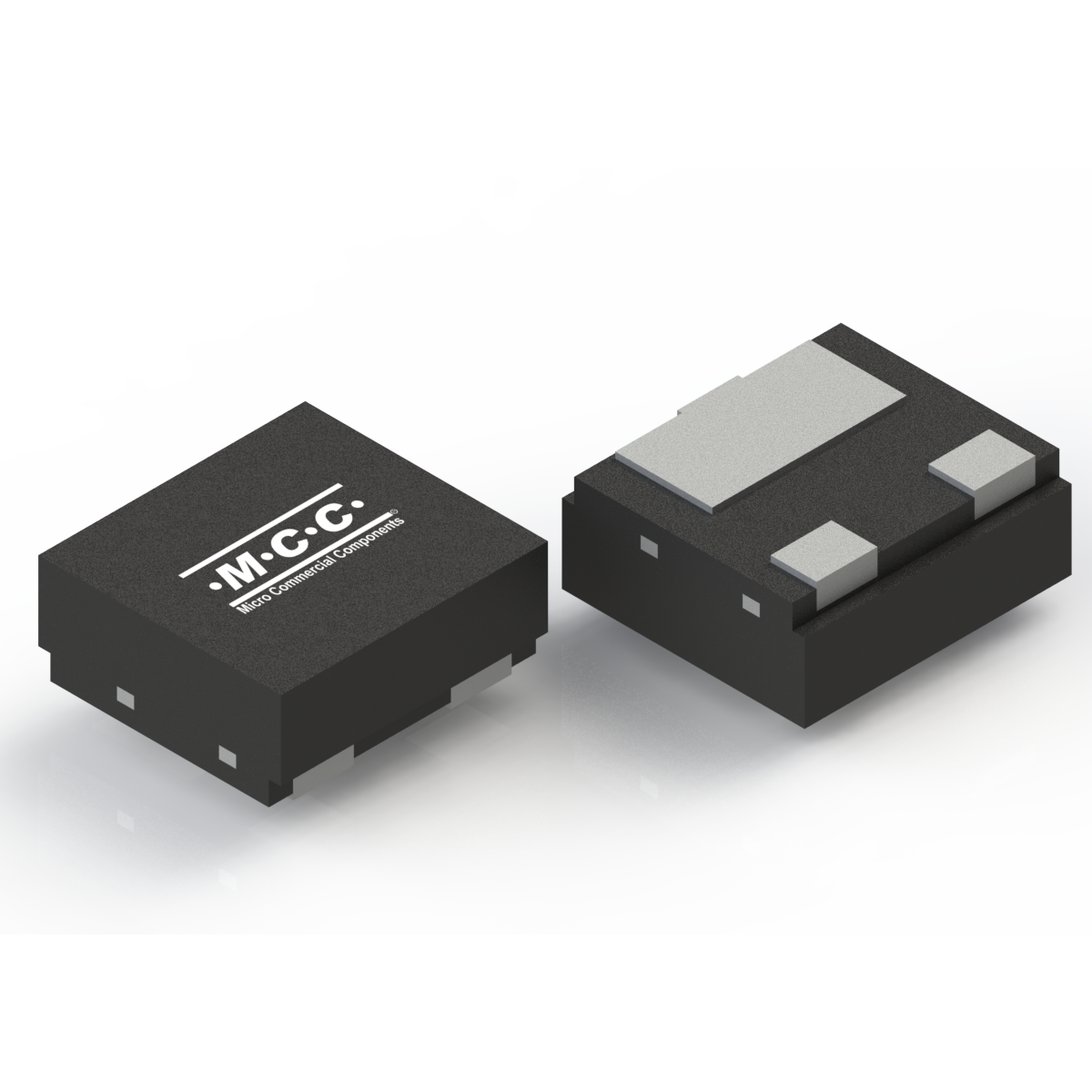

- Package Type:DFN1110-3(SWF)
- Packing Info:Tape&Reel: 10Kpcs/Reel;
- Category:ESD Protection Devices
Product Detail
| Part Number | Number of Functions | Configuration | Reverse Standoff Voltage VRWM(V) |
Peak Pulse Current IPP(A) |
Max. Clamping Voltage VC (V) |
Junction Capacitance CJ(pF) |
Peak Pluse Power Dissipation PPPK (W) |
Maximum Reverse Leakage IR (uA) |
Breakdown Voltage Min VBR(V) |
Breakdown Voltage Max VBR(V) |
Junction Temperature Tj [max] (°C) |
VESDIEC61000-4-2 Air/Contact (kV) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ESDSBLC24VPUBWFHE3 | 2 | Bidirectional | 24 | 5 | 34 | 5 | 170 | 0.2 | 26.5 | 125 | ±30 |
| Part Number ESDSBLC24VPUBWFHE3 | Number of Functions 2 | Configuration Bidirectional |
Reverse Standoff Voltage VRWM(V) 24 |
Peak Pulse Current IPP(A) 5 |
Max. Clamping Voltage VC (V) 34 |
Junction Capacitance CJ(pF) 5 |
Peak Pluse Power Dissipation PPPK (W) 170 |
Maximum Reverse Leakage IR (uA) 0.2 |
Breakdown Voltage Min VBR(V) 26.5 |
Breakdown Voltage Max VBR(V) |
Junction Temperature Tj [max] (°C) 125 |
VESDIEC61000-4-2 Air/Contact (kV) ±30 |
Packing Information
| Part Number | Package Type | Packing Specification | Component Weight (g) | Marking Code | Packing Info |
|---|---|---|---|---|---|
| ESDSBLC24VPUBWFHE3 | DFN1110-3(SWF) | DFN1110-3(SWF) | 0.0014 | 42U | Tape&Reel: 10Kpcs/Reel; |
