ESD Protection Devices | Status :
Active

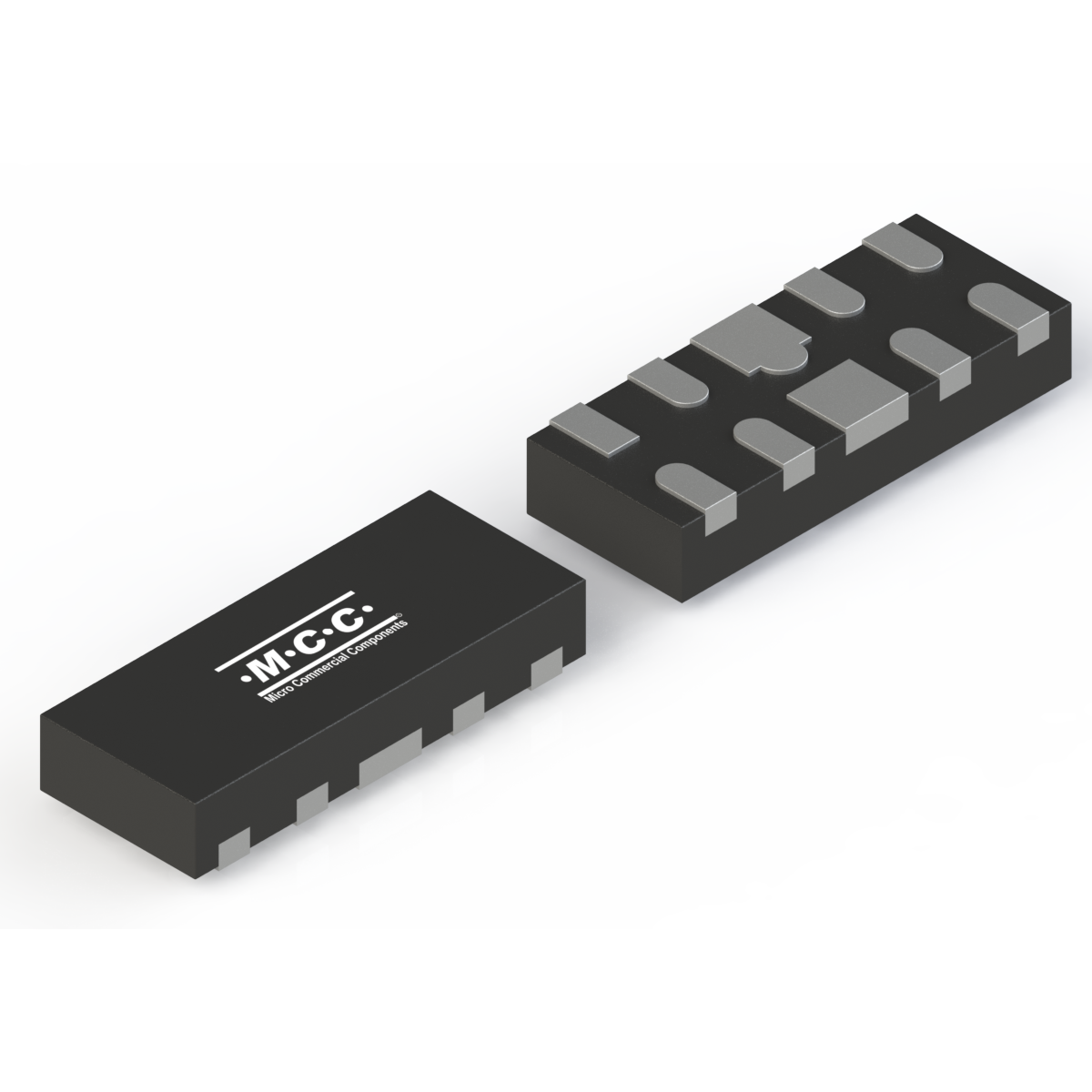

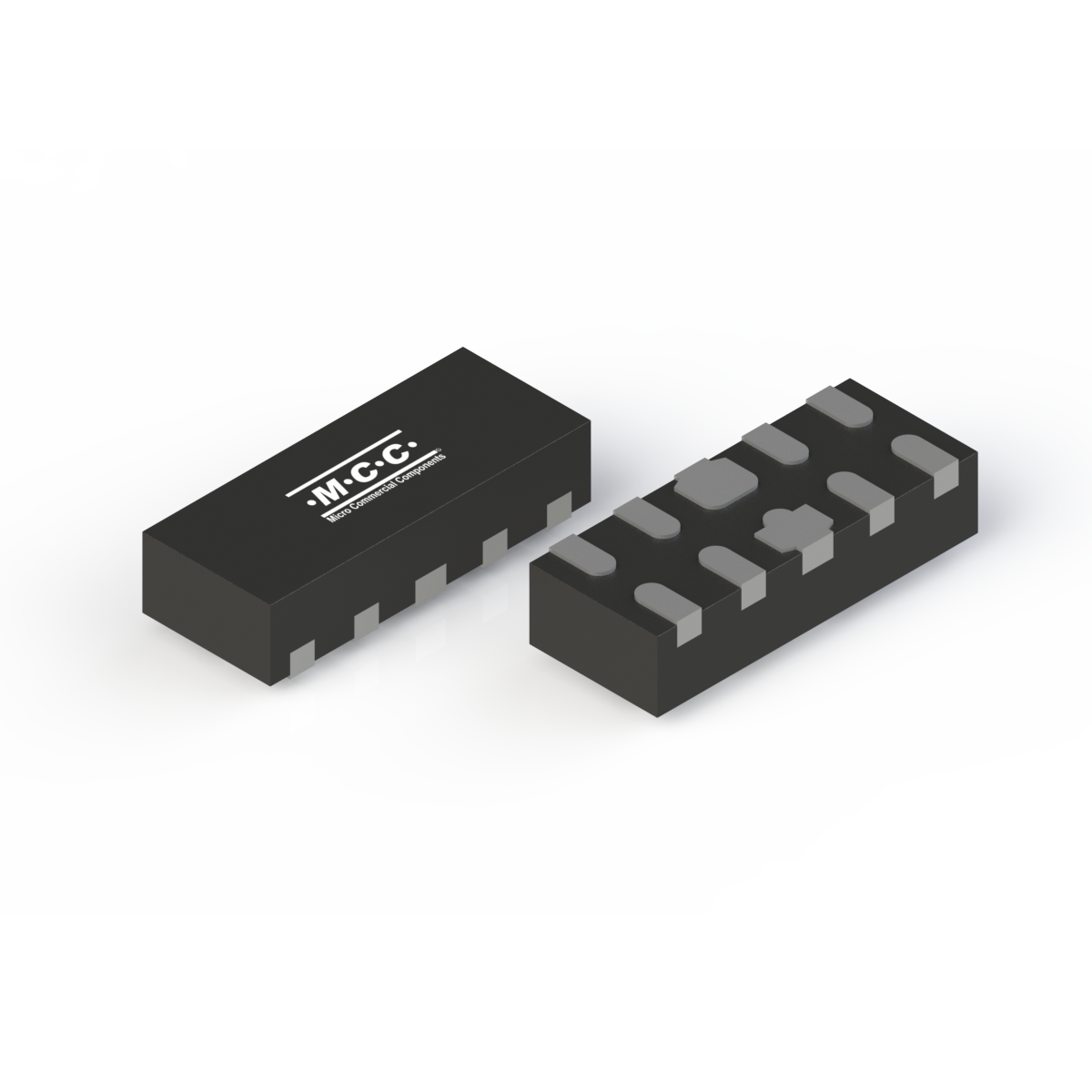

ESDSLC0534DFN10
- Package Type:DFN-10
- Packing Info:Tape:3K/Reel, 120K/Ctn;
- Category:ESD Protection Devices
- MPN:ESDSLC0534DFN10-TP
Product Detail
| Part Number | Number of Functions | Configuration | Reverse Standoff Voltage VRWM(V) |
Peak Pulse Current IPP(A) |
Max. Clamping Voltage VC (V) |
Junction Capacitance CJ(pF) |
Peak Pluse Power Dissipation PPPK (W) |
Maximum Reverse Leakage IR (uA) |
Breakdown Voltage Min VBR(V) |
Breakdown Voltage Max VBR(V) |
Junction Temperature Tj [max] (°C) |
VESDIEC61000-4-2 Air/Contact (kV) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ESDSLC0534DFN10 | 4 | Unidirectional | 5 | 3 | 15 | 0.5 | 50 | 0.2 | 6 | 8.5 | 125 | ±25/±20 |
| Part Number ESDSLC0534DFN10 | Number of Functions 4 | Configuration Unidirectional |
Reverse Standoff Voltage VRWM(V) 5 |
Peak Pulse Current IPP(A) 3 |
Max. Clamping Voltage VC (V) 15 |
Junction Capacitance CJ(pF) 0.5 |
Peak Pluse Power Dissipation PPPK (W) 50 |
Maximum Reverse Leakage IR (uA) 0.2 |
Breakdown Voltage Min VBR(V) 6 |
Breakdown Voltage Max VBR(V) 8.5 |
Junction Temperature Tj [max] (°C) 125 |
VESDIEC61000-4-2 Air/Contact (kV) ±25/±20 |
Packing Information
| Part Number | Package Type | Packing Specification | Component Weight (g) | Marking Code | Packing Info |
|---|---|---|---|---|---|
| ESDSLC0534DFN10 | DFN-10 | DFN-10 | 0.0040 | 0534 | Tape:3K/Reel, 120K/Ctn; |
Environmental Information
Download
| Halogen Free |
|---|
|
