ESD Protection Devices | Status :
Active

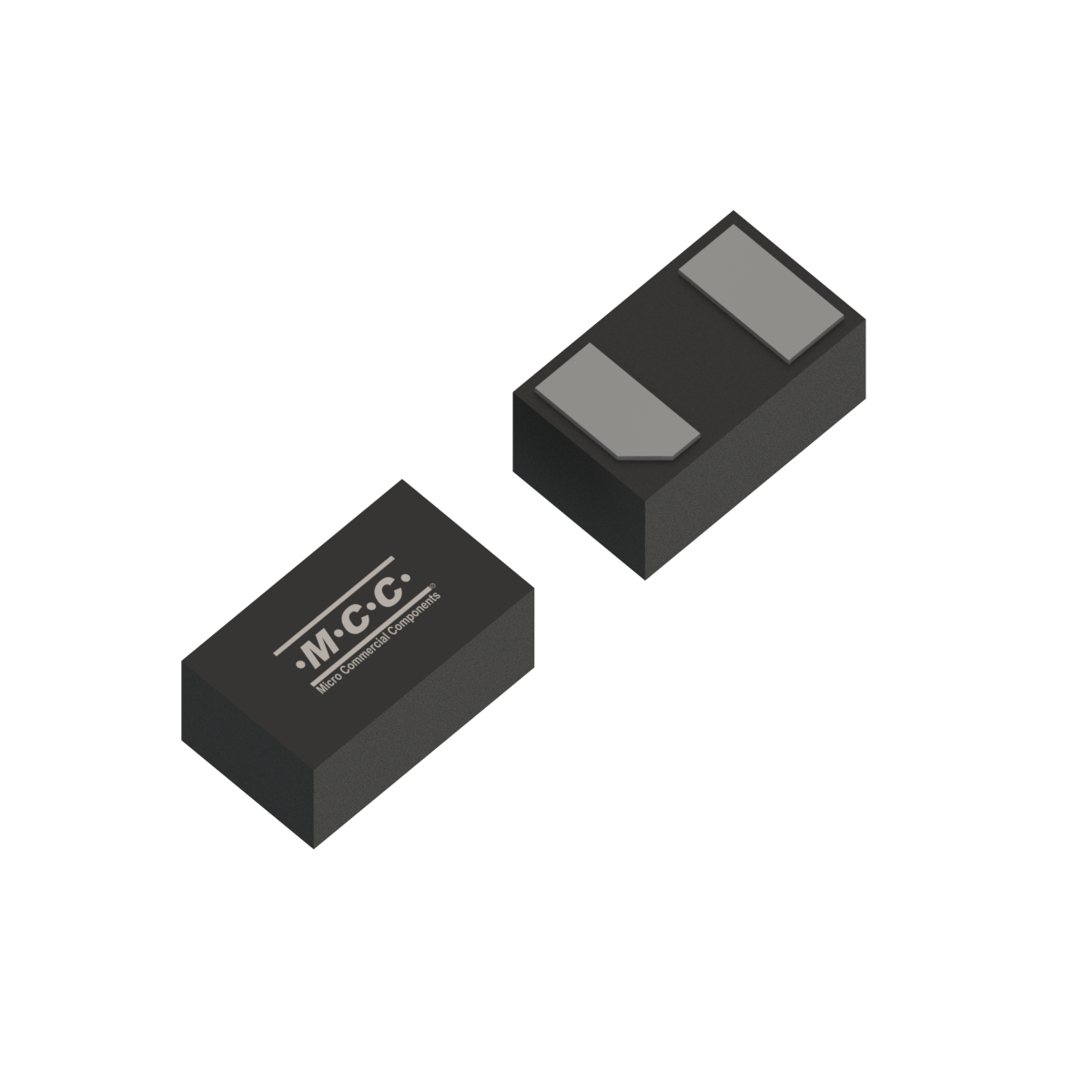

ESDSLC12VLB
- Package Type:DFN1006-2
- Packing Info: Tape&Reel: 10Kpcs/Reel;
- Category:ESD Protection Devices
Product Detail
| Part Number | Number of Functions | Configuration | Reverse Standoff Voltage VRWM(V) |
Peak Pulse Current IPP(A) |
Max. Clamping Voltage VC (V) |
Junction Capacitance CJ(pF) |
Peak Pluse Power Dissipation PPPK (W) |
Maximum Reverse Leakage IR (uA) |
Breakdown Voltage Min VBR(V) |
Breakdown Voltage Max VBR(V) |
Junction Temperature Tj [max] (°C) |
VESDIEC61000-4-2 Air/Contact (kV) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ESDSLC12VLB | 1 | Bidirectional | 12 | 2.5 | 32 | 0.5 | 80 | 0.2 | 13.5 | 125 | ±25/±20 |
| Part Number ESDSLC12VLB | Number of Functions 1 | Configuration Bidirectional |
Reverse Standoff Voltage VRWM(V) 12 |
Peak Pulse Current IPP(A) 2.5 |
Max. Clamping Voltage VC (V) 32 |
Junction Capacitance CJ(pF) 0.5 |
Peak Pluse Power Dissipation PPPK (W) 80 |
Maximum Reverse Leakage IR (uA) 0.2 |
Breakdown Voltage Min VBR(V) 13.5 |
Breakdown Voltage Max VBR(V) |
Junction Temperature Tj [max] (°C) 125 |
VESDIEC61000-4-2 Air/Contact (kV) ±25/±20 |
Packing Information
Environmental Information
Download
| Halogen Free |
|---|
|
