ESD Protection Devices | Status :
Active

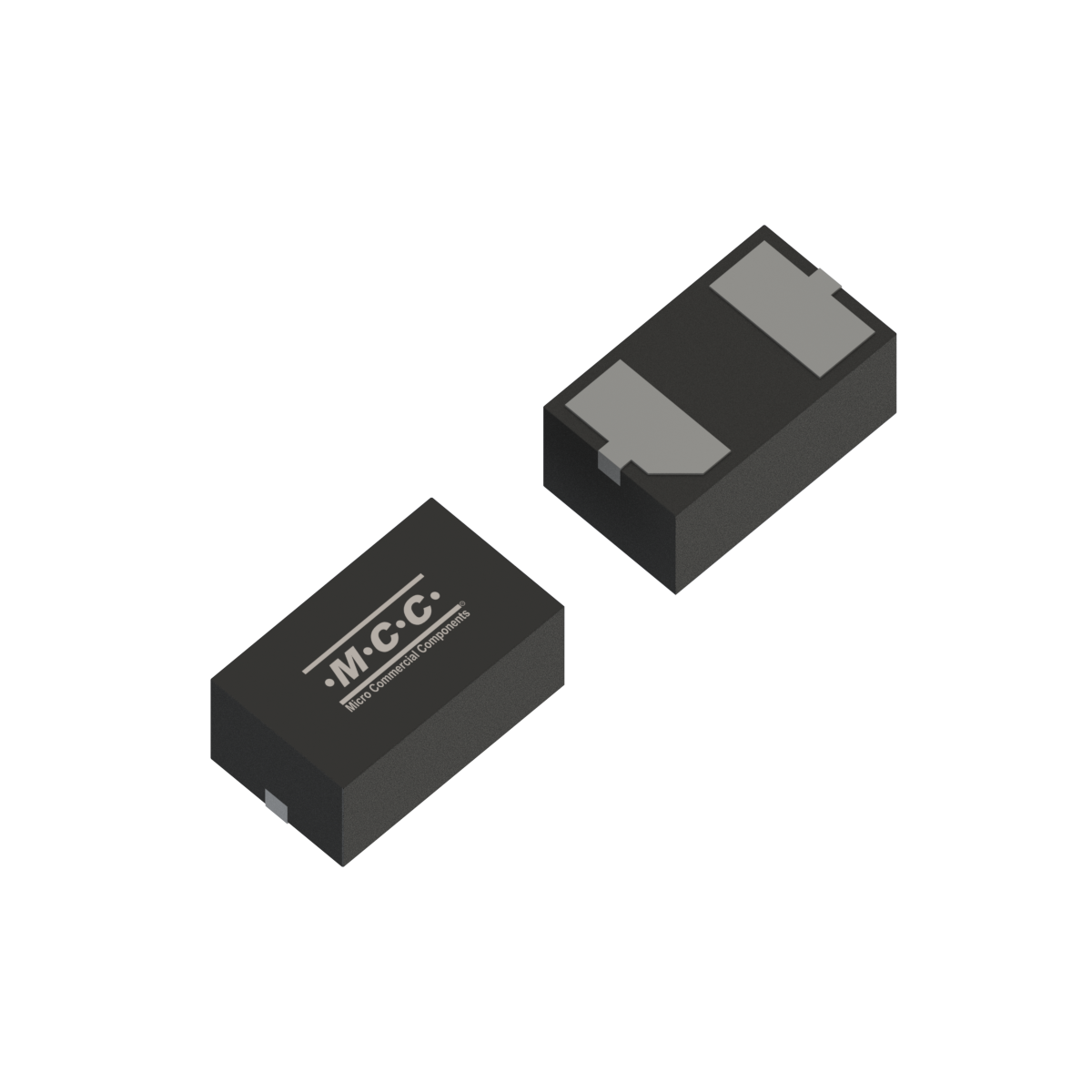

ESDSLC5V0L2B
- Package Type:DFN1006-2L
- Packing Info: Tape&Reel;
- Category:ESD Protection Devices
Product Detail
| Part Number | Number of Functions | Configuration | Reverse Standoff Voltage VRWM(V) |
Peak Pulse Current IPP(A) |
Max. Clamping Voltage VC (V) |
Junction Capacitance CJ(pF) |
Peak Pluse Power Dissipation PPPK (W) |
Maximum Reverse Leakage IR (uA) |
Breakdown Voltage Min VBR(V) |
Breakdown Voltage Max VBR(V) |
Junction Temperature Tj [max] (°C) |
VESDIEC61000-4-2 Air/Contact (kV) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ESDSLC5V0L2B | 1 | Bidirectional | 5.5 | 3 | 15 | 0.2 | 40 | 0.05 | 6.1 | 8.8 | 150 | ±20 |
| Part Number ESDSLC5V0L2B | Number of Functions 1 | Configuration Bidirectional |
Reverse Standoff Voltage VRWM(V) 5.5 |
Peak Pulse Current IPP(A) 3 |
Max. Clamping Voltage VC (V) 15 |
Junction Capacitance CJ(pF) 0.2 |
Peak Pluse Power Dissipation PPPK (W) 40 |
Maximum Reverse Leakage IR (uA) 0.05 |
Breakdown Voltage Min VBR(V) 6.1 |
Breakdown Voltage Max VBR(V) 8.8 |
Junction Temperature Tj [max] (°C) 150 |
VESDIEC61000-4-2 Air/Contact (kV) ±20 |
Packing Information
| Part Number | Package Type | Packing Specification | Component Weight (g) | Marking Code | Packing Info |
|---|---|---|---|---|---|
| ESDSLC5V0L2B | DFN1006-2L | DFN1006-2L | 0.0010 | BV | Tape&Reel; |
Environmental Information
Download
| Halogen Free |
|---|
|
ECN/PCN
| ECN/PCN No# | Title | Issued Date | |
|---|---|---|---|
| 042622-1 | Additional new wafer source for ESDPLC5V0AE2-TP & ESDSLC5V0L2B-TP |
|
04/26/2022 |
