ESD Protection Devices | Status :
Active
Automotive

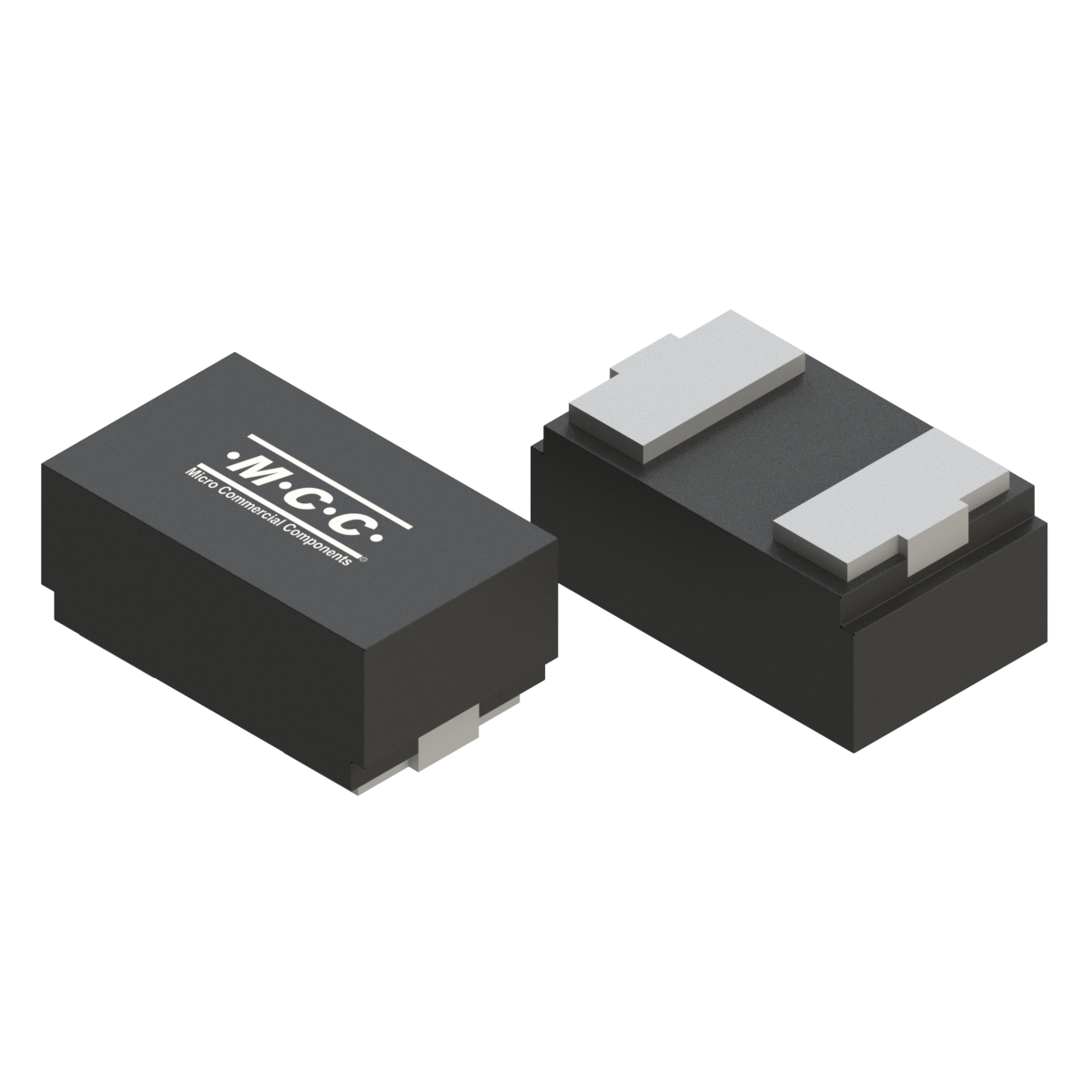

ESDULC3V3LBWFHE3
- Package Type:DFN1006-2L(SWF)
- Packing Info:Tape&Reel: 10Kpcs/Reel;
- Category:ESD Protection Devices
Product Detail
| Part Number | Number of Functions | Configuration | Reverse Standoff Voltage VRWM(V) |
Peak Pulse Current IPP(A) |
Max. Clamping Voltage VC (V) |
Junction Capacitance CJ(pF) |
Peak Pluse Power Dissipation PPPK (W) |
Maximum Reverse Leakage IR (uA) |
Breakdown Voltage Min VBR(V) |
Breakdown Voltage Max VBR(V) |
Junction Temperature Tj [max] (°C) |
VESDIEC61000-4-2 Air/Contact (kV) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ESDULC3V3LBWFHE3 | 1 | Bidirectional | 3.3 | 4 | 20 | 0.5 | 60 | 0.2 | 6 | 9.5 | 150 | ±20 |
| Part Number ESDULC3V3LBWFHE3 | Number of Functions 1 | Configuration Bidirectional |
Reverse Standoff Voltage VRWM(V) 3.3 |
Peak Pulse Current IPP(A) 4 |
Max. Clamping Voltage VC (V) 20 |
Junction Capacitance CJ(pF) 0.5 |
Peak Pluse Power Dissipation PPPK (W) 60 |
Maximum Reverse Leakage IR (uA) 0.2 |
Breakdown Voltage Min VBR(V) 6 |
Breakdown Voltage Max VBR(V) 9.5 |
Junction Temperature Tj [max] (°C) 150 |
VESDIEC61000-4-2 Air/Contact (kV) ±20 |
Packing Information
| Part Number | Package Type | Packing Specification | Component Weight (g) | Marking Code | Packing Info |
|---|---|---|---|---|---|
| ESDULC3V3LBWFHE3 | DFN1006-2L(SWF) | DFN1006-2L(SWF) | 0.0010 | B3 | Tape&Reel: 10Kpcs/Reel; |
Environmental Information
Download
| MSL |
|---|
| 1 |
