ESD Protection Devices | Status :
Active
Automotive
ESDULC5V0LBWFHE3

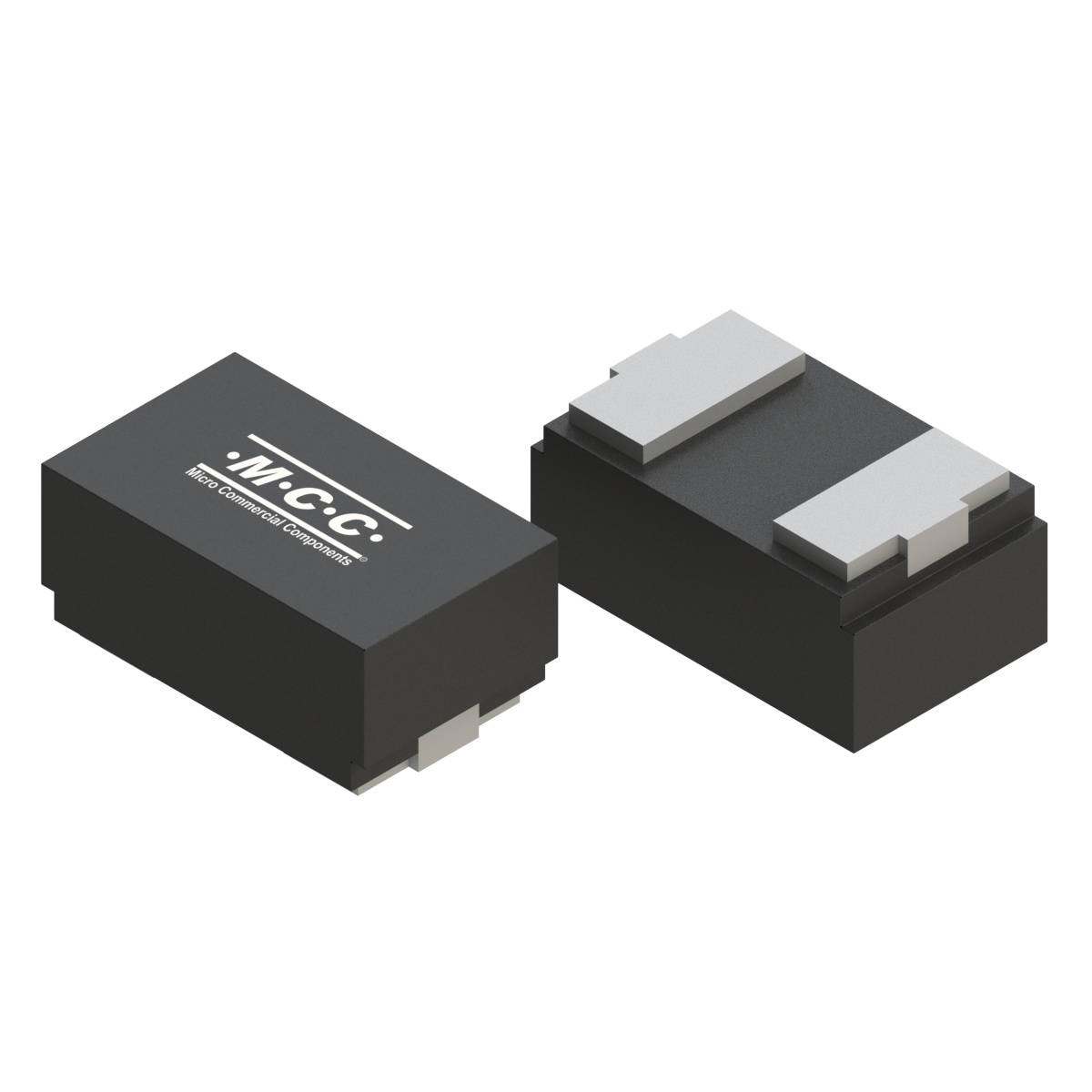

- Package Type:DFN1006-2L(SWF)
- Packing Info:Tape&Reel: 10Kpcs/Reel;
- Category:ESD Protection Devices
Product Detail
| Part Number | Number of Functions | Configuration | Reverse Standoff Voltage VRWM(V) |
Peak Pulse Current IPP(A) |
Max. Clamping Voltage VC (V) |
Junction Capacitance CJ(pF) |
Peak Pluse Power Dissipation PPPK (W) |
Maximum Reverse Leakage IR (uA) |
Breakdown Voltage Min VBR(V) |
Breakdown Voltage Max VBR(V) |
Junction Temperature Tj [max] (°C) |
VESDIEC61000-4-2 Air/Contact (kV) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ESDULC5V0LBWFHE3 | 1 | Bidirectional | 5 | 3 | 20 | 0.3 | 50 | 0.2 | 6 | 8.5 | 150 | ±15/±8 |
| Part Number ESDULC5V0LBWFHE3 | Number of Functions 1 | Configuration Bidirectional |
Reverse Standoff Voltage VRWM(V) 5 |
Peak Pulse Current IPP(A) 3 |
Max. Clamping Voltage VC (V) 20 |
Junction Capacitance CJ(pF) 0.3 |
Peak Pluse Power Dissipation PPPK (W) 50 |
Maximum Reverse Leakage IR (uA) 0.2 |
Breakdown Voltage Min VBR(V) 6 |
Breakdown Voltage Max VBR(V) 8.5 |
Junction Temperature Tj [max] (°C) 150 |
VESDIEC61000-4-2 Air/Contact (kV) ±15/±8 |
Packing Information
| Part Number | Package Type | Packing Specification | Component Weight (g) | Marking Code | Packing Info |
|---|---|---|---|---|---|
| ESDULC5V0LBWFHE3 | DFN1006-2L(SWF) | DFN1006-2L(SWF) | 0.0010 | B5 | Tape&Reel: 10Kpcs/Reel; |
Environmental Information
Download
| MSL |
|---|
| 1 |
