SiC Schottky Barrier Diodes (SBDs) | Status : Active

SICPT40120Y

Check Stock Add To Cart
Datasheet ECAD Model

Product Detail

Part Number Number of Functions Average
Forward
Current
IF(AV)(A)		 Peak Repetitive
Reverse
Voltage
VRRM (V)		 Forward
Voltage
VF
(V) [max]@IF(A)		 Junction
Temperature
Tj [max] (°C)		 At Rated Forward
Current
IF (A)		 Reverse Voltage
Leakage
Current
IR (uA)  [max] @ VR		 Maximum DC
Blocking
Voltage
VR (V)		 Peak Forward
Surge
Current
IFSM (A)
SICPT40120Y Single 40 1200 1.6 175 40 20 1200 300
Part Number SICPT40120Y Number of Functions Single Average
Forward
Current
IF(AV)(A)  40 		Peak Repetitive
Reverse
Voltage
VRRM (V)  1200 		Forward
Voltage
VF
(V) [max]@IF(A)  1.6 		Junction
Temperature
Tj [max] (°C)  175 		At Rated Forward
Current
IF (A)  40 		Reverse Voltage
Leakage
Current
IR (uA)  [max] @ VR  20 		Maximum DC
Blocking
Voltage
VR (V)  1200 		Peak Forward
Surge
Current
IFSM (A)  300

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code

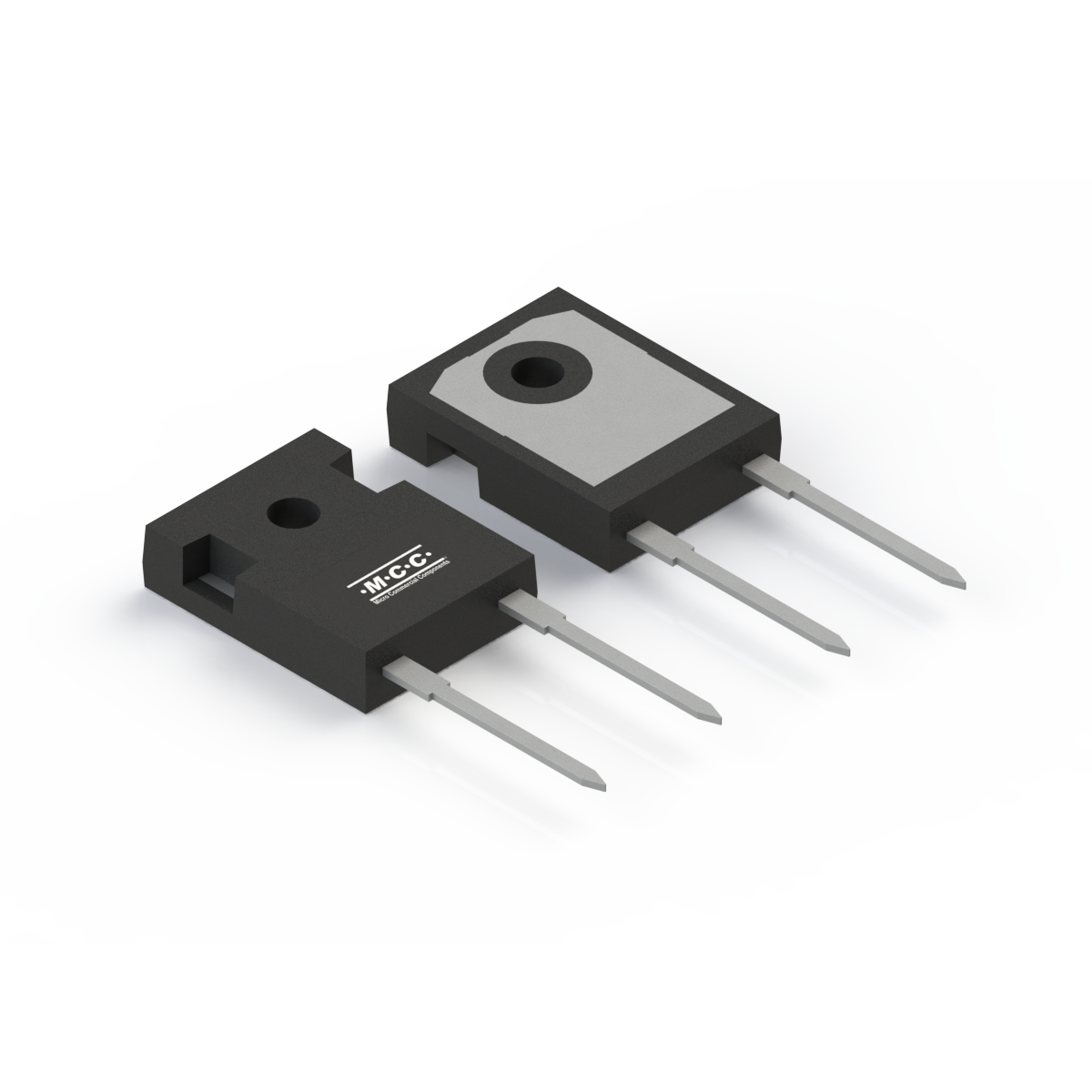

SICPT40120Y TO-247AD TO-247AD 4.0500 SICPT40120Y

Environmental Information link icon

Reliability Report Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Environmental Compliance Download
Tin Whisker Test Report
Tin Whisker Test Report
