Medium Power Bipolar Transistors | Status :
Active
BCX54-16

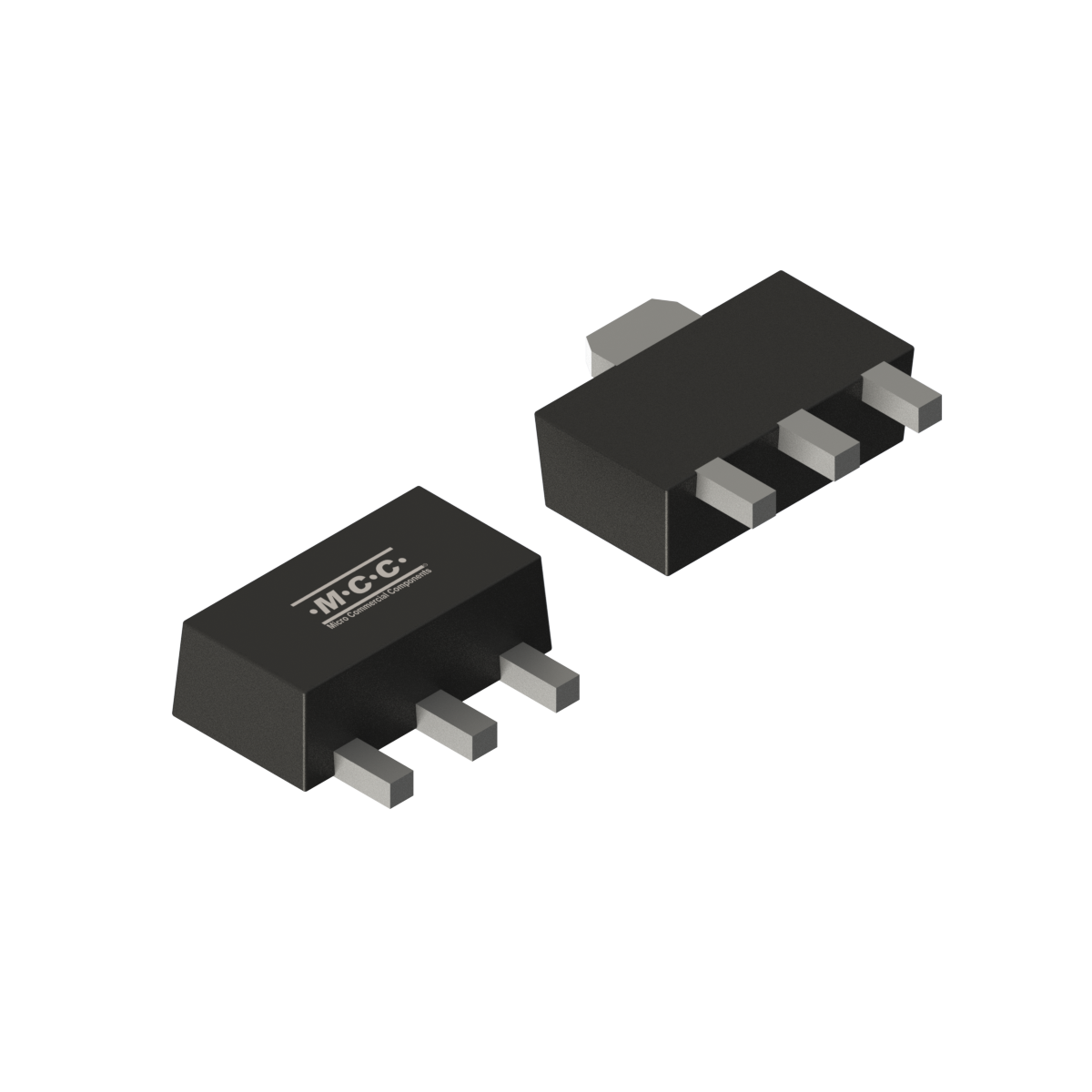

- Package Type:SOT-89
- Packing Info: Tape: 1K/Reel , 40K/Ctn;
- Category:Medium Power Bipolar Transistors
Product Detail
| Part Number | Number of Functions | Polarity | PD (W) | VCEO(V) | IC (A) | HFE [min] | HFE [max] | VCE(sat) [max] (V) |
fT(MHz) | Tj [max] (°C) |
|---|---|---|---|---|---|---|---|---|---|---|
| BCX54-16 | Single | NPN | 0.5 | 45 | 1.00 | 100 | 250 | 0.5 | 130 | 150 |
| Part Number BCX54-16 | Number of Functions Single | Polarity NPN | PD (W) 0.5 | VCEO(V) 45 | IC (A) 1.00 | HFE [min] 100 | HFE [max] 250 |
VCE(sat) [max] (V) 0.5 |
fT(MHz) 130 | Tj [max] (°C) 150 |
Packing Information
Environmental Information
Download
| Tin Whisker Test Report | Halogen Free |
|---|---|
|
|
ECN/PCN
| ECN/PCN No# | Title | Issued Date | |
|---|---|---|---|
| 122421-1 | MCC will update the products packing method for SOT-223 & SOT-89 packages. |
|
12/24/2021 |
| 113021-1 | Additional new wafer source for SOT-89 & SOT-223 Parts |
|
11/30/2021 |
