Pre-Biased Transistors | Status : Active
Automotive

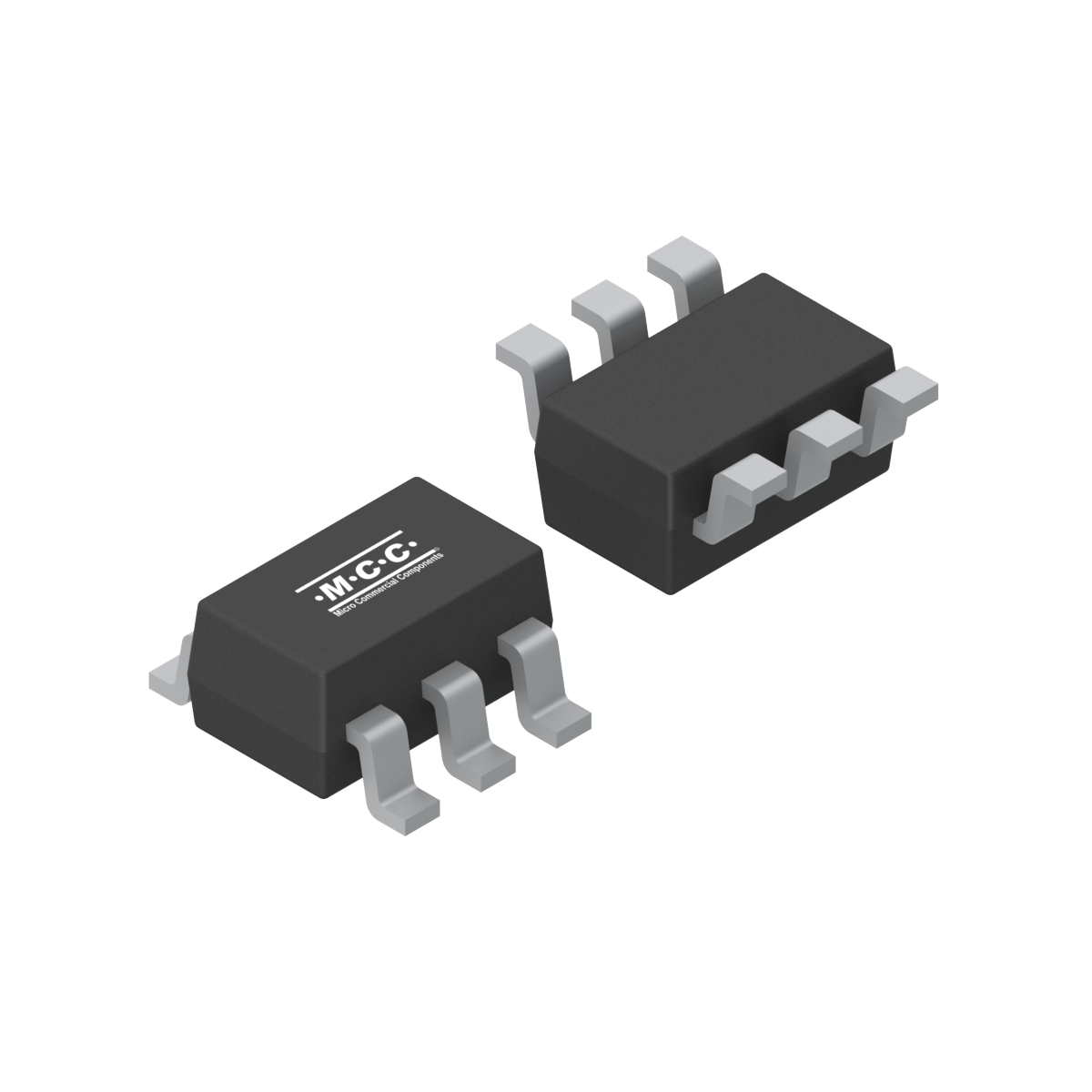

UMD12NHE3

Check Stock Add To Cart
Datasheet ECAD Model

Product Detail

Part Number Number of Functions Polarity IO(mA) R1 Typ (KΩ) R2 Typ (KΩ) VCC(V) fT(MHz) PD(mW) Tj [max] (°C)
UMD12NHE3 Dual(R1/R2) NPN+PNP 100/-100 47 47 50/-50 250 150 150
Part Number UMD12NHE3 Number of Functions Dual(R1/R2) Polarity NPN+PNP IO(mA)  100/-100 R1 Typ (KΩ)  47 R2 Typ (KΩ)  47 VCC(V)  50/-50 fT(MHz)  250 PD(mW)  150 Tj [max] (°C)  150

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code Packing Info
UMD12NHE3 SOT-363 SOT-363 0.0090 D12 Tape: 3K/Reel, 120K/Ctn;

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
Tin Whisker Test Report Halogen Free
Tin Whisker Test Report Halogen Free
