Small Signal Bipolar Transistors | Status : Active

BC857S

Check Stock Add To Cart
Datasheet ECAD Model

Product Detail

Part Number Number of Functions Polarity PD (W) VCEO(V) IC (A) HFE [min] HFE [max] VCE(sat) [max]
(V)		 fT(MHz) Tj [max] (°C)
BC857S Dual PNP*2 0.3 -45 -0.2 125 630 -0.3 200 150
Part Number BC857S Number of Functions Dual Polarity PNP*2 PD (W)  0.3 VCEO(V)  -45 IC (A)  -0.2 HFE [min]  125 HFE [max]  630 VCE(sat) [max]
(V)  -0.3 		fT(MHz)  200 Tj [max] (°C)  150

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code Packing Info

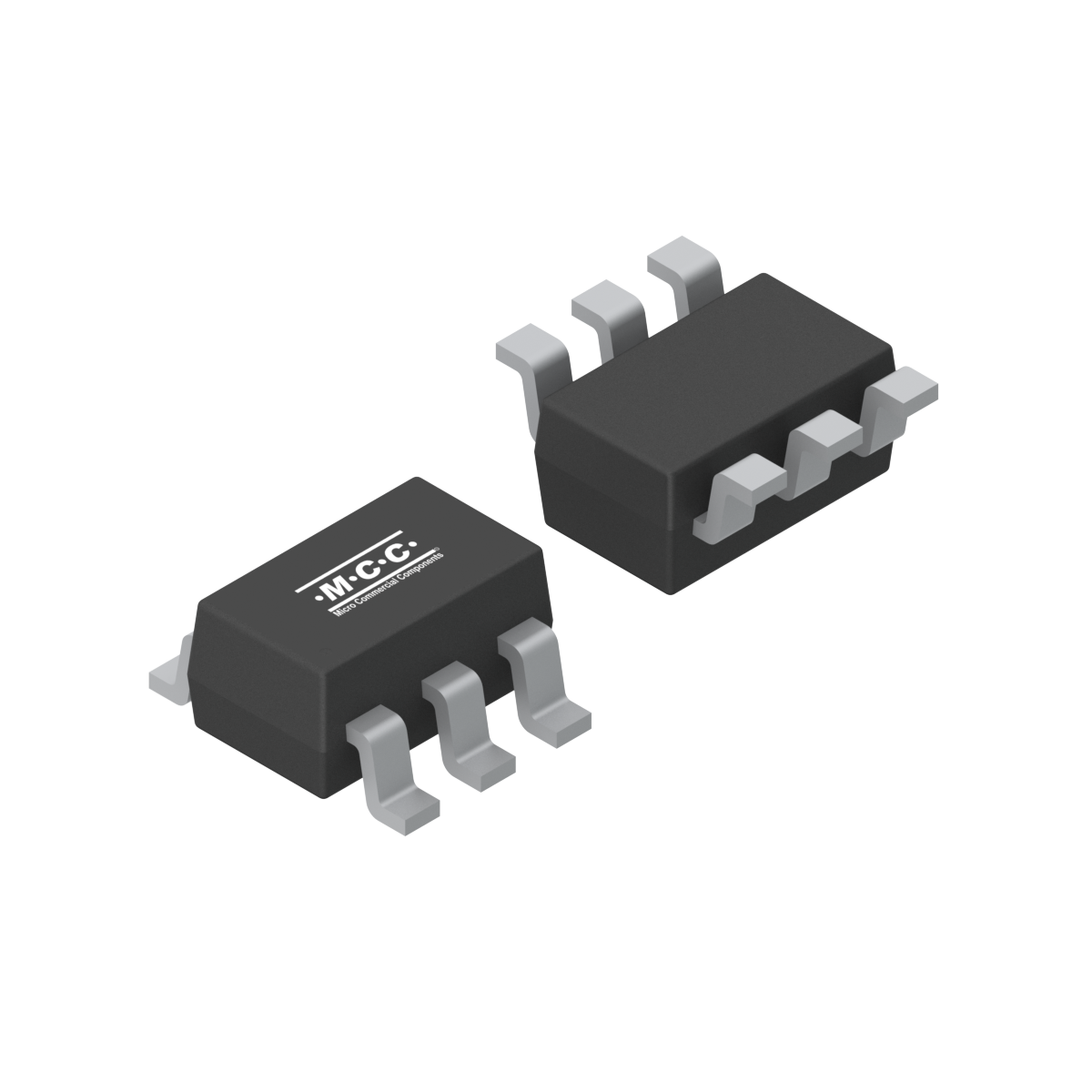

BC857S SOT-363 SOT-363 0.0090 3C Tape: 3K/Reel , 120K/Ctn;

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
Tin Whisker Test Report Halogen Free
Tin Whisker Test Report Halogen Free

ECN/PCN

ECN/PCN No# Title PDF Issued Date
080111 Remove the plastic ziploc bag of the reel for SOT&SOD Packages PCN#080111 PDF 08/15/2011
070103 Pb(Lead) Free Plating Conversion PDF 07/01/2003
