Small Signal Bipolar Transistors | Status : Active
Automotive

MMDT3946HE3

Check Stock Add To Cart
Datasheet ECAD Model

Product Detail

Part Number Number of Functions Polarity PD (W) VCEO(V) IC (A) HFE [min] HFE [max] VCE(sat) [max]
(V)		 fT(MHz) Tj [max] (°C)
MMDT3946HE3 Dual NPN+PNP 0.2 40/-40 0.2/-0.2 100/100 300/300 0.3/-0.4 300/250 150
Part Number MMDT3946HE3 Number of Functions Dual Polarity NPN+PNP PD (W)  0.2 VCEO(V)  40/-40 IC (A)  0.2/-0.2 HFE [min]  100/100 HFE [max]  300/300 VCE(sat) [max]
(V)  0.3/-0.4 		fT(MHz)  300/250 Tj [max] (°C)  150

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code Packing Info

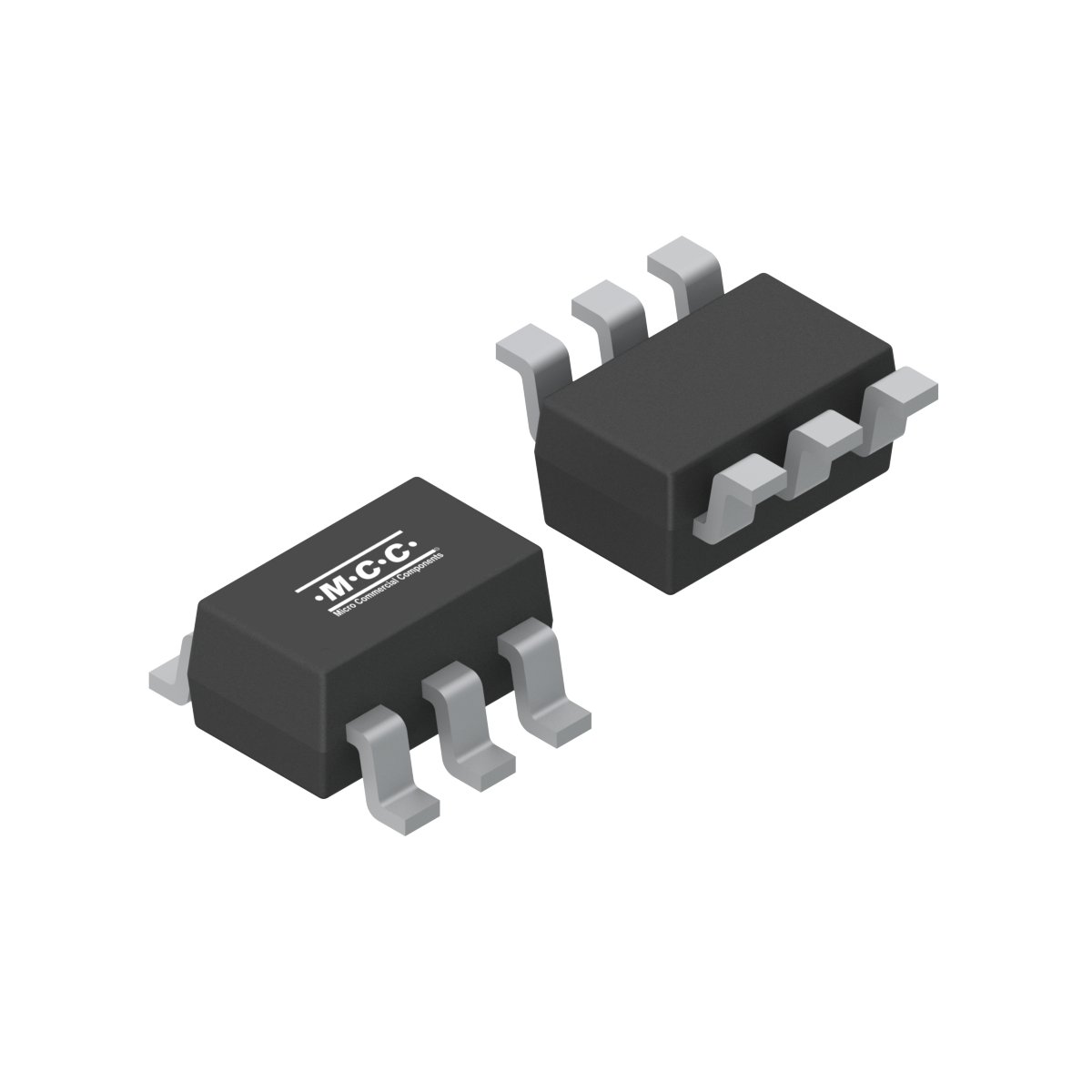

MMDT3946HE3 SOT-363 SOT-363 0.0090 K46 Tape: 3K/Reel , 120K/Ctn;

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
Tin Whisker Test Report Halogen Free
Tin Whisker Test Report Halogen Free
