Small Signal MOSFETS | Status : Active
Automotive

2SK3019HE3

Check Stock Add To Cart
Datasheet ECAD Model

Product Detail

Part Number Number of Functions Channel VDS VGS ID RDS(ON)
Max
@VGS=10V 		RDS(ON)
Max
@VGS=4.5V 		RDS(ON)
Max
@VGS=2.5V 		VGS(th)
Max 		ESD
Diode
2SK3019HE3 Single N 30 ±20 0.115 4 5 5.4 1.5 Yes
V V A Ω Ω Ω V
Part Number 2SK3019HE3 Number of Functions Single Channel N VDS  30 VGS  ±20 ID  0.115 RDS(ON) Max @VGS=10V  4 RDS(ON) Max @VGS=4.5V  5 RDS(ON) Max @VGS=2.5V  5.4 VGS(th) Max  1.5 ESD Diode  Yes

Package

Part Number Package Type Packing Specification Component Weight (g) Marking Code Packing Info

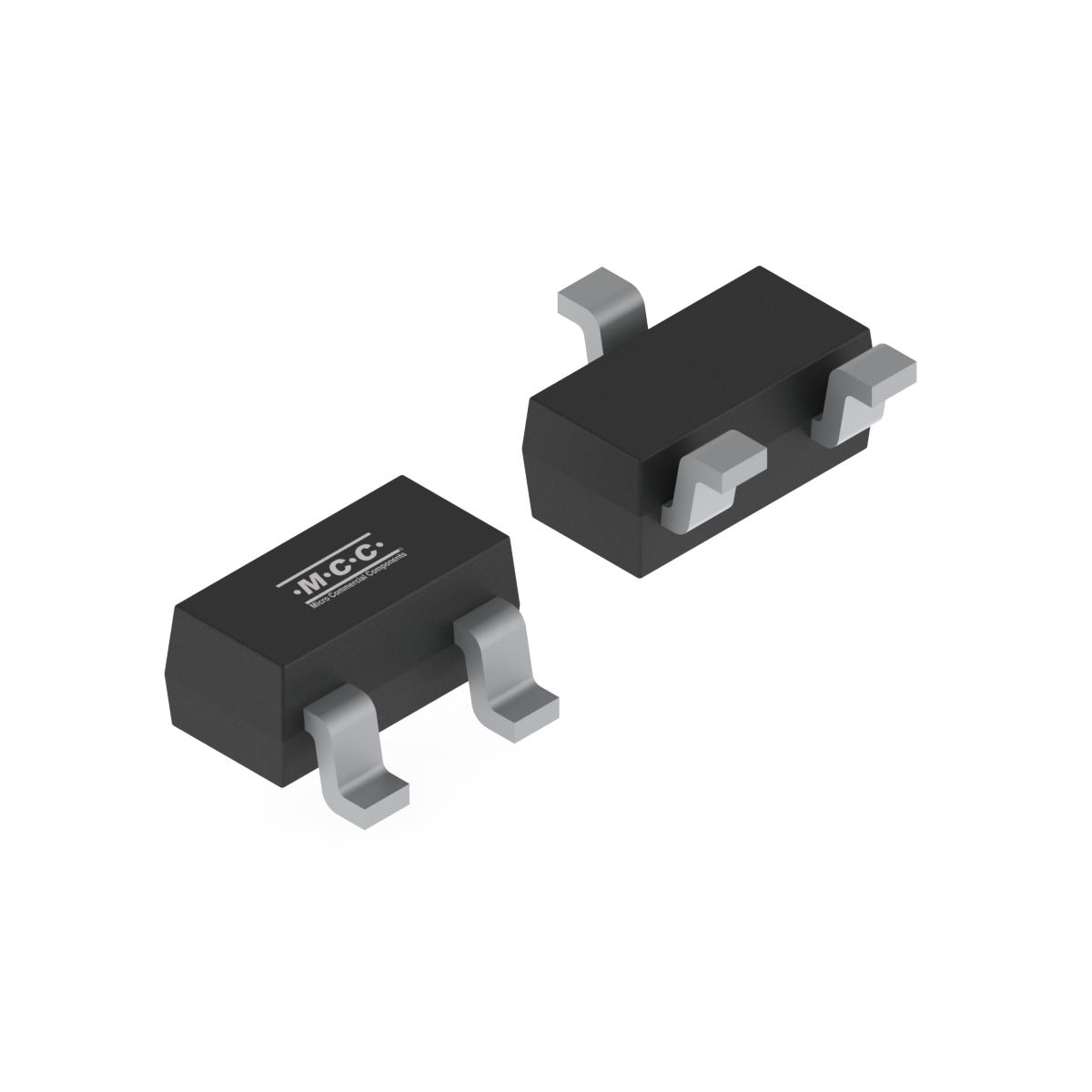

2SK3019HE3 Package Type Image SOT-523 SOT-523 0.0029 KN Tape: 3K/Reel, 120K/Ctn.;

Reliability & Chemical Content link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
Tin Whisker Test Report Halogen Free
Tin Whisker Test Report Halogen Free
