Schottky Barrier Rectifiers | Status : Active
Automotive

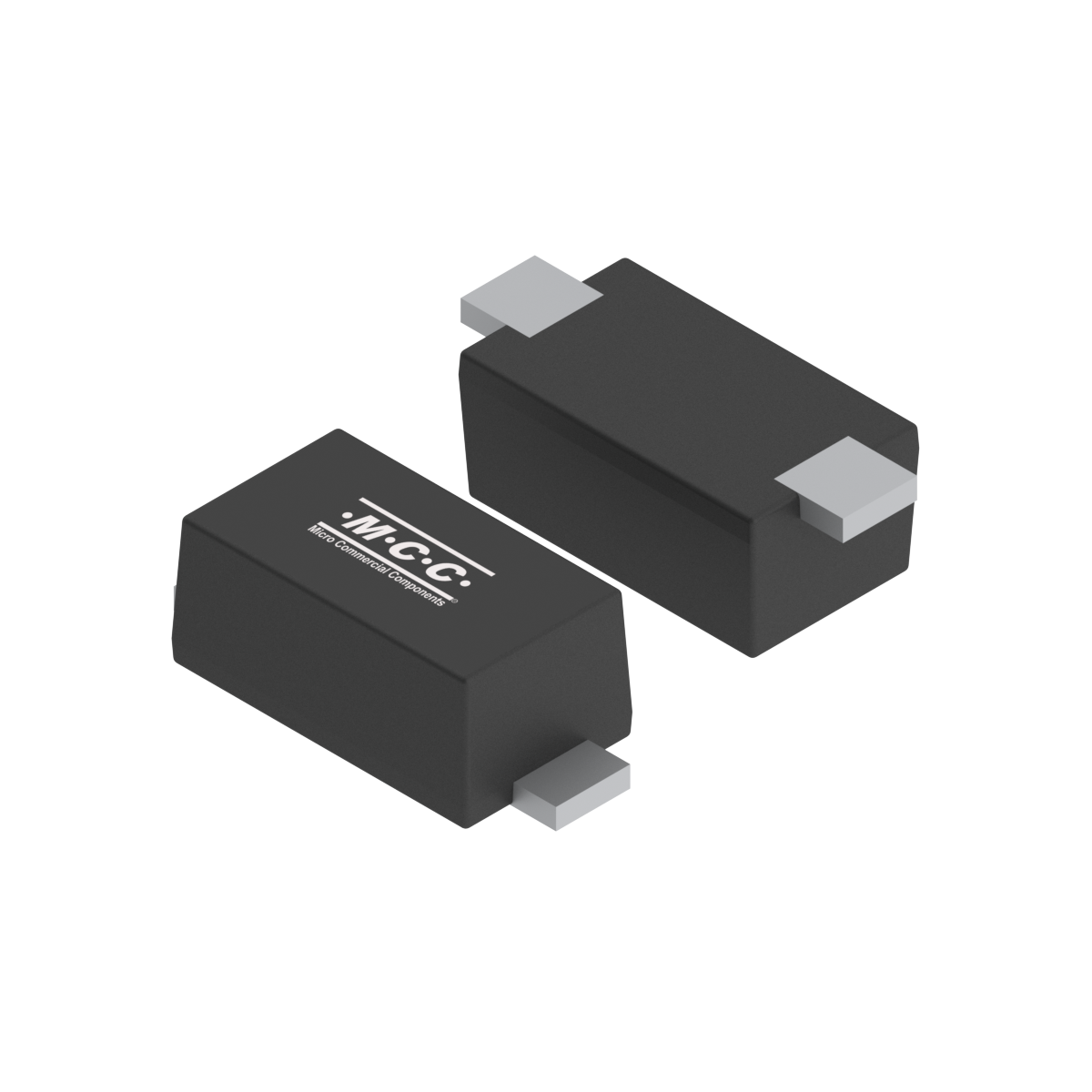

SMD14PLQ

Check Stock Add To Cart
Datasheet ECAD Model

Product Detail

Part Number Number of Functions IF(AV)(A) VRWM (V) VF
(V) [max]@IF(A)		 IR (uA)  [max] @
VR		 IFSM (A) VR (V) IF(A) Tj [max]
(°C)
SMD14PLQ Single 1 40 0.5 100 40 40 1 150
Part Number SMD14PLQ Number of Functions Single IF(AV)(A)  1 VRWM (V)  40 VF
(V) [max]@IF(A)  0.5 		IR (uA)  [max] @
VR  100 		IFSM (A)  40 VR (V)  40 IF(A)  1 Tj [max]
(°C)  150

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code Packing Info
SMD14PLQ SOD-123FL SOD-123FL 0.0180 D4 Tape&Reel: 2.5Kpcs/Reel;

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
Tin Whisker Test Report MSL Halogen Free
Tin Whisker Test Report 1 Halogen Free
