Schottky Barrier Rectifiers | Status : Active
Automotive

SK34AFLQ

Check Stock Add To Cart
Datasheet ECAD Model

Product Detail

Part Number Number of Functions IF(AV)(A) VRWM (V) VF
(V) [max]@IF(A)		 IR (uA)  [max] @
VR		 IFSM (A) VR (V) IF(A) Tj [max]
(°C)
SK34AFLQ Single 3 40 0.5 100 80 40 3
Part Number SK34AFLQ Number of Functions Single IF(AV)(A)  3 VRWM (V)  40 VF
(V) [max]@IF(A)  0.5 		IR (uA)  [max] @
VR  100 		IFSM (A)  80 VR (V)  40 IF(A)  3 Tj [max]
(°C)

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code Packing Info

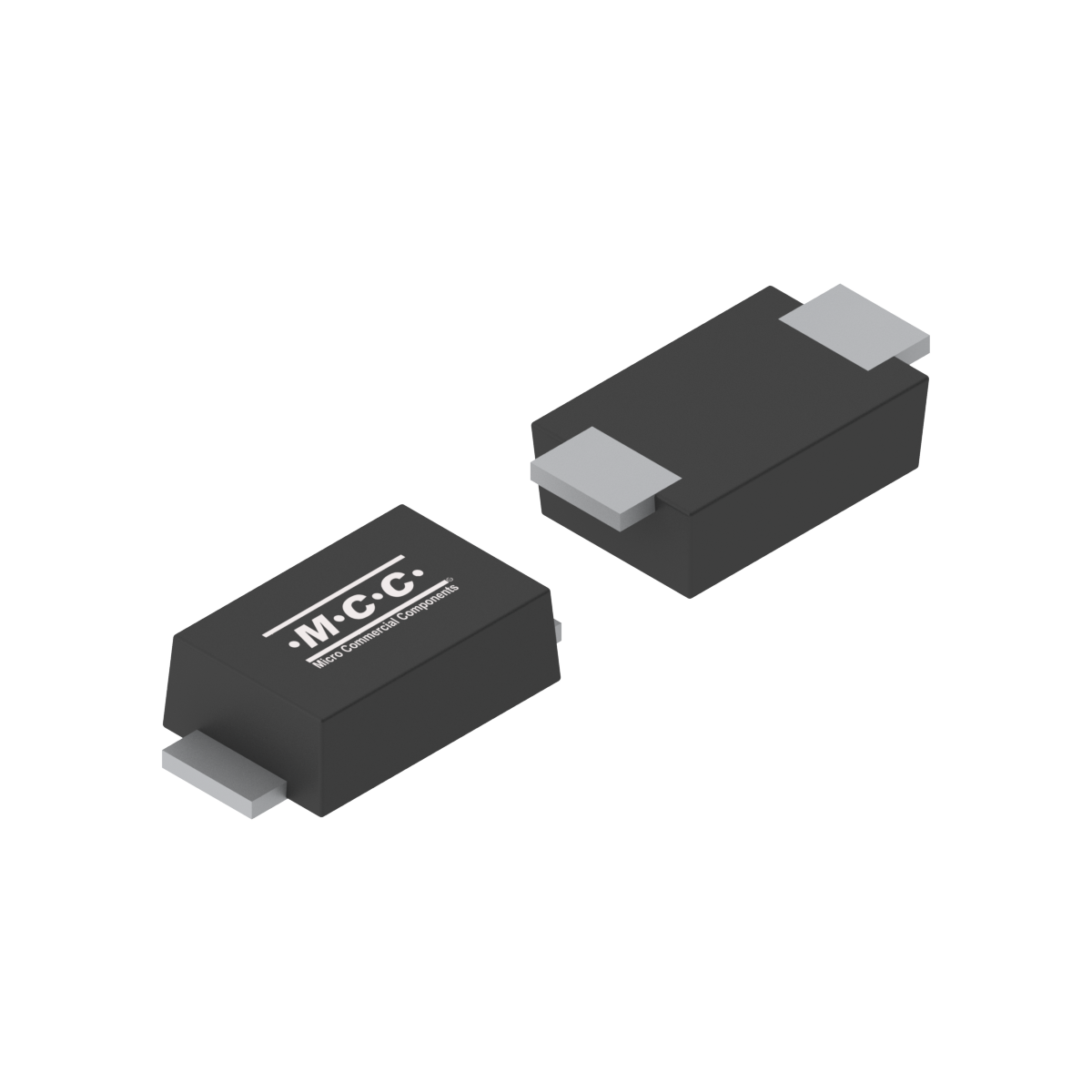

SK34AFLQ DO-221AC DO-221AC 0.0350 SK34A Tape&Reel: 10Kpcs/Reel;

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
Tin Whisker Test Report MSL Halogen Free
Tin Whisker Test Report 1 Halogen Free
