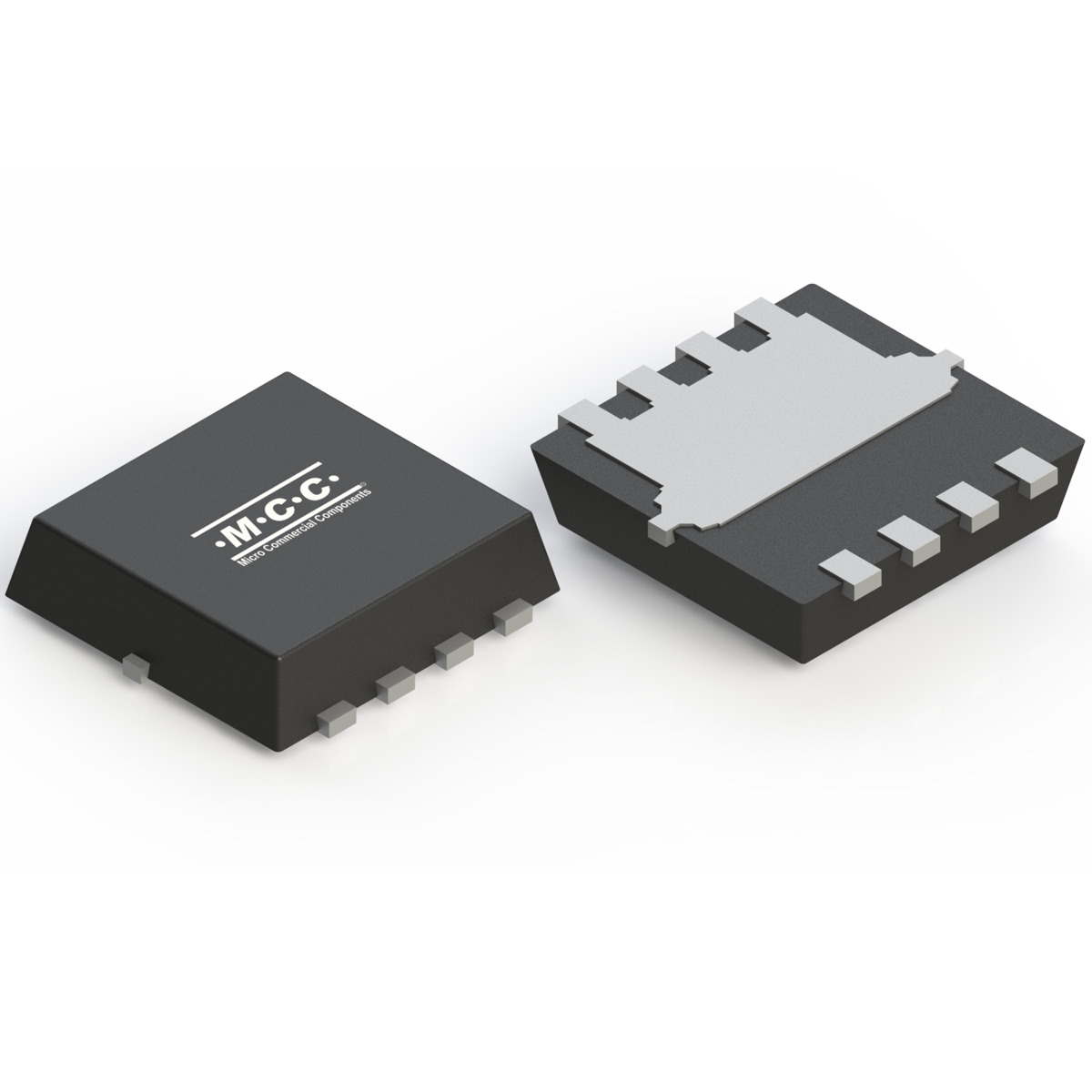

MCG50P03B
- Package Type:PDFN3333
- Packing Info:Tape&Reel:5Kpcs/Reel;
- Category:Power MOSFETS
Product Detail
| Part Number | Number of Functions | Channel | Drain-Source Voltage VDS (V) |
Gate-Source Voltage VGS (V) |
Drain Current ID (A) |
Drain-Source On-Resistance RDS(ON) Max @VGS=10V (Ω) |
Drain-Source On-Resistance RDS(ON) Max @VGS=4.5V (Ω) |
Drain-Source On-Resistance RDS(ON) Max @VGS=2.5V (Ω) |
Gate Threshold Voltage VGS(th) Min (V) |
Gate Threshold Voltage VGS(th) Max (V) |
ESD Diodes |
Junction Temperature Tj [max] (°C) |
Single Pulsed Avalanche Energy EAS(mJ) |
Pulsed Drain Current IDM(A) |
Input Capacitance Ciss(pF) |
Output Capacitance Coss(pF) |
Power Rating PD(W) |
Total Gate Charge Qg(nC) |
Gate-Drain Charge Qgd(nC) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MCG50P03B | Single | P | -30 | ±25 | -50 | 0.011 | 0.019 | -1 | -3 | No | 150 | 95 | -200 | 1745 | 300 | 56 | 38 | 10 |
| Part Number MCG50P03B | Number of Functions Single | Channel P |
Drain-Source Voltage VDS (V) -30 |
Gate-Source Voltage VGS (V) ±25 |
Drain Current ID (A) -50 |
Drain-Source On-Resistance RDS(ON) Max @VGS=10V (Ω) 0.011 |
Drain-Source On-Resistance RDS(ON) Max @VGS=4.5V (Ω) 0.019 |
Drain-Source On-Resistance RDS(ON) Max @VGS=2.5V (Ω) |
Gate Threshold Voltage VGS(th) Min (V) -1 |
Gate Threshold Voltage VGS(th) Max (V) -3 |
ESD Diodes No |
Junction Temperature Tj [max] (°C) 150 |
Single Pulsed Avalanche Energy EAS(mJ) 95 |
Pulsed Drain Current IDM(A) -200 |
Packing Information
Environmental Information
Download
| MSL |
|---|
| 1 |
