TVS | Status : Active
Automotive

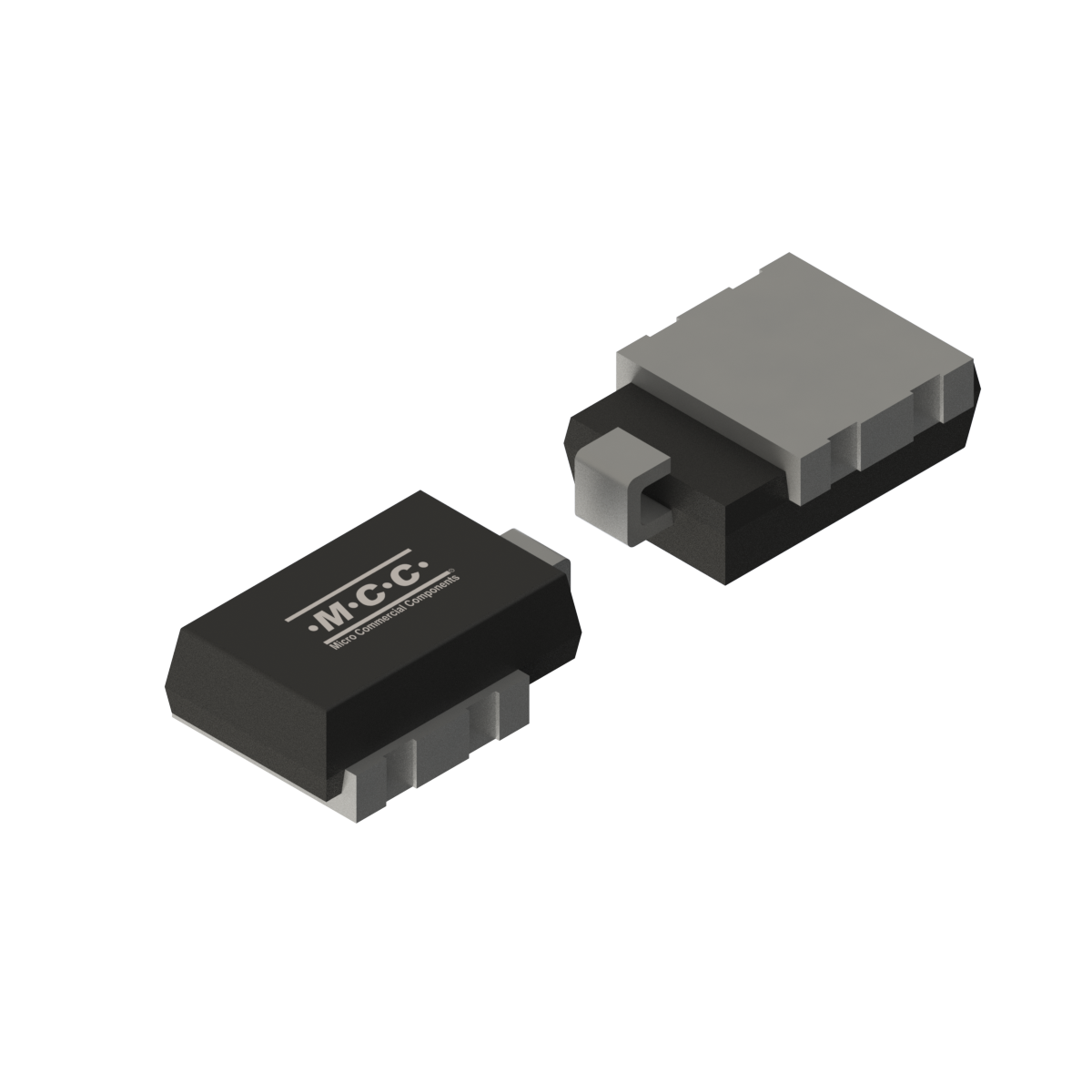

SM5S18CAHE3

  • Package Type:DO-218AB
  • Packing Info:Tape&Reel: 750pcs/Reel;
  • Category:TVS
Check Stock Add To Cart
Datasheet ECAD Model

Product Detail

Part Number Configuration Peak Pluse
Power
Dissipation
PPPM (W)		 Reverse
Standoff
Voltage
VRWM(V)		 Reverse
Leakage
IR(uA)		 Max.
Clamping
Voltage
VC (V)		 Peak Pulse
Current
IPP(A) 		Breakdown
Voltage
Min VBR(V)		 Breakdown
Voltage
Max VBR(V)		 Junction
Temperature
Tj [max] (°C)
SM5S18CAHE3 Bidirectional 3600 18 10 29.2 123 20 22.1 175
Part Number SM5S18CAHE3 Configuration Bidirectional Peak Pluse
Power
Dissipation
PPPM (W)  3600 		Reverse
Standoff
Voltage
VRWM(V)  18 		Reverse
Leakage
IR(uA)  10 		Max.
Clamping
Voltage
VC (V)  29.2 		Peak Pulse
Current
IPP(A)  123 		Breakdown
Voltage
Min VBR(V)  20 		Breakdown
Voltage
Max VBR(V)  22.1 		Junction
Temperature
Tj [max] (°C)  175

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code Packing Info
SM5S18CAHE3 DO-218AB DO-218AB 2.8600 SM5S18CA Tape&Reel: 750pcs/Reel;

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
Tin Whisker Test Report
Tin Whisker Test Report
