Bridge Rectifiers | Status : NRND

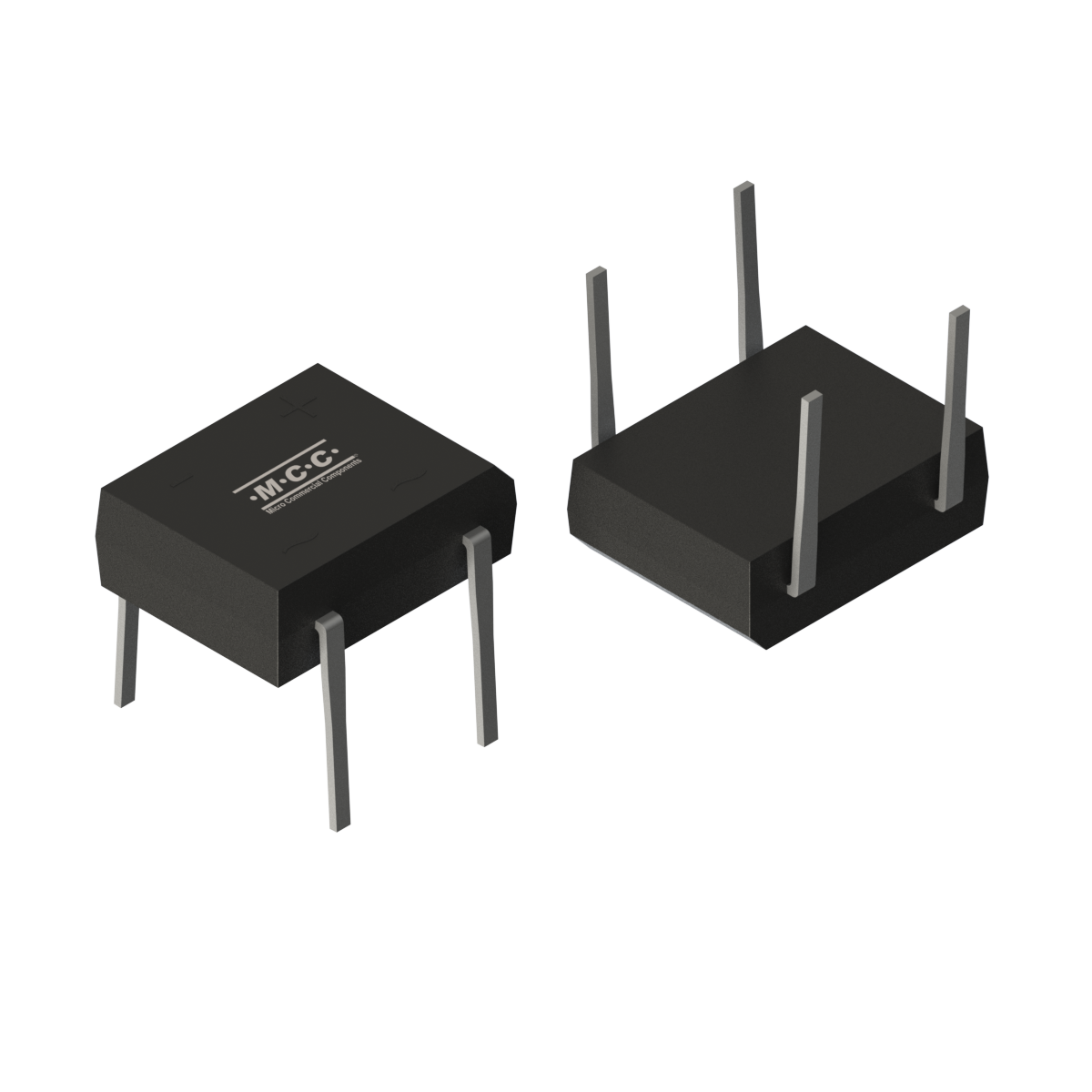

DB101

  • Package Type:DB-1
  • Packing Info:Tube : 50pcs/Tube, 2.5K/Box, 10K/Ctn;
  • Category:Bridge Rectifiers
  • MPN:DB101-BP
Check Stock Add To Cart
Datasheet ECAD Model Reliability Data

Product Detail

Part Number Number of Functions IF(AV)(A) VRWM (V) VF
(V) [max]@IF(A)		 IR (uA)  [max] @
VR		 IFSM (A) IF(A) VR (V) Tj [max] (°C)
DB101 1-Phase Bridge 1 50 1 5 30 0.5 50 150
Part Number DB101 Number of Functions 1-Phase Bridge IF(AV)(A)  1 VRWM (V)  50 VF
(V) [max]@IF(A)  1 		IR (uA)  [max] @
VR  5 		IFSM (A)  30 IF(A)  0.5 VR (V)  50 Tj [max] (°C)  150

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code
DB101 DB-1 DB-1 0.5350 DB101

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
Tin Whisker Test Report Halogen Free MTBF FIT
Tin Whisker Test Report Halogen Free 0.00 0.0

ECN/PCN

ECN/PCN No# Title PDF Issued Date
080115-2 MCC Introduces Auto-Soldering Process For DB-1&SDB-1 Package PDF 08/01/2015
070103 Pb(Lead) Free Plating Conversion PDF 07/01/2003
