Bridge Rectifiers | Status : Active

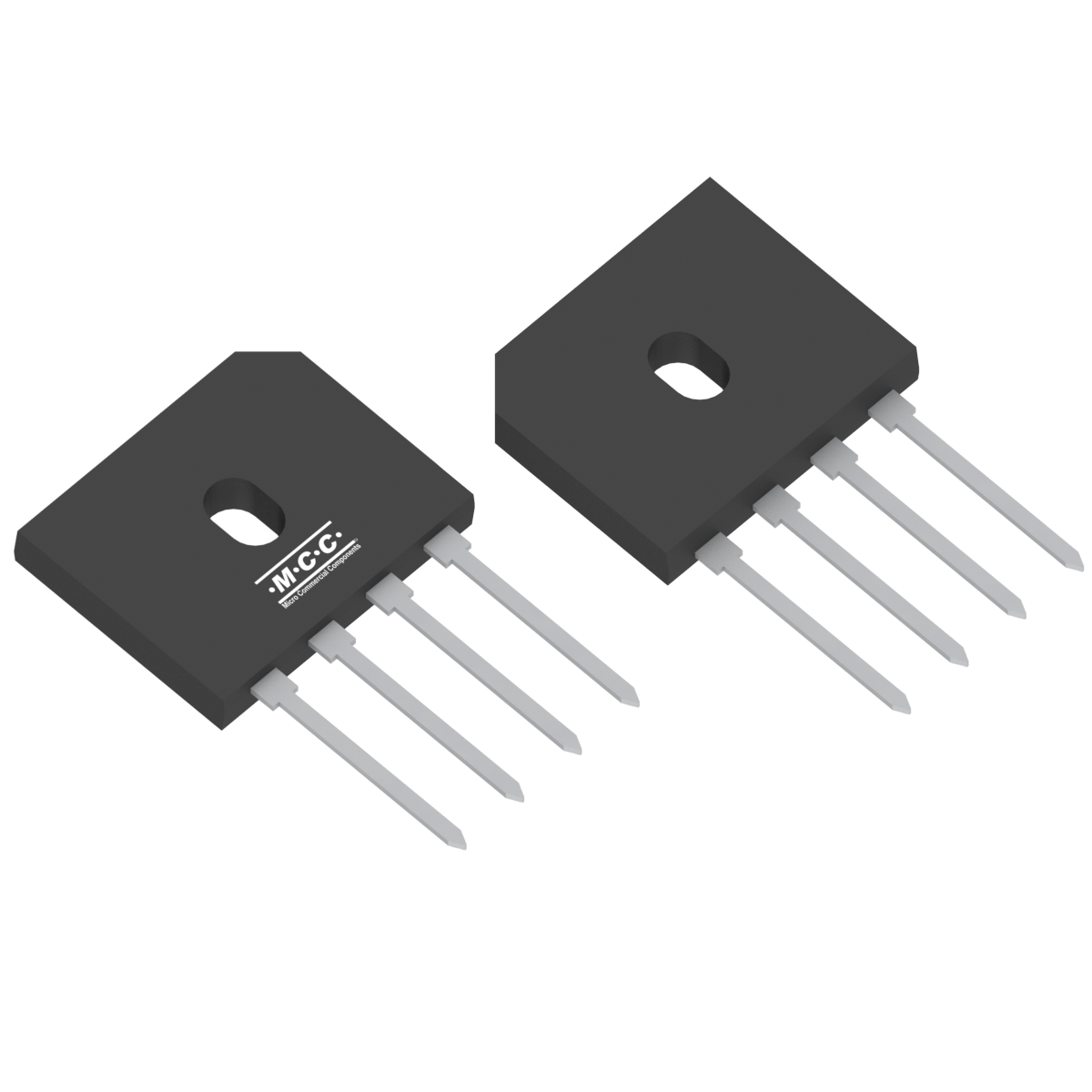

GBU10B

  • Package Type:GBU
  • Packing Info:Tube:20pcs/Tube, 1K/Box, 2K/Ctn;
  • Category:Bridge Rectifiers
  • MPN:GBU10B-BP
Check Stock Add To Cart
Datasheet ECAD Model

Product Detail

Part Number Number of Functions IF(AV)(A) VRWM (V) VF
(V) [max]@IF(A)		 IR (uA)  [max] @
VR		 IFSM (A) IF(A) VR (V) Tj [max] (°C)
GBU10B 1-Phase Bridge 10 100 1 5 240 5 100 150
Part Number GBU10B Number of Functions 1-Phase Bridge IF(AV)(A)  10 VRWM (V)  100 VF
(V) [max]@IF(A)  1 		IR (uA)  [max] @
VR  5 		IFSM (A)  240 IF(A)  5 VR (V)  100 Tj [max] (°C)  150

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code
GBU10B GBU GBU 4.0280 GBU10B

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
Tin Whisker Test Report
Tin Whisker Test Report

ECN/PCN

ECN/PCN No# Title PDF Issued Date
021110 Bridge Rectifiers Min/Mult Quantity Update PDF 03/01/2010
080001 GBU Series Bridge Marking Side Adjustment PDF 04/01/2008
070103 Pb(Lead) Free Plating Conversion PDF 07/01/2003
