Bridge Rectifiers | Status : Active

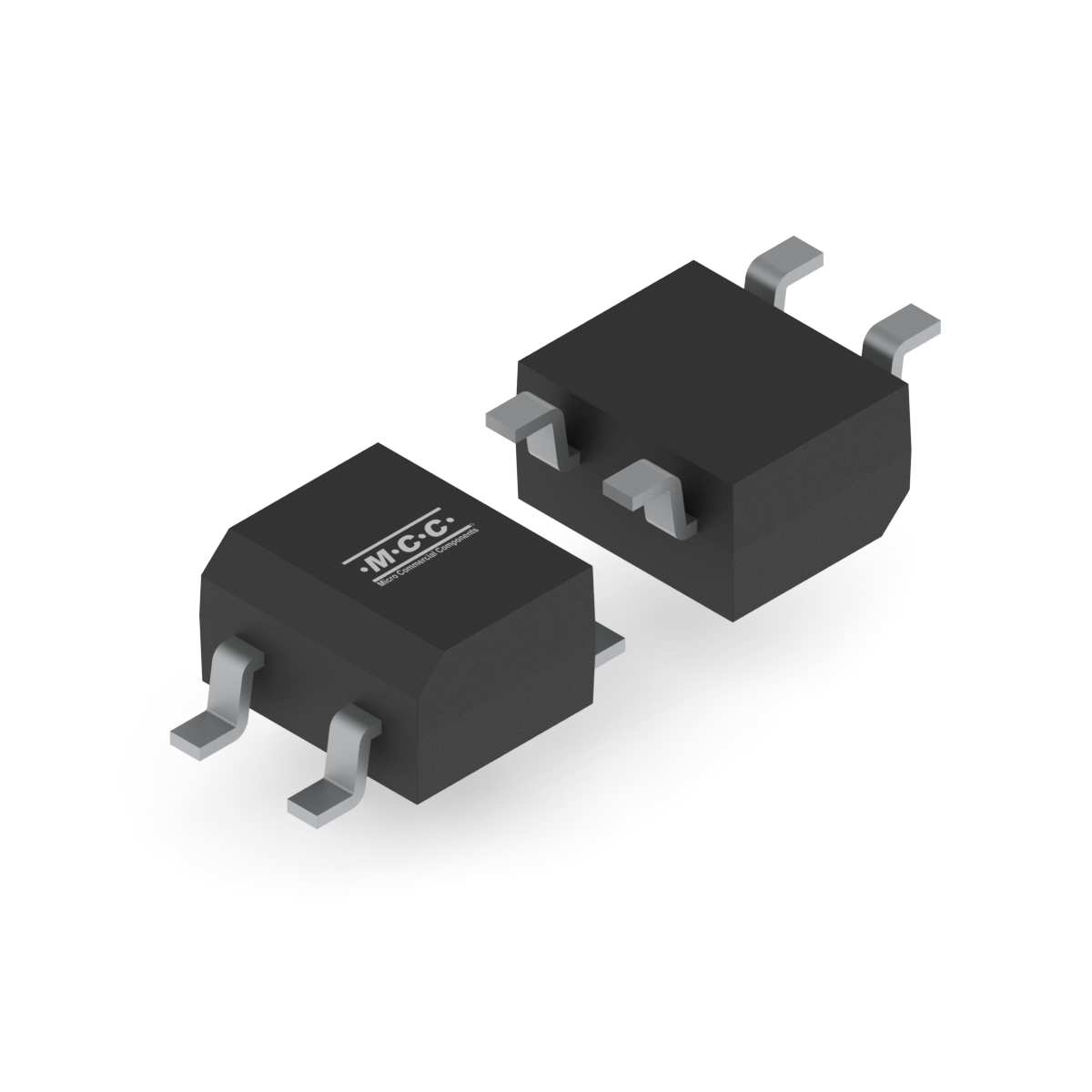

MB1S

  • Package Type:MBS-1
  • Packing Info:Tape : 3K/Reel, 42K/Ctn;
  • Category:Bridge Rectifiers
  • MPN:MB1S-TP
Check Stock Add To Cart
Datasheet ECAD Model

Product Detail

Part Number Number of Functions IF(AV)(A) VRWM (V) VF
(V) [max]@IF(A)		 IR (uA)  [max] @
VR		 IFSM (A) IF(A) VR (V) Tj [max] (°C)
MB1S 1-Phase Bridge 0.5 100 1 5 35 0.4 100 150
Part Number MB1S Number of Functions 1-Phase Bridge IF(AV)(A)  0.5 VRWM (V)  100 VF
(V) [max]@IF(A)  1 		IR (uA)  [max] @
VR  5 		IFSM (A)  35 IF(A)  0.4 VR (V)  100 Tj [max] (°C)  150

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code Packing Info
MB1S MBS-1 MBS-1 0.1360 MB1S Tape : 3K/Reel, 42K/Ctn;

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
Tin Whisker Test Report
Tin Whisker Test Report

ECN/PCN

ECN/PCN No# Title PDF Issued Date
070103 Pb(Lead) Free Plating Conversion PDF 07/01/2003
