Bridge Rectifiers | Status :
NRND

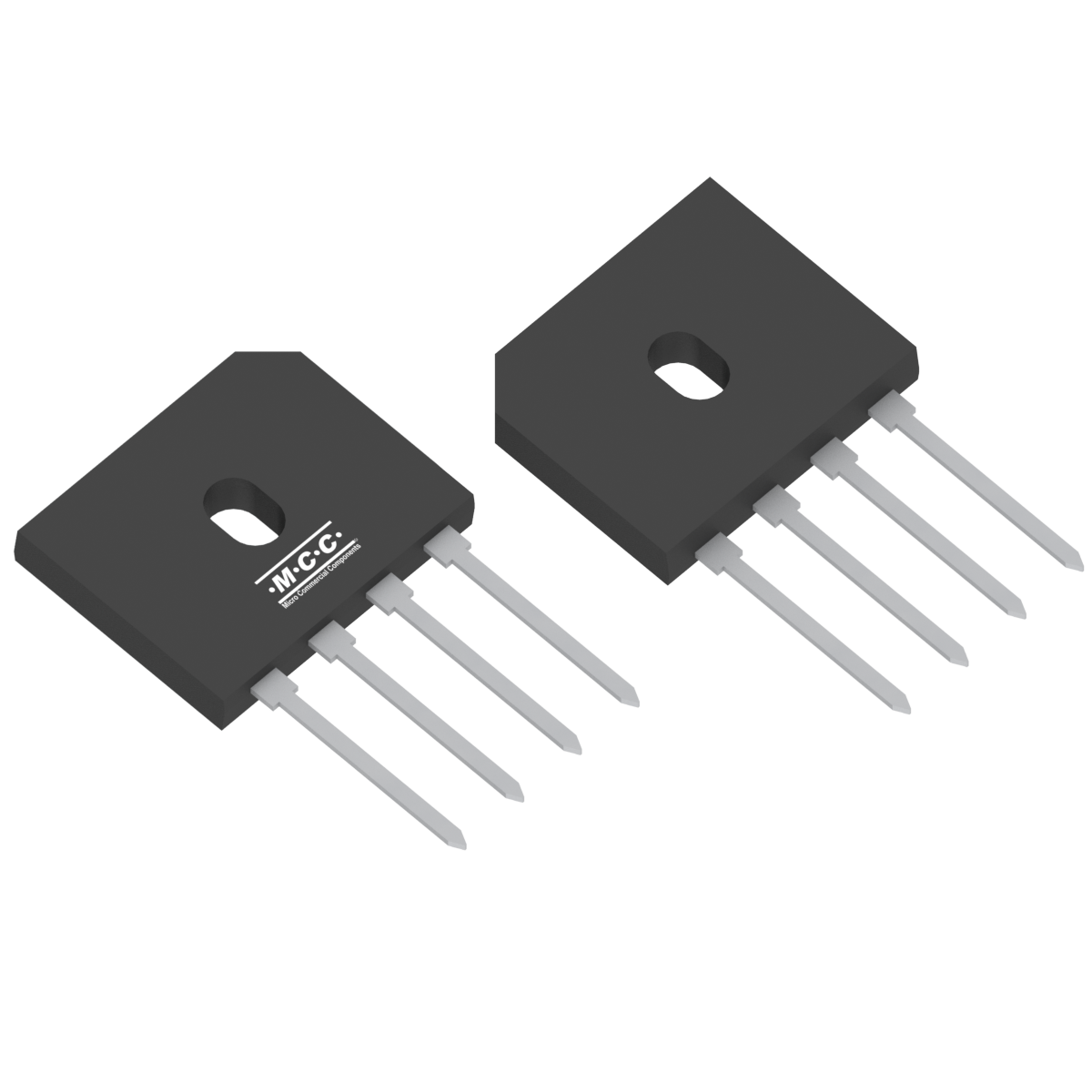

GBU2501
- Package Type:GBU
- Packing Info:Tube : 20pcs/Tube, 1K/Box, 2K/Ctn;
- Category:Bridge Rectifiers
- MPN:GBU2501-BP
Product Detail
| Part Number | Number of Functions | IF(AV)(A) | VRWM (V) | VF (V) [max]@IF(A) |
IR (uA) [max] @ VR |
IFSM (A) | IF(A) | VR (V) | Tj [max] (°C) |
|---|---|---|---|---|---|---|---|---|---|
| GBU2501 | 1-Phase Bridge | 25 | 100 | 1 | 10 | 300 | 12.5 | 100 | 150 |
| Part Number GBU2501 | Number of Functions 1-Phase Bridge | IF(AV)(A) 25 | VRWM (V) 100 |
VF (V) [max]@IF(A) 1 |
IR (uA) [max] @ VR 10 |
IFSM (A) 300 | IF(A) 12.5 | VR (V) 100 | Tj [max] (°C) 150 |
Packing Information
| Part Number | Package Type | Packing Specification | Component Weight (g) | Marking Code |
|---|---|---|---|---|
| GBU2501 | GBU | GBU | 4.0280 | GBU2501 |
Environmental Information
Download
| Tin Whisker Test Report |
|---|
|
