Bridge Rectifiers | Status :
Active

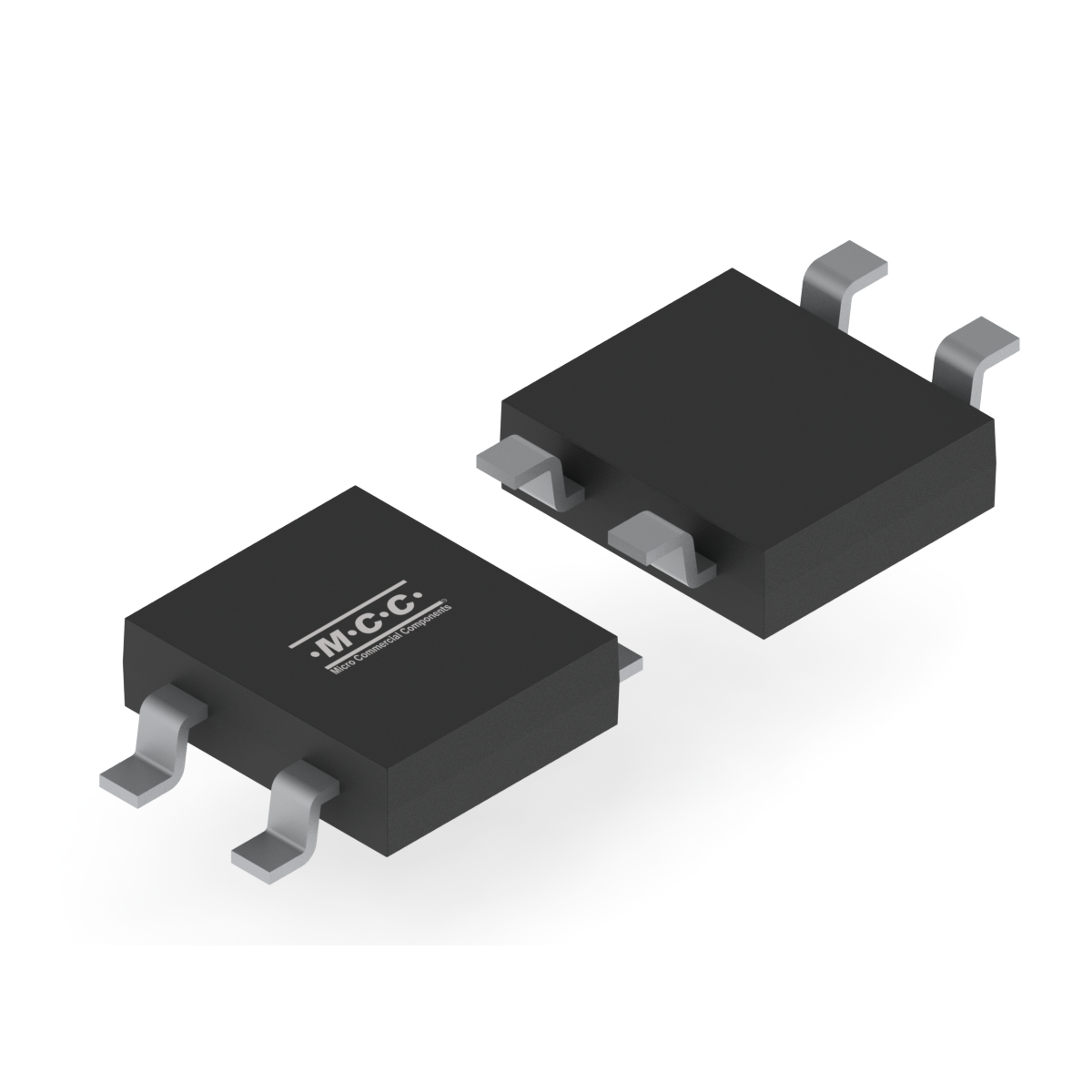

MBL8S
- Package Type:MBLS-1
- Packing Info:Tape&Reel: 4Kpcs/Reel;
- Category:Bridge Rectifiers
- MPN:MBL8S-TP
Product Detail
| Part Number | Number of Functions | IF(AV)(A) | VRWM (V) | VF (V) [max]@IF(A) |
IR (uA) [max] @ VR |
IFSM (A) | IF(A) | VR (V) | Tj [max] (°C) |
|---|---|---|---|---|---|---|---|---|---|
| MBL8S | 1-Phase Bridge | 0.5 | 800 | 1 | 5 | 35 | 0.4 | 800 | 150 |
| Part Number MBL8S | Number of Functions 1-Phase Bridge | IF(AV)(A) 0.5 | VRWM (V) 800 |
VF (V) [max]@IF(A) 1 |
IR (uA) [max] @ VR 5 |
IFSM (A) 35 | IF(A) 0.4 | VR (V) 800 | Tj [max] (°C) 150 |
Packing Information
| Part Number | Package Type | Packing Specification | Component Weight (g) | Marking Code | Packing Info |
|---|---|---|---|---|---|
| MBL8S | MBLS-1 | MBLS-1 | 0.0850 | BL8S | Tape&Reel: 4Kpcs/Reel; |
Environmental Information
Download
| Tin Whisker Test Report |
|---|
|
