Standard Recovery Rectifiers | Status :
Active
GP12022

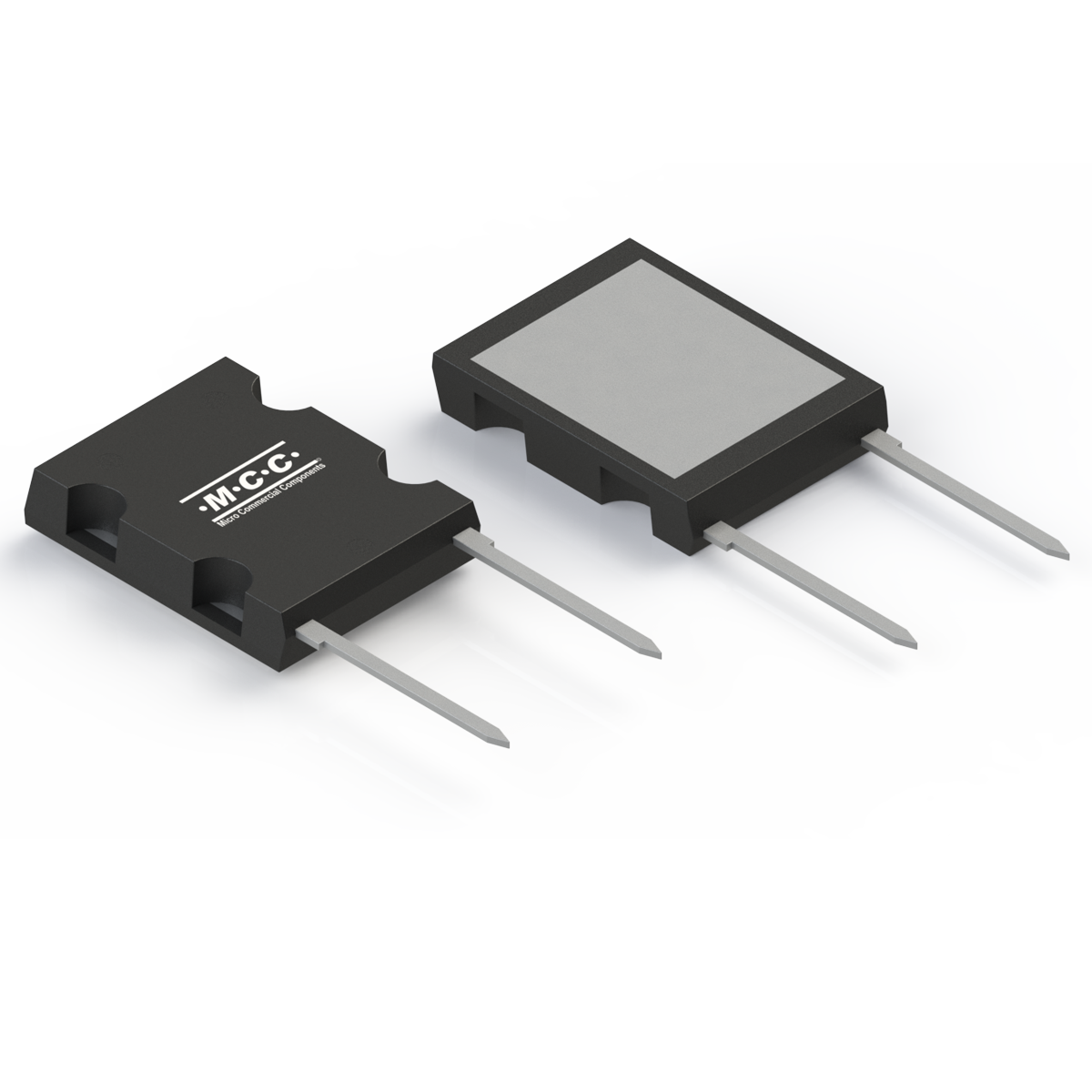

- Package Type:TO-264P
- Packing Info:Tube: 20pcs/Tube, 400pcs/Box, 2Kpcs/Ctn;
- Category:Standard Recovery Rectifiers
Product Detail
| Part Number | Number of Functions | IF(AV)(A) | VRWM (V) | VF (V) [max]@IF(A) |
IR (uA) [max] @ VR |
TRR (μs) | IFSM (A) | IF(A) | VR (V) | Tj [max] (°C) |
|---|---|---|---|---|---|---|---|---|---|---|
| GP12022 | Single | 120 | 2200 | 1.31 | 100 | 2200 | 120 | 2200 | 150 |
| Part Number GP12022 | Number of Functions Single | IF(AV)(A) 120 | VRWM (V) 2200 |
VF (V) [max]@IF(A) 1.31 |
IR (uA) [max] @ VR 100 |
TRR (μs) | IFSM (A) 2200 | IF(A) 120 | VR (V) 2200 |
Tj [max] (°C) 150 |
Packing Information
| Part Number | Package Type | Packing Specification | Component Weight (g) | Marking Code |
|---|---|---|---|---|
| GP12022 |
TO-264P
|
TO-264P | 0.0000 | GP12022 |
Environmental Information
Download
| MSL |
|---|
| N/A |
