Standard Recovery Rectifiers | Status :
Active

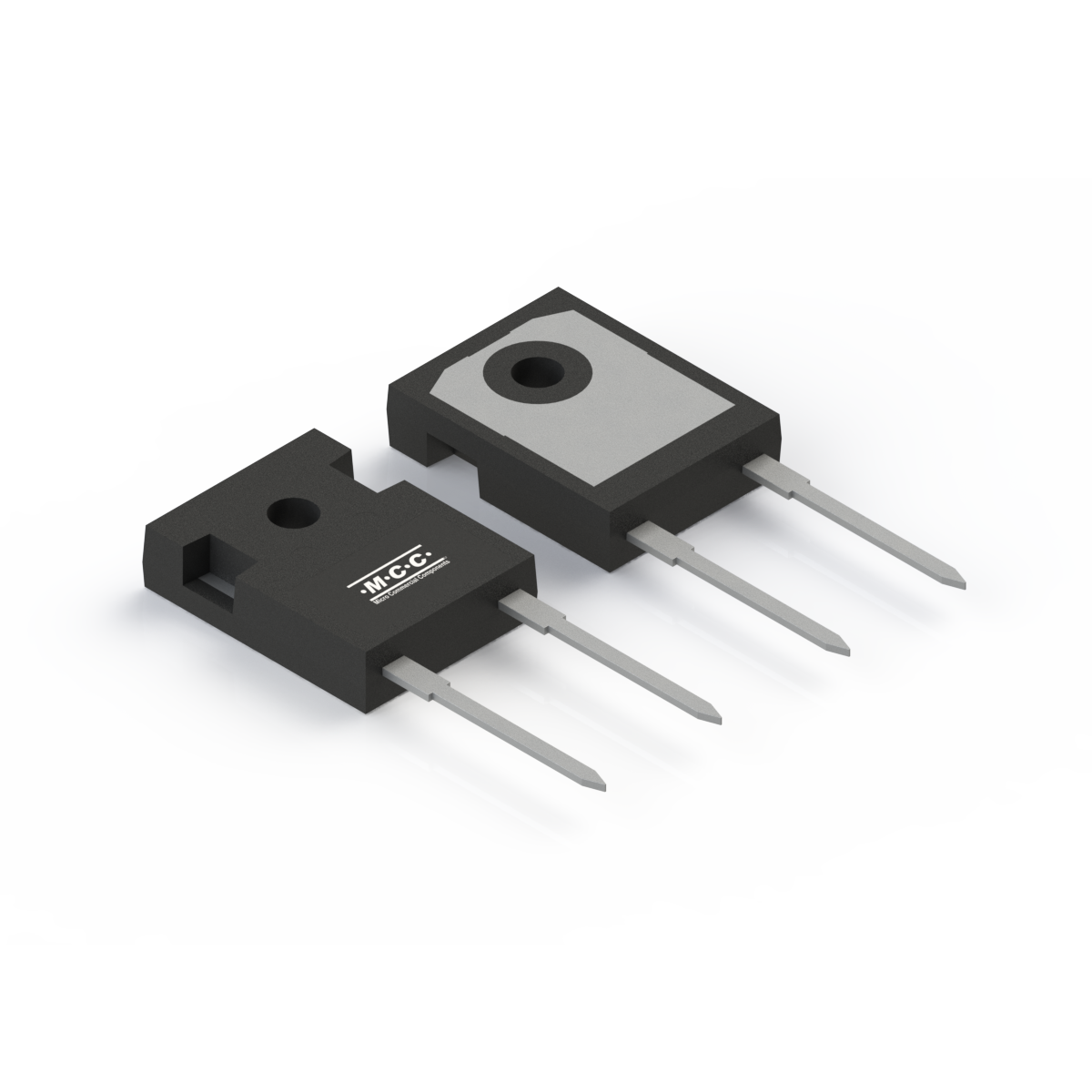

GP60220B
- Package Type:TO-247AD
- Packing Info:Bulk: 360pcs/Box;
- Category:Standard Recovery Rectifiers
Product Detail
| Part Number | Number of Functions | IF(AV)(A) | VRWM (V) | VF (V) [max]@IF(A) |
IR (uA) [max] @ VR |
TRR (μs) | IFSM (A) | IF(A) | VR (V) | Tj [max] (°C) |
|---|---|---|---|---|---|---|---|---|---|---|
| GP60220B | Single | 60 | 2200 | 1.3 | 5 | 800 | 30 | 2200 | 150 |
| Part Number GP60220B | Number of Functions Single | IF(AV)(A) 60 | VRWM (V) 2200 |
VF (V) [max]@IF(A) 1.3 |
IR (uA) [max] @ VR 5 |
TRR (μs) | IFSM (A) 800 | IF(A) 30 | VR (V) 2200 |
Tj [max] (°C) 150 |
Packing Information
Environmental Information
Download
| Tin Whisker Test Report | MSL |
|---|---|
|
N/A |
